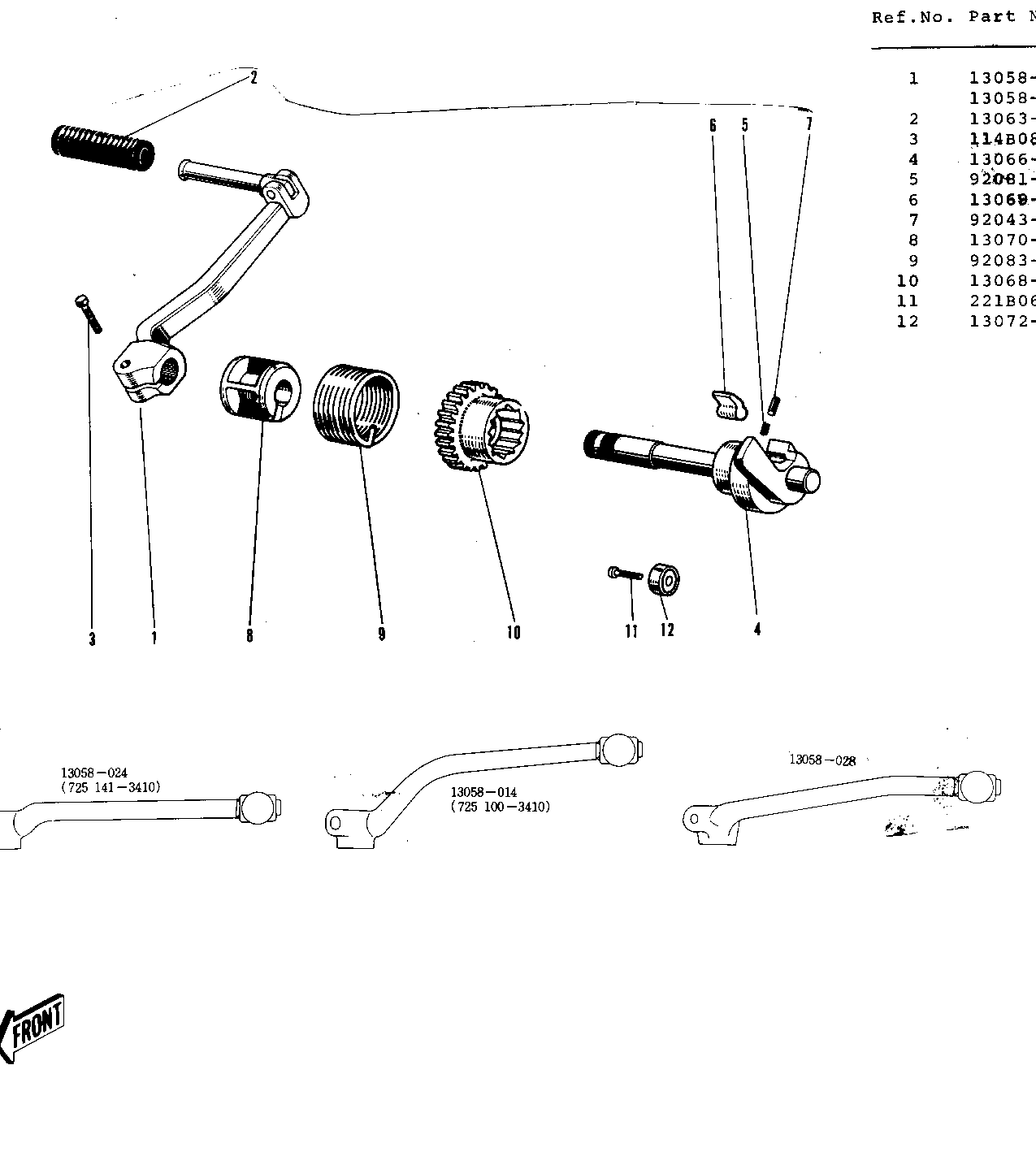

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-ASSY-KICK PEDAL 1 13064-1044
RUBBER KICK PEDAL 2 13063-004 1
BOLT-SMALL-UPSET 8X25 3 115G0825 1
SHAFT-KICK 4 13066-1022 1
SPRING KICK PAWL 5 92081-014 1
PAWL KICKSTARTER 6 13069-005 1
P/N,KICKSTARTER PAWL 7 92043-013 1
GUIDE KICK SPRING 8 13070-003 1
SPRING KICKSTARTER 9 92083-004 1
GEAR KICKSTARTER 10 13068-007 1
SCREW CNTSNK HD 6X20 11 221B0620 1
STOPPER KICKSTARTER 12 13072-003 1
