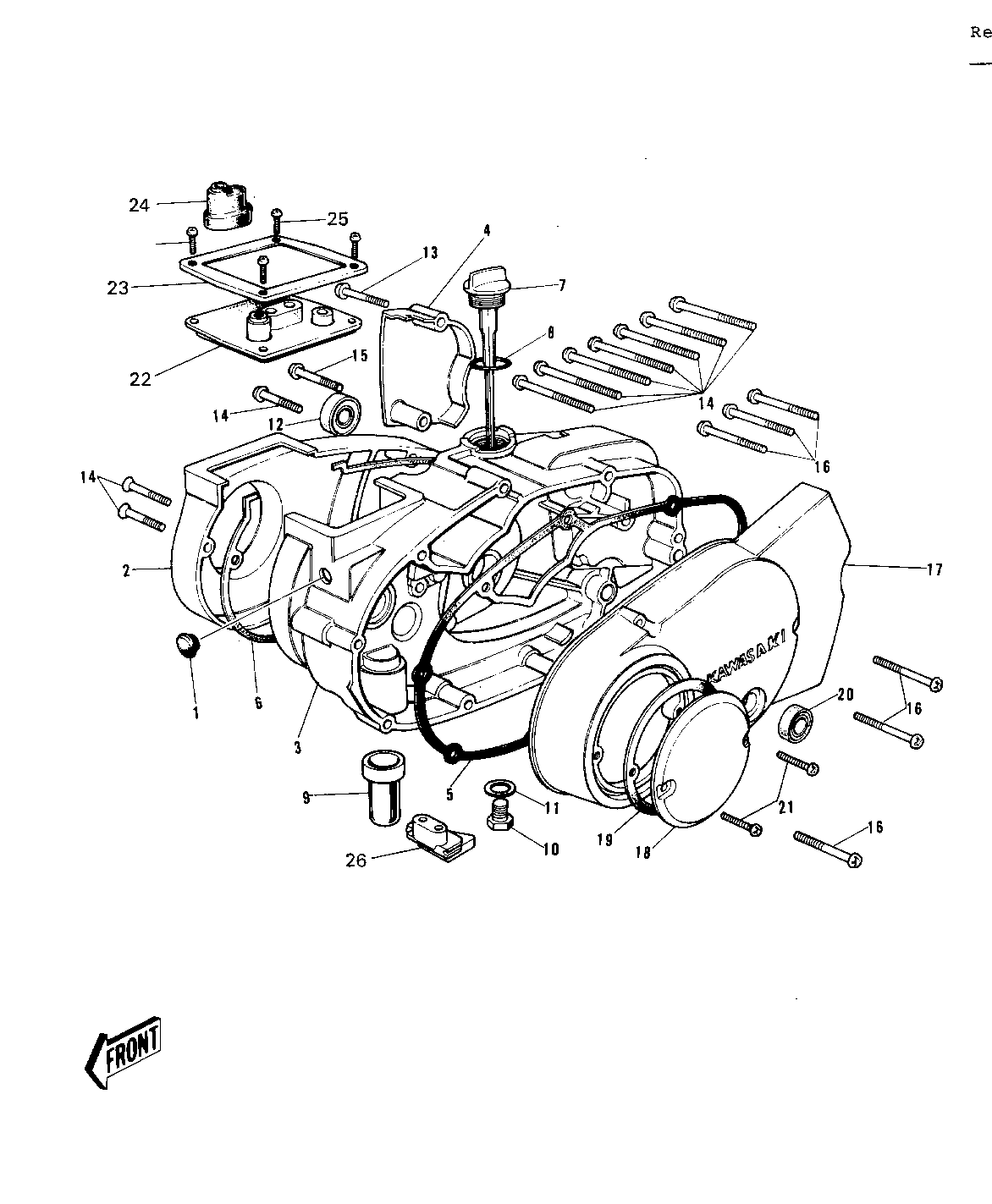

1969 G3SS - ENGINE COVERS (EXCEPT G3SS-C) ('69-'73)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP CARB MOUNT HOLE 1 14039-001 1
COVER CARBURETOR 2 14030-005 1
COVER-CARBRETR,SILVER 2 14030-037-15 G3SS-B
COVER R.H ENGINE 3 14032-049 1
COVER-R.H ENG,SILVER 3 14032-072-75 G3SS-B
COVER OIL PUMP 4 14030-006 1
GASKET,CLUTCH COVER 5 11060-1198 1
GASKET CARB COVER 6 14048-001 1
FILLER,OIL 7 16115-018 1
"0" RING,OIL FIL PLUG 8 92055-026 1
DRAIN FUEL 9 16116-002 1
PLUG OIL DRAIN 10 92067-001 1
GASKET CHECK VALVE 11 92065-058 1
OIL SEAL TB14257 12 653B142507 1
SCREW PAN HEAD 6X25 13 220B0625 1
SCREW PAN HEAD 6X30 14 220B0630 10
SCREW PAN HEAD 6X35 15 220B0635 1
SCREW PAN HEAD 6X45 16 220B0645 6
COVER-ENGINE,L.H 17 14031-040 1
COVER-BRK POINT,CR 18 14027-007-79 1
GASKET BREAKER COVER 19 14050-002 1
SEAL-OIL 20 92049-1249 1
SCREW PAN HEAD 6X12 21 220B0612 2
