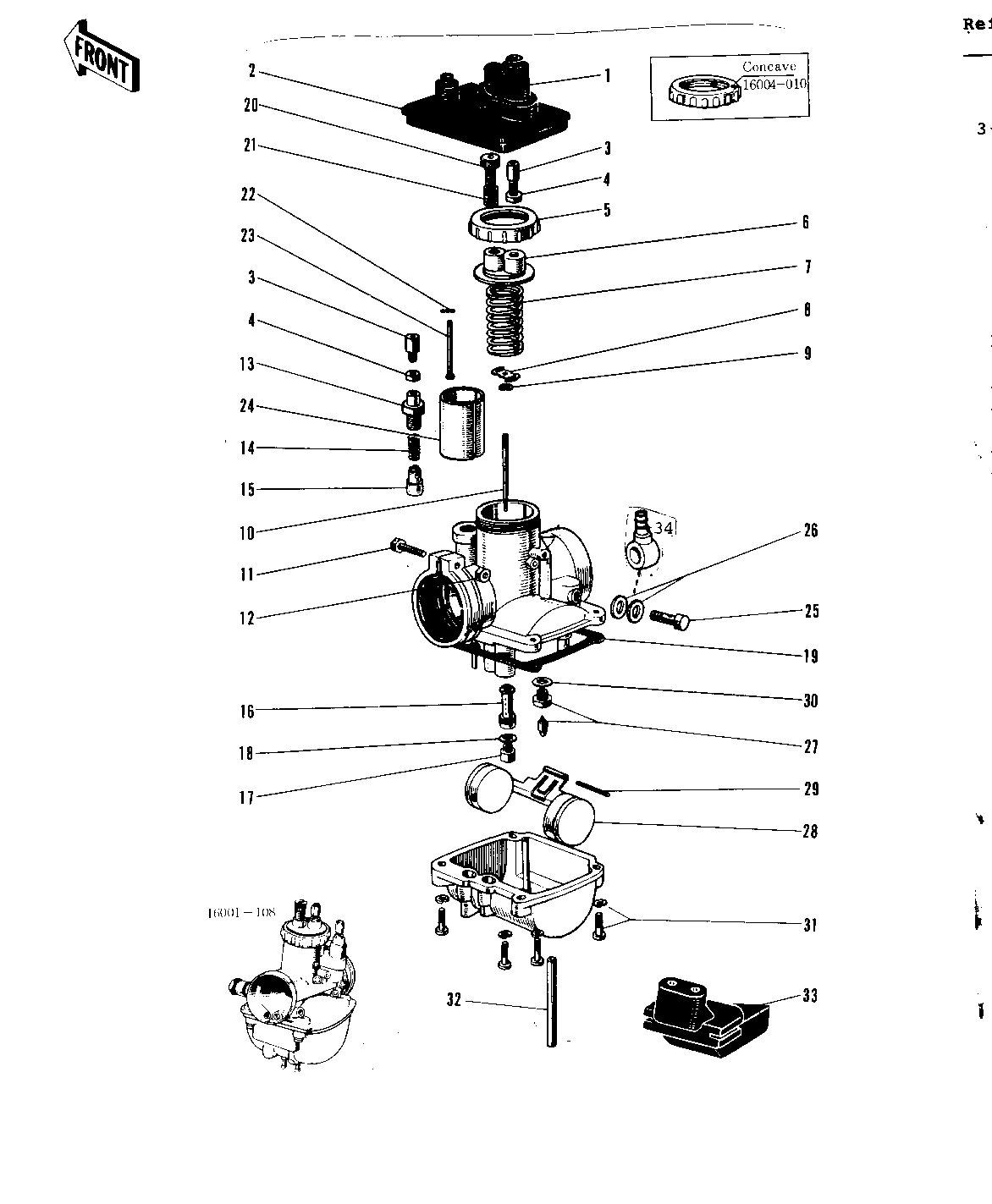

1969 G3SS - CARBURETOR ('69-'73)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GROMMET CARB CAP 1 14038-006 1
CAP CARBURETOR 2 14038-007 1
CARBURETOR ASSY 3~31 16001-108 1
CABLE ADJUSTER 3 16002-002 2
NUT CABLE ADJUST LOCK 4 16003-004 2
CAP-MIXING CHAMBER 5 16004-002 1
CAP MIXING CHAMBER 5 16004-010 1 METRIC THREAD
TOP MIXING CHAMBER 6 16005-005 1
SPRING THROTTLE VALVE 7 16006-013 1
SPRING SEAT THRTL VLV 8 16007-002 1
CIRCLIP 9 16008-010 1
JET NEEDLE 5I-2 10 16009-028 1
SCREW CLAMP 11 16010-004 1
NUT 6MM 12 311B0600 1
NUT 6MM 12 311B0600 AL
CAP STARTER PLUNGER 13 16012-004 1
SPRING-PLUNGER 14 16013-003 1
PLUNGER-ENRICHNER 15 16016-002 1
NEEDLE JET E-4 16 16017-035 1
MAIN JET NO 160M 17 92063-018 1
WASHER MAIN JET 18 16034-001 1
GASKET FLOAT CHAMBER 19 16019-012 1
SCREW,THROTTLE STOP 20 16021-002 1
SPRING THR STOP SCREW 21 16022-005 1
UNAVAILABLE IN PRICE BOOK 22 16023-001 1
ROD,THROTTLE VLV STP 23 16024-012 1
VALVE THROTTLE 24 16025-025 1
BOLT BANJO 25 92001-014 1
GASKET 8MM 26 751P0800 2
FLOAT VALVE ASSY 27 16030-009 1
FLOAT 28 16031-015 1
FLOAT PIN 29 16032-003 1
WASHER VALVE SEAT 30 16029-002 1
SCREW-FLOAT CHAMBER 31 16033-012 4 I.S.O. THREAD
PIPE FUEL OVERFLOW 32 92059-007 1
GROMMET OVERFLOW PIPE 33 16136-001 1 USE WITH 14032-049
CONNECTOR-BANJO 34 92061-019 1
