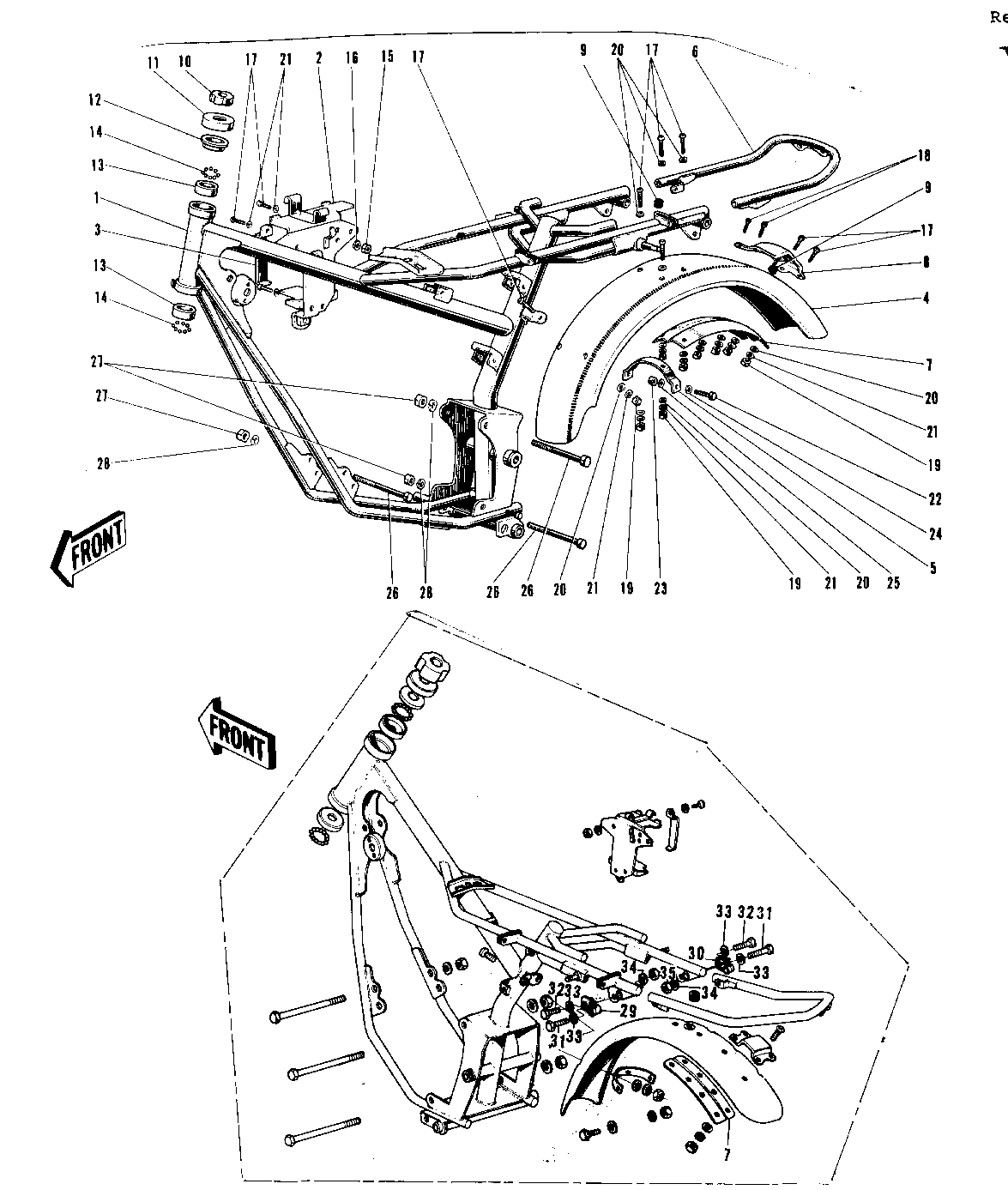

1969 G3SS - FRAME/FRAME FITTINGS ('69-'73)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME 1 32002-017 1
BRACKET BATTERY 2 32093-004 1
BAND BATTERY 3 32100-002 1
FENDER-RR 4 35022-037 1
BRACKET REAR FENDER 5 35025-002 1
STAY REAR FENDER 6 35032-015 1
GUSSET-REAR FENDER 7 35034-016 1
BRACKET TAIL LAMP 8 35031-001 1
GROMMET HARNESS 10MM 9 92071-019 2
NUT STEERING STEM LCK 10 92090-006 1
CAP STEERING STEM 11 46098-004 1
CONE UPPER BEARING 12 92047-005 1
RACE BEARING 13 92048-004 2
BALL STEEL 3/16' 14 600A0600 46
NUT,5MM 15 311B0500 1 OLD JIS THREAD
NUT,5MM 15 311B0500 1 I.S.O. THREAD
WASHER SPRING 5MM 16 461F0500 1
SCREW PAN HEAD 6X12 17 220B0612 8
SCREW PAN HEAD 6X14 18 220B0614 2
NUT 6MM 19 311B0600 11
WASHER PLAIN 6MM 20 410B0600 14
WASHER SPRING 6MM 21 461F0600 10
BOLT HEX HEAD 8X40 22 116B0840 2
NUT,8MM 23 311B0800 2
WASHER PLAIN 8MM 24 410B0800 2
WASHER SPRING 8MM 25 461F0800 2
BOLT,FLANGED,10X115 26 92001-1603 4
NUT,10MM 27 314B1000 4
WASHER SPRING 10MM 28 461F1000 4
BKT-RR SIG LAMP,L.H 29 23051-039 G3SS-C
BKT-RR SIG LAMP,R.H 30 23051-040 G3SS-C
BOLT,HEX HEAD,8X42 31 110N0842 G3SS-C
BOLT,HEX HEAD,8X38 32 110N0838 G3SS-C
WASHER PLAIN 8MM 33 410B0800 G3SS-C
WASHER SPRING 8MM 34 461F0800 G3SS-C
NUT,8MM 35 311B0800 G3SS-C
