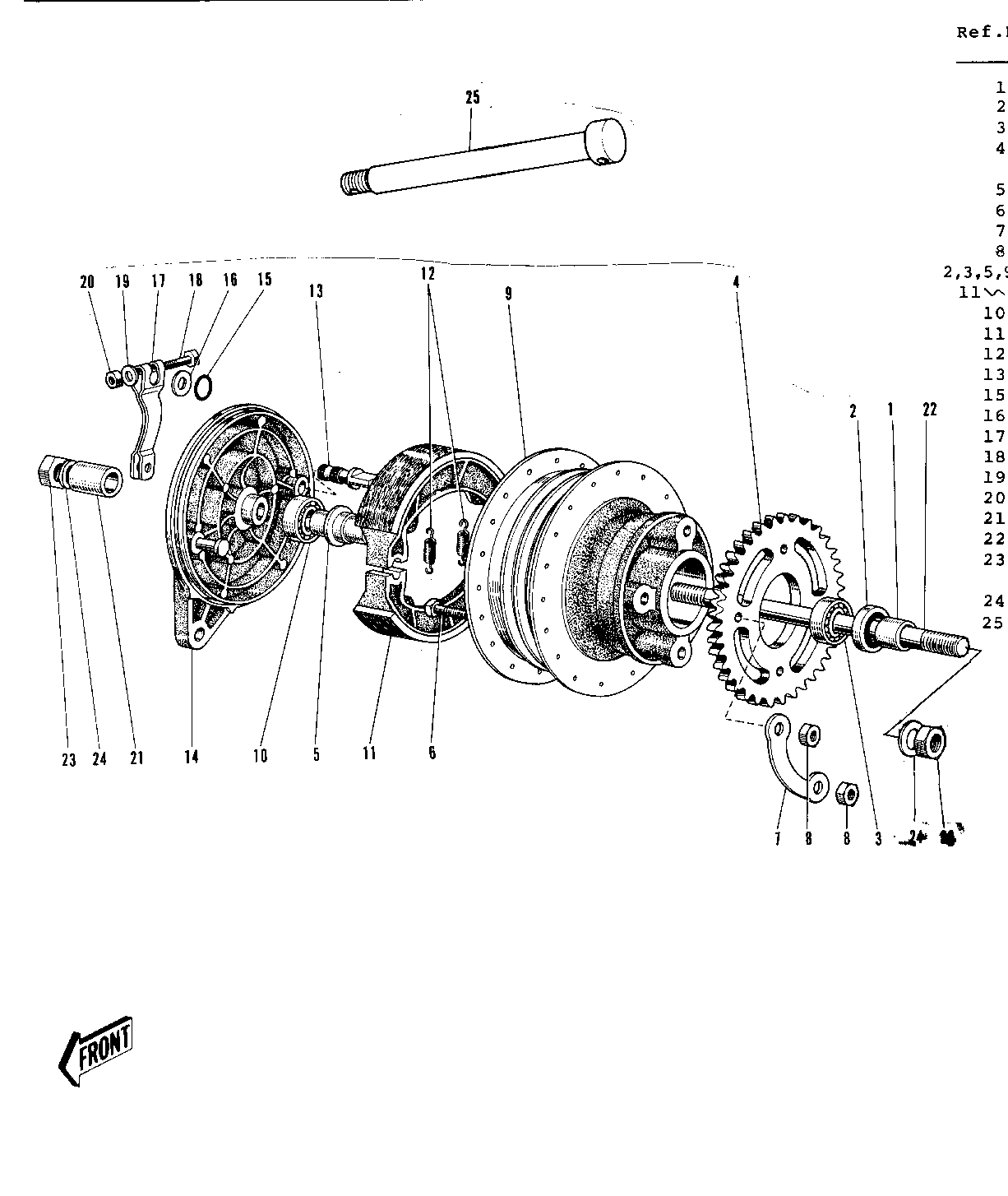

1969 G3SS - REAR HUB/BRAKE (G3SS/A/B/C) ('69-'73)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COLLAR REAR HUB L.H 1 42032-005 1
OIL SEAL RR BRK DRUM 2 92052-001 1
BEARING BALL #6301 3 601B6301 1
REAR SPROCKET 37T 4 42041-020
SPACER RR HUB BEARING 5 42010-003 1
BOLT REAR SPROCKET 6 92001-021 4
WASHER RR SPRCKT LOCK 7 92088-003 2
NUT,8MM 8 311B0800 4
DRUM ASSY REAR BRAKE 2,3,5, 42005-006 1
PANEL ASSY-REAR BRAKE 11~20 42006-014 1
BEARING BALL #6301Z 10 601B6301Z 1
SHOE-BRAKE 11 41048-1085 2
SPRING,BRAKE SHOE 12 92081-1766 2
CAM SHAFT-FRONT BRAKE 13 41050-018 1
"0" RING,11MM 15 92055-004 1
WASHER BRAKE CAM SHT 16 41052-001 1
LEVER,FRONT BRAKE CAM 17 41053-002 1
BOLT-UPSET 18 112G0630 1
WASHER PLAIN 6MM 19 410B0600 1
NUT 6MM 20 311B0600 1
COLLAR REAR HUB R.H 21 42032-006 1
AXLE REAR 22 42031-009 1
NUT,12MM 23 314G1200A 2 OLD JIS THREAD
NUT-HEX-FINE 23 314B1200 2 I.S.O. THREAD
WASHER PLAIN 12MM 24 410B1200 2
AXLE,12X206 25 41068-1091 1 G3SS-B
