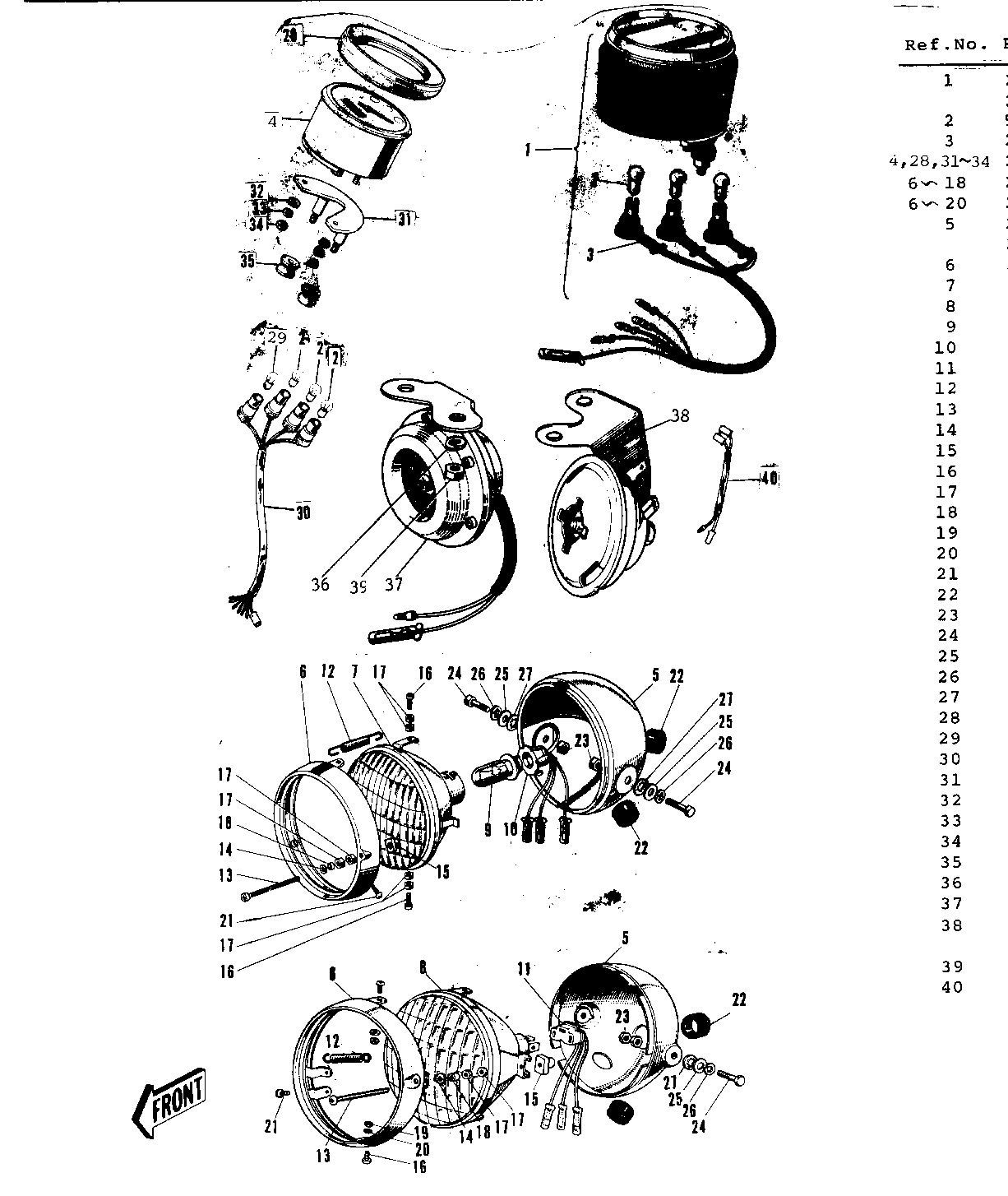

1969 G3SS - METER/HEADLIGHT ('69-'73)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPEEDOMETER ASSY MPH 1 25001-008 1 MILE/H INDICATOR
SPEEDOMETER ASSY,MPH 1 25001-050 G3SS-C
BULB 6V 1.5W 2 92069-024 3
SOCKET SPEEDOMETER 3 25011-008 1
SPEEDOMETER ASSY,MPH 4,28,3 25001-050 G3SS-C
LAMP UNIT HEAD 6~18 23004-011 1
LAMP UNIT HEAD 6~20 23003-009 1
UNAVAILABLE IN PRICE BOOK 5 23005-021 1
CASE-HEAD LAMP,BLACK 5 23005-021-21 1 G3-A
RIM HEAD LAMP 6 23006-020 1
LENS UNIT HEAD LAMP 7 23007-017 1
SEALED BEAM UNIT 8 23007-023 1
BULB 6V 25/25W 9 92069-031 1
SOCKET HEAD LAMP 10 23008-009 1
SOCKET ASSY,HD LIGHT 11 23008-044 1
SPRING LENS FITTING 12 23014-008 1
SCREW ADJUST 13 23019-013 1 I.S.O. THREAD
WASHER ADJUST 14 23021-007 1
NUT ADJUST 15 23020-012 1 I.S.O. THREAD
SCREW FITTING 16 23019-014 2 I.S.O. THREAD
NUT ADJUST 17 23020-013 6 I.S.O. THREAD
WASHER FITTING 18 23058-001 1
NUT,4MM 19 311B0400 2 I.S.O. THREAD
WASHER SPRING 4MM 20 461F0400 2
SCREW OVL CNTSNK 5X8 21 222E0508A 1
GROMMET WIRING HARNES 22 23023-007 2
NUT 10MM 23 92016-027 2
BOLT HEX HEAD 10X20 24 113N1020 2
WASHER PLAIN 10MM 25 411B1000 2
WASHER SPRING 10MM 26 461F1000 2
WASHER LOCK 10MM 27 463H1000 2
COVER-SPEEDOMETER 28 25012-003 G3SS-C
BULB-6V 3W 29 92069-053 G3SS-C
SOCKET-SPEEDOMETER 30 25011-025 G3SS-
BRACKET-SPEEDOMETER 31 25008-021 G3SS-C
WASHER PLAIN 5MM 32 410B0500 G3SS-C
WASHER SPRING 5MM 33 461F0500 G3SS-C
NUT,5MM 34 311B0500 G3SS-C
DAMPER RUBB SPEEDMETR 35 92075-024 G3SS-C
WASHER SPRING 6MM 36 461F0600 3
HORN 37 27003-009 1
HORN 38 27003-055 1
HORN 38 27003-055 1
NUT 6MM 39 311B0600 3
LEAD WIRE,HORN 40 26002-023 G3SS-C
