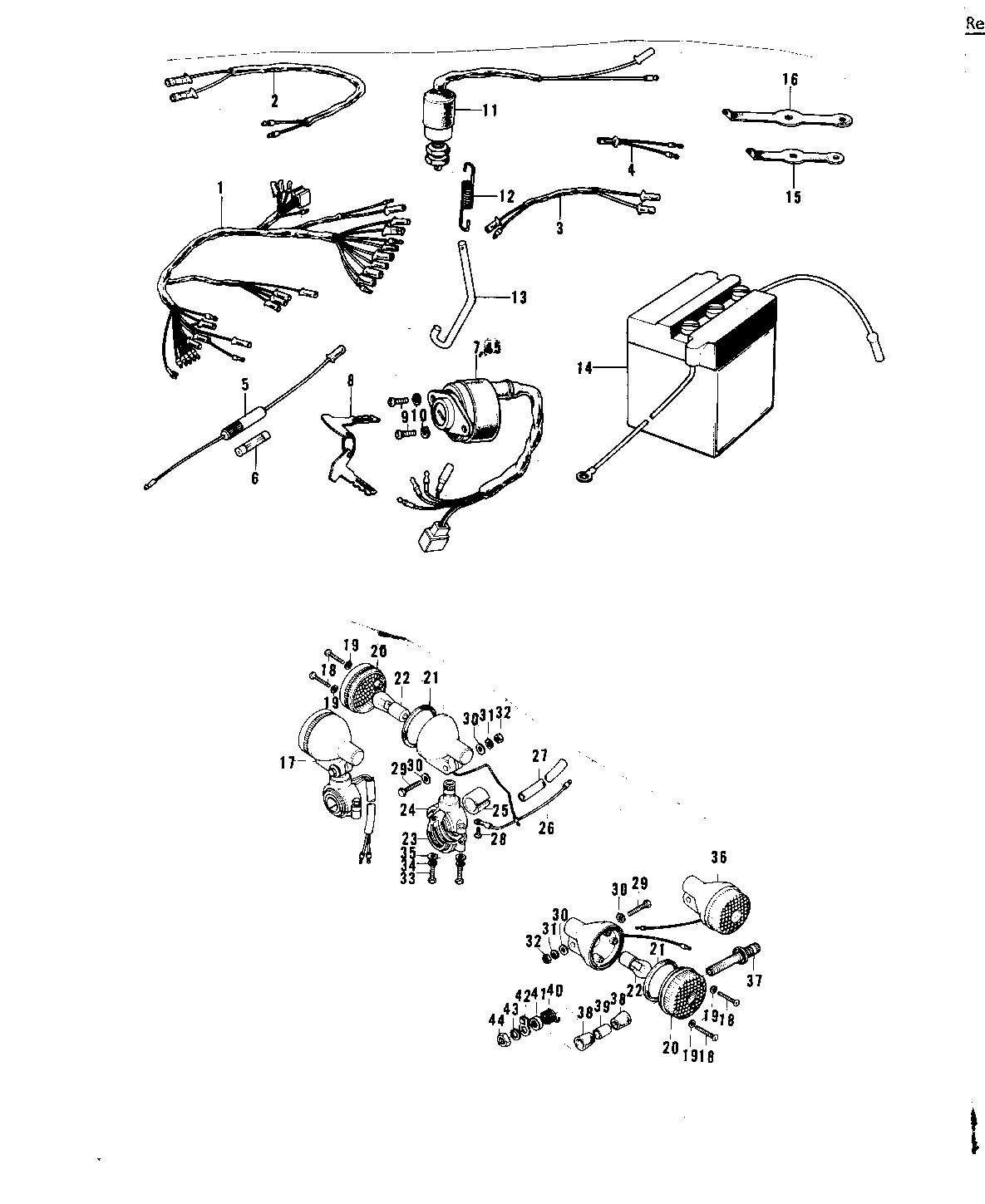

1969 G3SS - CHASSIS ELECTRICAL EQUIPMENT (G3SS-C) ('

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WIRING HARNESS-MAIN 1 26001-079 1
WIRING HARNESS REAR 2 26002-007 1
LEAD WIRE 3 26011-042 1
WIRE-LEAD 4 26011-058 1
FUES ASSY 5,6 26004-008 1
FUSE 10A 6 26006-003 2
SWITCH ASSY,IGNITION 7,8 27005-1016 1
KEY SET NO.321 8 27008-034-21 1
KEY SET NO.322 8 27008-034-22 1
KEY SET NO.323 8 27008-034-23 1
KEY SET NO.324 8 27008-034-24 1
KEY SET NO.235 8 27008-034-35 1
KEY SET NO.236 8 27008-034-36 1
KEY SET NO.237 8 27008-034-37 1
KEY SET NO.238 8 27008-034-38 1
KEY SET NO.239 8 27008-034-39 1
SCREW PAN HEAD 5X12 9 220B0512 2
WASHER SPRING 5MM 10 461F0500 2
SWITCH-BRAKE LAMP 11 27010-018 1
SPRING BRAKE LAMP SW 12 27011-006 1
SPRING BRAKE LAMP SW 13 27012-005 1
YUA BAT 6N4-2A-5 14 K26012-020 1
BAND,MIDDLE 15 92072-031 3
BAND,LONG 16 92072-032 3
LAMP ASY-FR TURN SIG 17 23037-005 2
SCREW-PAN HEAD,4X20 18 220E0420A 8
WASHER-PLAIN,4MM 19 23058-002 8
LENS,TURN SIGNAL LAMP 20 23048-1001 4
GASKET-SIG LAMP LENS 21 23050-003 4
BULB,6V 21CP 22 92069-056 4
BRACKET,SIGNAL LAMP 23 23051-1013 2
BRACKET,FRNT TURN SIG 24 23051-1004 2
DAMPER RUBBER 25 23066-003 2
WIRE-TURN SIGNAL LEAD 26 26011-061 2
COVER-WIRING HARNESS 27 26009-004 2
SCREW PAN HEAD 3X5 28 220B0305A 2
BOLT-UPSET 29 112G0630 4
WASHER PLAIN 6MM 30 410B0600 8
WASHER SPRING 6MM 31 461F0600 4
NUT 6MM 32 311B0600 4
BOLT 33 110N0516 4
WASHER SPRING 5MM 34 461F0500 2
WASHER-PLAIN,5MM 35 410D0500 4
LAMP-REAR TURN SIGNAL 36 23040-033 2
BRACKET-TURN SIG LAMP 37 23051-041 2
DAMPER RUBBER 38 92075-148 4
COLLAR 12.7X17.3X30 39 92027-168 2
SPRING 40 92081-111 2
WASHER CUP 12.5X35X4T 41 92022-235 2
CLAMP-RR SIGNAL LAMP 42 92037-087 2
WASHER SPRING 12MM 43 461F1200 2
NUT-HEX-FINE,12MM 44 315B1200 2
KEY,BLANK 45 27008-1016 1
KEY,BLANK 45 27008-1017 1
KEY,BLANK 45 27008-1018 1
KEY,BLANK 45 27008-1019 1
