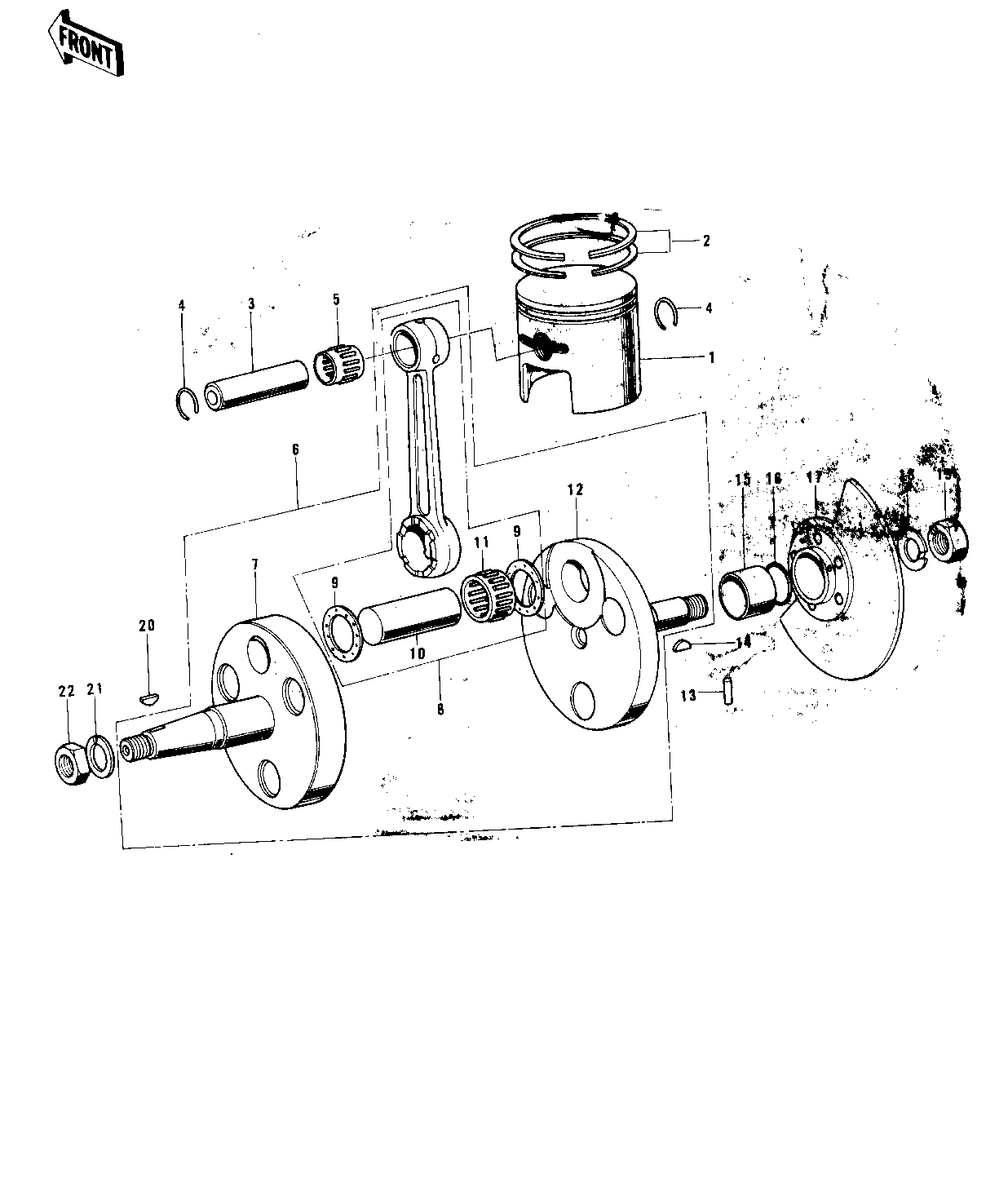

1969 G3SS - CRANKSHAFT/PISTON/ROTARY VALVE ('74-'75)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON,STD 1 13001-061 1 90CC
PISTON,STD 1 13001-057 1 G3SSE 100CC
PISTON,0.020 O/S 1 13029-061 (1 90CC
PISTON.0.020 O.S 1 13029-059 1 G3SSE 100CC
PISTON,0.040 O/S 1 13027-059 (1 90CC
PISTON,0.040 O-S 1 13027-057 1 G3SSE 100CC
RING SET,STD 2 13008-047 1 90CC
RING SET,STD 2 13008-043 1 G3SSE 100CC
RING SET,0.020 O/S 2 13025-051 (1 90CC
RING NET,0.020 O.S 2 13025-047 1 G3SSE 100CC
RING SET,0.040 O/S 2 13024-052 (1 90CC
RING NET,0.040 O.S 2 13024-050 1 G3SSE 100CC
PIN-PISTON 3 13002-003 1
CIRCLIP PISTON PIN 4 92036-003 2
BEARING,SMALL END 5 13033-030 1 KTV141817
CRANK&CONROD ASSY 6 13036-043 1
CRANKSHAFT,L.H 7 13037-053 1
CONNECTING ROD SET 8 13044-5015 1
WASHER-SIDE 9 92025-047 2
CRANK PIN 10 13035-025 1
BEARING,BIG END 11 13034-034 1 KT192612
CRANK SHAFT,R.H 12 13038-049 1
PIN DOWEL 4X10 13 610A0410 1
WOODRUFF KEY PRY PINI 14 92038-003 1
COLLAR CRANKSHAFT 15 92027-022 1
"0" RING,16MM 16 670B2016 1
VALVE ROTARY DISC 17 12001-004 1
WASHER LOCK 12MM 18 92024-003 1
NUT 12MM 19 92015-006 1
WOODRUFF KEY 20 510A3200 1
WASHER SPRING 10MM 21 461F1000 1
NUT,10MM 22 314B1000 1
