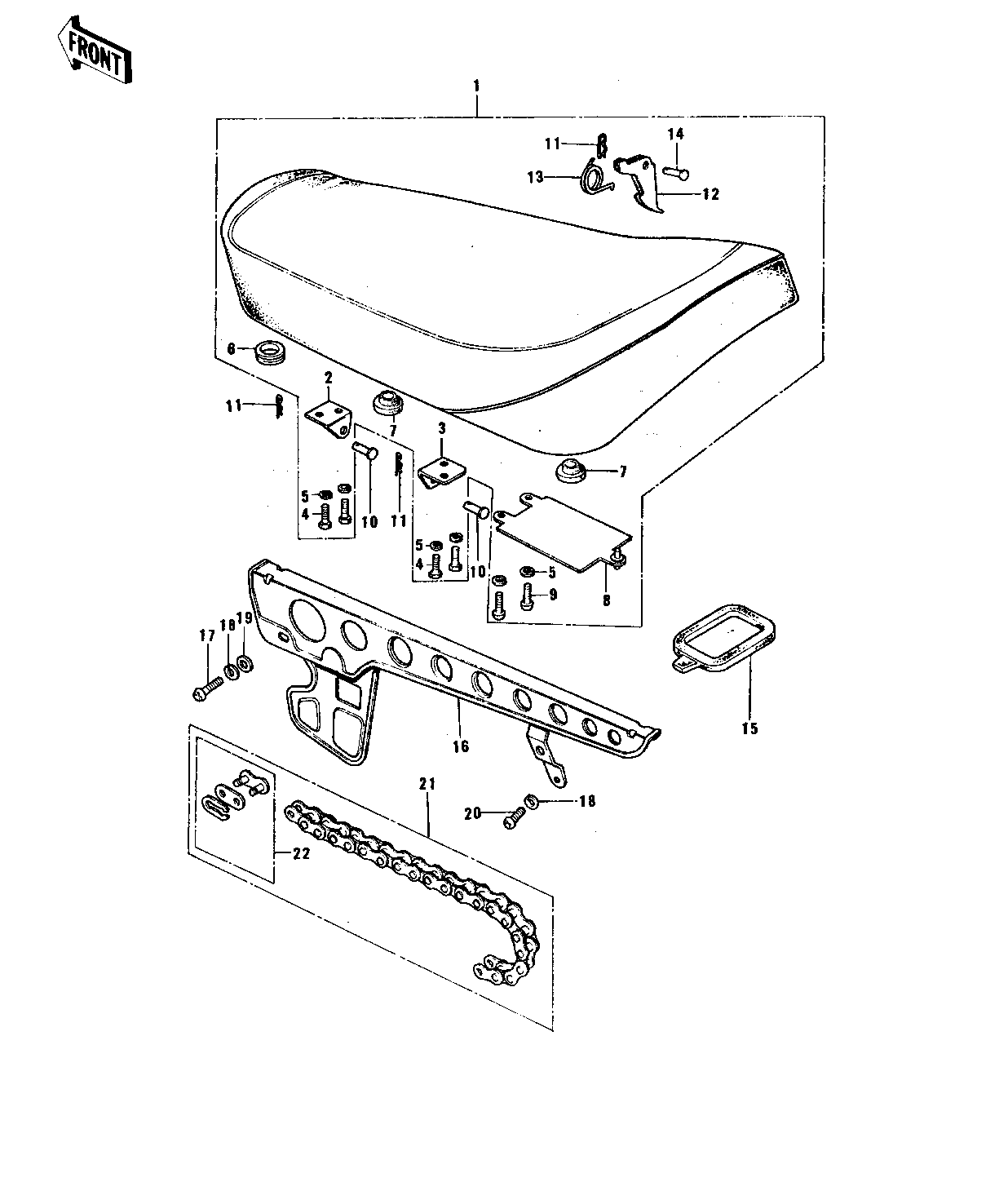

1969 G3SS - SEAT/CHAIN COVER/CHAIN ('74-'75)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SEAT-ASSY,DUAL | 1 | 53001-099 | 1 | ||
| HINGE,FRONT | 2 | 53009-024 | 1 | ||
| HINGE,REAR | 3 | 53009-023 | 1 | ||
| BOLT-UPSET 6X14 | 4 | 112B0614 | 4 | ||
| BOLT-UPSET 6X14 | 4 | 112B0614 | AL | ||
| WASHER SPRING 6MM | 5 | 461F0600 | 6 | ||
| GROMMET | 6 | 92071-056 | 1 | ||
| DAMPER RUBB DUAL SEAT | 7 | 92075-023 | 4 | ||
| CASE | 8 | 32099-011 | 1 | ||
| SCREW PAN HEAD 4X8 | 9 | 220B0408 | 2 | ||
| PIN-BRAKE CABLE FIT | 10 | 92043-092 | 2 | L=14M/M | |
| COTTER PIN | 11 | 92041-003 | 3 | ||
| HOOK-SEAT | 12 | 53008-017 | 1 | ||
| SPRING,HOOK | 13 | 53012-011 | 1 | ||
| PIN,DUAL SEAT PIVOT | 14 | 92043-106 | 1 | L=24M/M | |
| BAND-CHAIN OILER TANK | 15 | 92072-039 | 1 | ||
| CASE-CHAIN | 16 | 36014-052 | 1 | ||
| SCREW PAN HEAD 5X8 | 17 | 220B0508 | 1 | ||
| WASHER SPRING 5MM | 18 | 461F0500 | 2 | ||
| WASHER PLAIN 5MM | 19 | 410B0500 | 1 | ||
| SCREW PAN HEAD 5X12 | 20 | 220B0512 | 1 | ||
| *** N.L.A.*** (Canada) | 21 | 695W43104 | 1 | ||
| JOINT-CHAIN | 22 | 92058-1014 | 1 |
