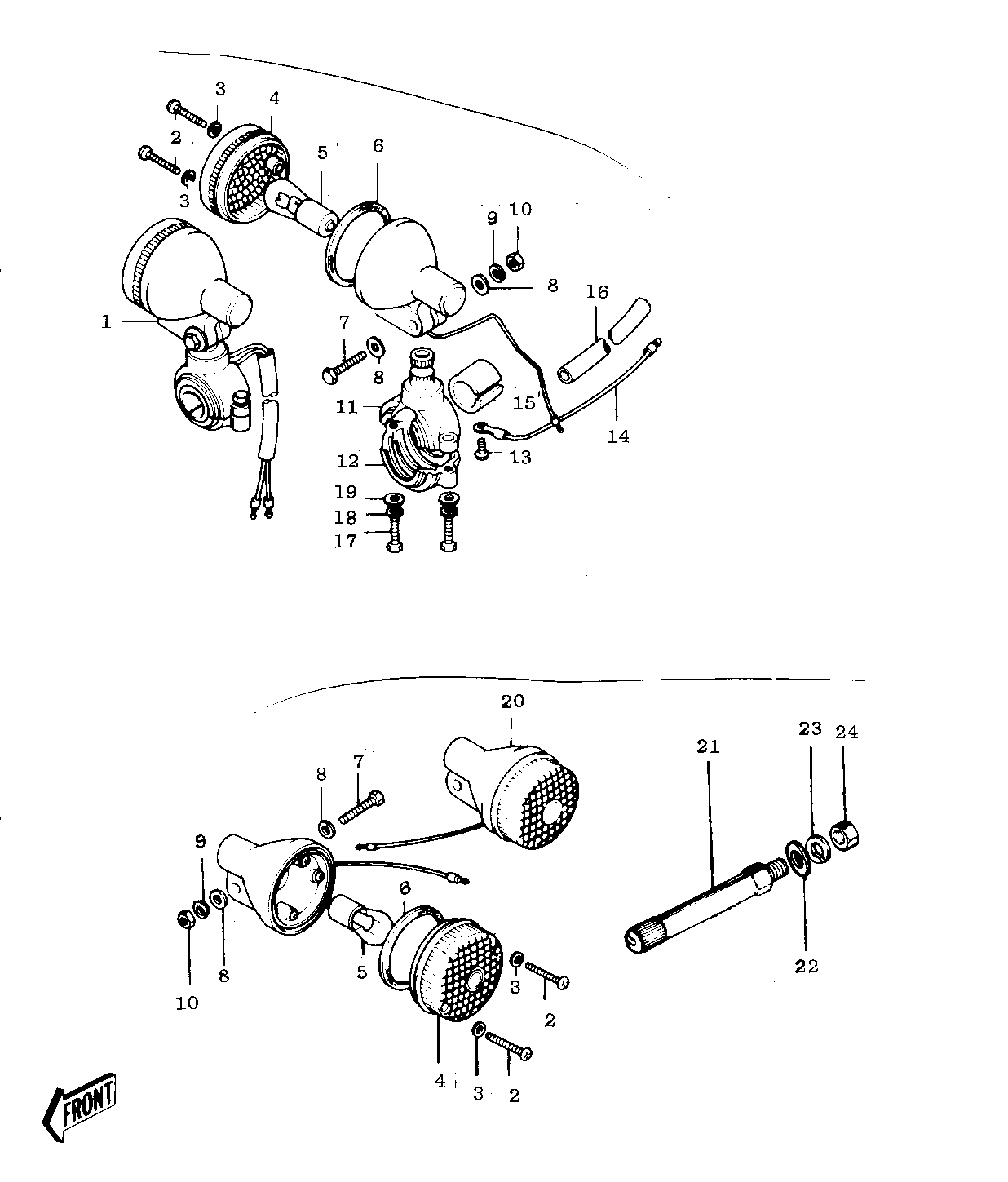

1969 Bushmaster - TURN SIGNALS ('74-'75)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP ASY-FR TURN SIG 1 23037-005 2
SCREW-PAN HEAD,4X20 2 220E0420A 8
WASHER-PLAIN,4MM 3 23058-002 8
LENS,TURN SIGNAL LAMP 4 23048-1001 4
BULB,6V 21CP 5 92069-056 4
GASKET-SIG LAMP LENS 6 23050-003 4
BOLT-UPSET 7 112G0630 4
WASHER-PLAIN,6MM 8 411D0600 8
WASHER SPRING 6MM 9 461F0600 4
NUT 6MM 10 311B0600 4
BRACKET,FRNT TURN SIG 11 23051-1004 2
BRACKET,SIGNAL LAMP 12 23051-1013 2
SCREW PAN HEAD 3X5 13 220B0305A 2
WIRE-TURN SIGNAL LEAD 14 26011-061 2
DAMPER RUBBER 15 23066-003 2
COVER-WIRING HARNESS 16 26009-004 2
BOLT 17 110N0516 4
WASHER SPRING 5MM 18 461F0500 4
WASHER-PLAIN,5MM 19 410D0500 4
LAMP ASSY,TURN SIGNAL 20 23040-038 2
BRACKET,TURN SIGNAL 21 23051-047 2
WASHER PLAIN 12MM 22 411B1200 2
WASHER SPRING 12MM 23 461F1200 2
NUT,12MM 24 311B1200 2
