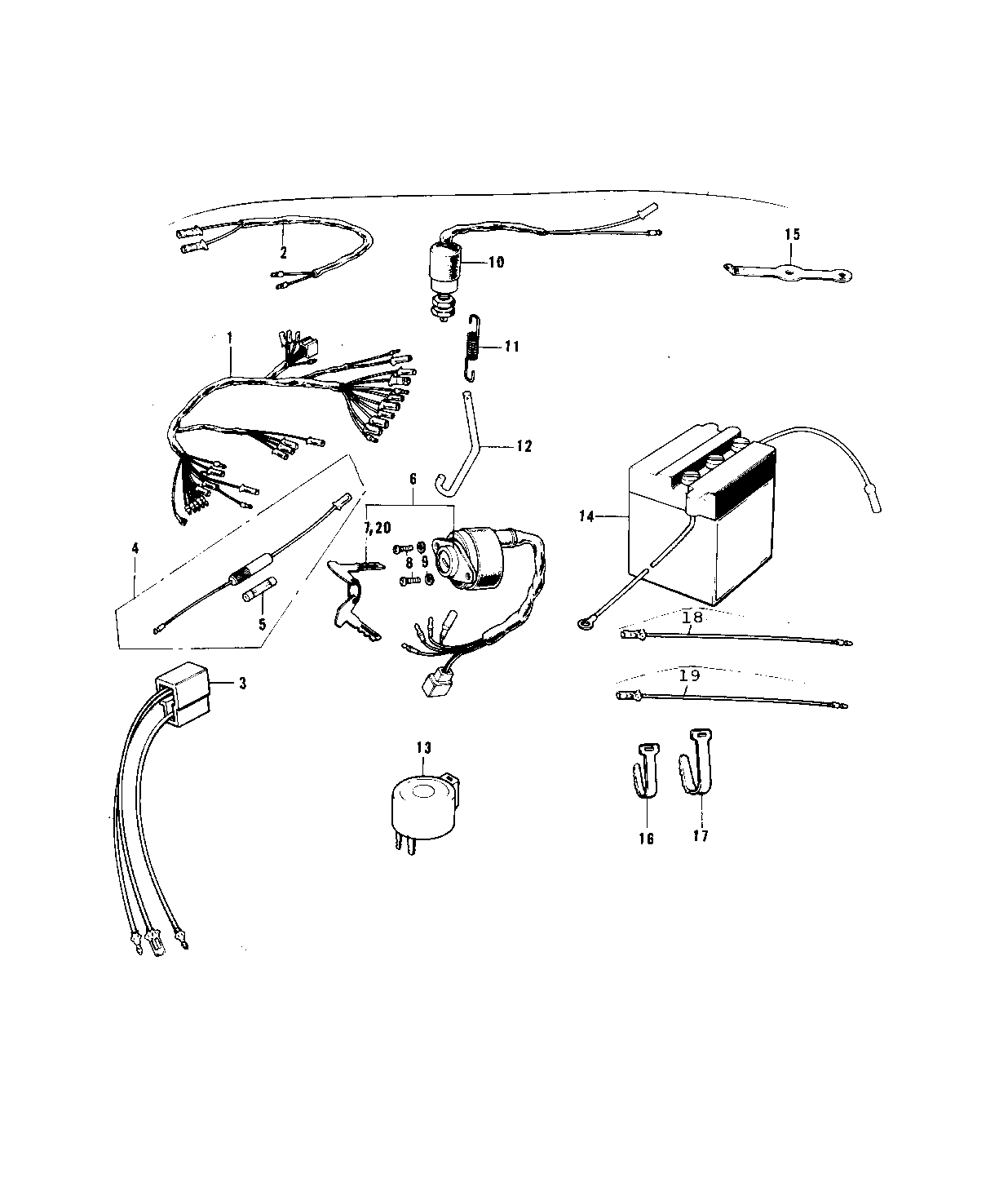

1969 G3SS - CHASSIS ELECTRICAL EQUIPMENT ('74-'75)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WIRING HARNESS,MAIN 1 26001-114 1
WIRING HARNESS,MAIN 1 26001-126 1 G3SSE
WIRING HARNESS-REAR 2 26002-030 1
WIRE,RECTIFIER LEAD 3 26011-072 1
FUES ASSY 4 26004-008 1
FUSE 10A 5 26006-003 1
SWITCH ASSY,IGNITION 6 27005-1016 1
KEY SET NO.321 7 27008-034-21 1
KEY SET NO.322 7 27008-034-22 1
KEY SET NO.323 7 27008-034-23 1
KEY SET NO.324 7 27008-034-24 1
KEY SET NO.235 7 27008-034-35 1
KEY SET NO.236 7 27008-034-36 1
KEY SET NO.237 7 27008-034-37 1
KEY SET NO.238 7 27008-034-38 1
KEY SET NO.239 7 27008-034-39 1
KEY SET NO.140 7 27008-034-40 1
KEY SET NO.141 7 27008-034-41 1
KEY SET NO.142 7 27008-034-42 1
KEY SET NO.143 7 27008-034-43 1
SCREW PAN HEAD 5X12 8 220B0512 2
WASHER SPRING 5MM 9 461F0500 2
SWITCH-BRAKE LAMP 10 27010-018 1
SWITCH-BRAKE LAMP 10 27010-018 1 G3SSE
SPRING BRAKE LAMP SW 11 27011-006 1
HOOK, BRAKE L;AMP SWITCH SPRING 12 27012-005 1
RELAY-TURN SIGNAL 13 27002-013 1
YUA BAT 6N4-2A-5 14 K26012-020 1
BAND RUBBER 15 92072-018 1 LARGE
BAND,MIDDLE 16 92072-031 3 MIDDLE
BAND,LONG 17 92072-032 2 LARGE
WIRE-LEAD 18 26011-032 2 CANADIAN USE ONLY
WIRE-LEAD 19 26011-032 1 CANADIAN USE ONLY
KEY,BLANK 20 27008-1016 1
KEY,BLANK 20 27008-1017 1
KEY,BLANK 20 27008-1018 1
KEY,BLANK 20 27008-1019 1
