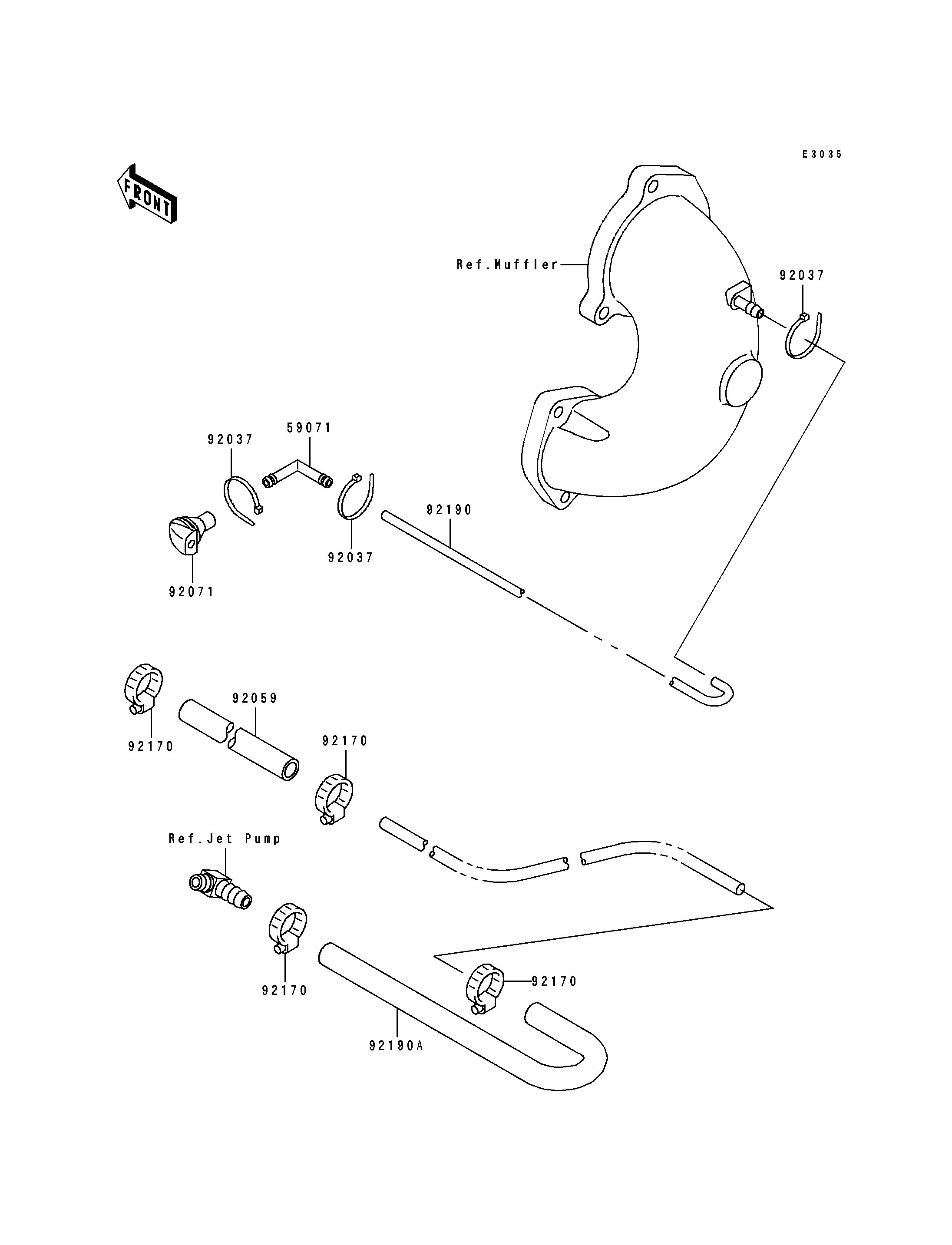

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
JOINT 59071 59071-3706 1
CLAMP 92037 92037-1173 3
TUBE,9X16X320 92059 92059-3792 1
GROMMET 92071 92071-3732 1
CLAMP 92170 92170-3718 4
TUBE,5.8X10.8X650 92190 92190-3917 1
TUBE,9X16X360 92190A 92190-3918 1
