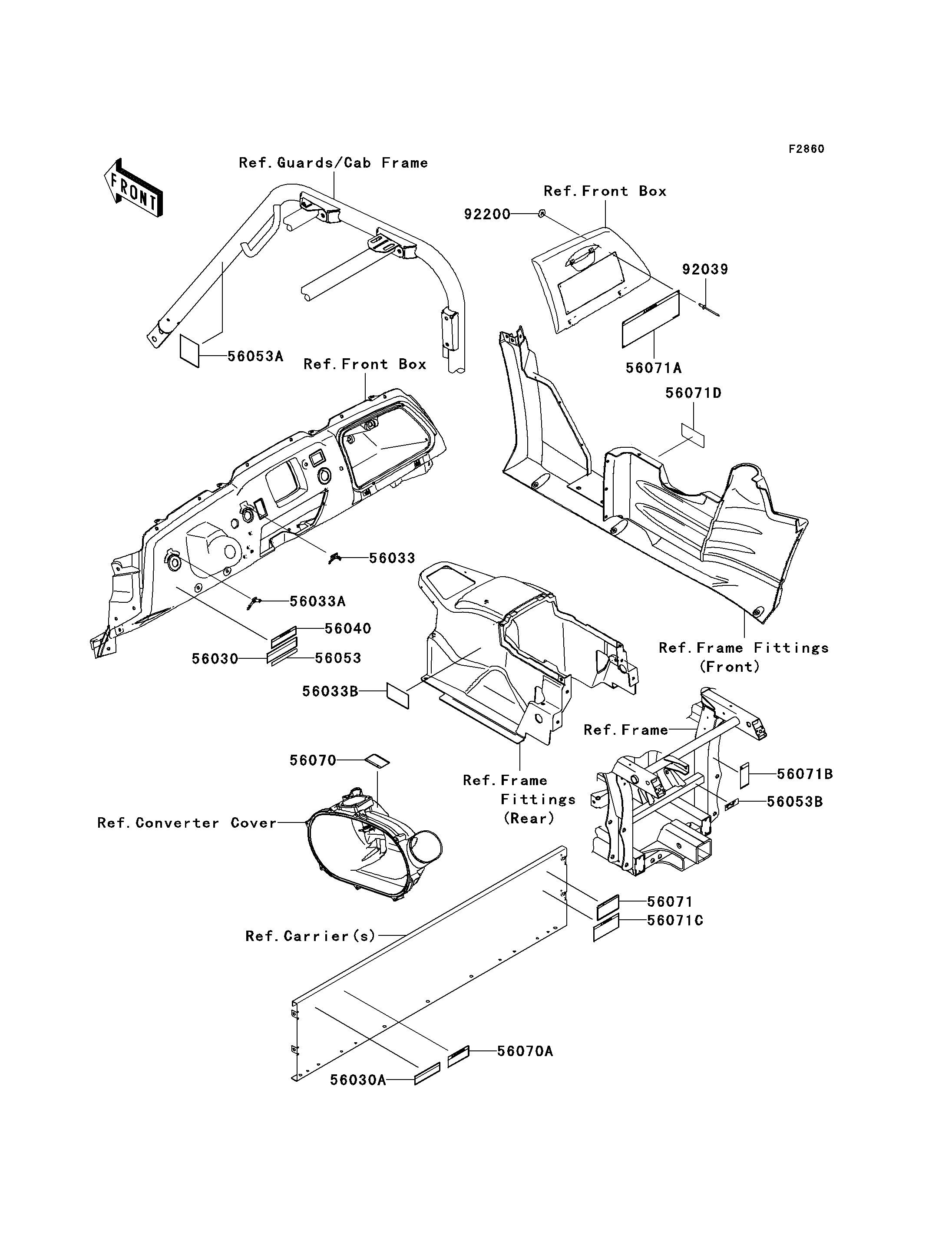

2008 Teryx® 750 4x4 NRA OUTDOORS™ - Labels
56030
56030A
56033
56033A
56033B
56040
56053
56053A
56053B
56070
56070A
56071
56071A
56071B
56071C
56071D
92039
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,PARKING LEVER | 56030 | 56030-0213 | 1 | ||
| LABEL,CAUTION | 56030A | 56030-0240 | 1 | ||
| LABEL-MANUAL,MAIN SWITCH | 56033 | 56033-0190 | 1 | ||
| LABEL-MANUAL,HEAD LAMP SWITCH | 56033A | 56033-0228 | 1 | ||
| LABEL-MANUAL,DRIVE BELT | 56033B | 56033-0236 | 1 | ||
| LABEL-WARNING,SHIFT CAUTION | 56040 | 56040-1342 | 1 | ||
| LABEL-SPECIFICATION | 56053 | 56053-0278 | 1 | ||
| LABEL-SPECIFICATION,TIRE INFO | 56053A | 56053-0338 | 1 | ||
| LABEL,TRAILER HITCH | 56053B | 56053-0348 | 1 | ||
| LABEL-WARNING,CVT COVER | 56070 | 56070-1269 | 1 | ||
| LABEL-WARNING,BED RAISED | 56070A | 56070-7515 | 1 | ||
| LABEL-WARNING | 56071 | 56071-0048 | 1 | ||
| LABEL-WARNING,SERIOUS INJURY | 56071A | 56071-0068 | 1 | ||
| LABEL-WARNING,TRAILER HITCH | 56071B | 56071-0099 | 1 | ||
| LABEL-WARNING,CARGO BED | 56071C | 56071-0113 | 1 | ||
| LABEL-WARNING,GASOLINE | 56071D | 56071-7501 | 1 | ||
| RIVET,3.2X8 | 92039 | 92039-3763 | 4 | ||
| WASHER,3.5X8X1 | 92200 | 92200-1251 | 4 |
