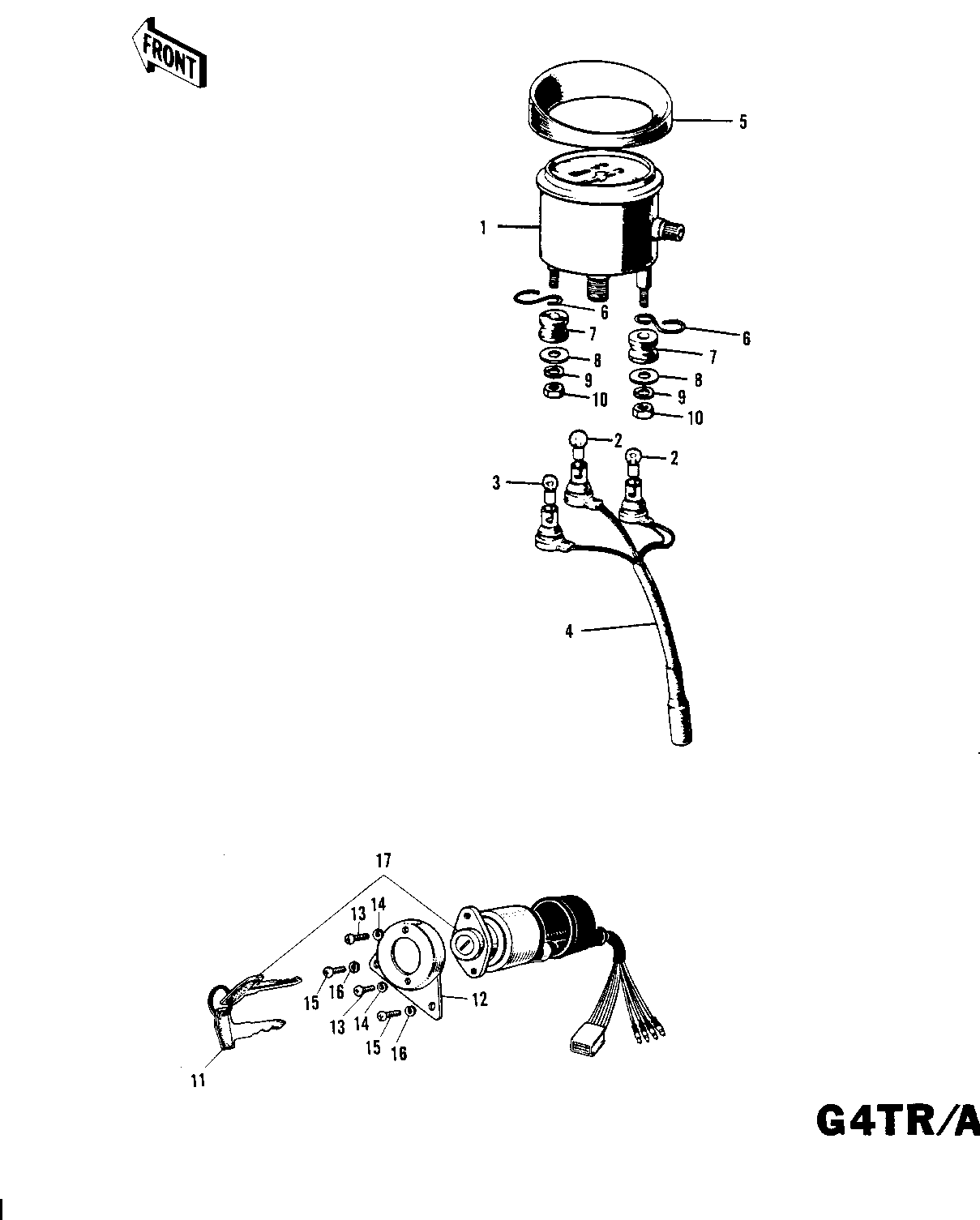

1970 Trail Boss - METER/IGNITION SWITCH G4TR/A/B ('70-'73)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPEEDOMETER ASSY MPH 1 25005-039 1
BULB 6V 1.5W 2 92069-024 2
BULB-6V 3W 3 92069-053 1
SOCKET SPEEDOMETER 4 25011-013 1
COVER-SPEEDOMETER 5 25012-005 1 G4TR-B
CLAMP CABLE 6 25022-002 2
DAMPER RUBB SPEEDMETR 7 92075-024 2
WASHER 6.5X20X1.6T 8 92022-125 2
WASHER SPRING 6MM 9 461F0600 2
NUT 6MM 10 311B0600 2
KEY SET NO.235 11 27008-034-35 X
KEY SET NO.239 11 27008-034-39 X
KEY SET NO.321 11 27008-034-21 X
KEY SET NO.324 11 27008-034-24 X
KEY,BLANK 11 27008-1016 X
KEY,BLANK 11 27008-1017 X
KEY,BLANK 11 27008-1018 X
KEY,BLANK 11 27008-1019 X
HOUSING IGNITION SW 12 27009-007 1 G4TR/A
SCREW PAN HEAD 5X12 13 220B0512 2
WASHER SPRING 5MM 14 461F0500 2
SCREW PAN HEAD 6X12 15 220E0612 2 G4TR/A
WASHER SPRING 6MM 16 461F0600 2 G4TR/A
SWITCH ASSY,IGNITION 17 27005-1016 1
SWITCH ASSY,IGNITION 17 27005-1016 1
