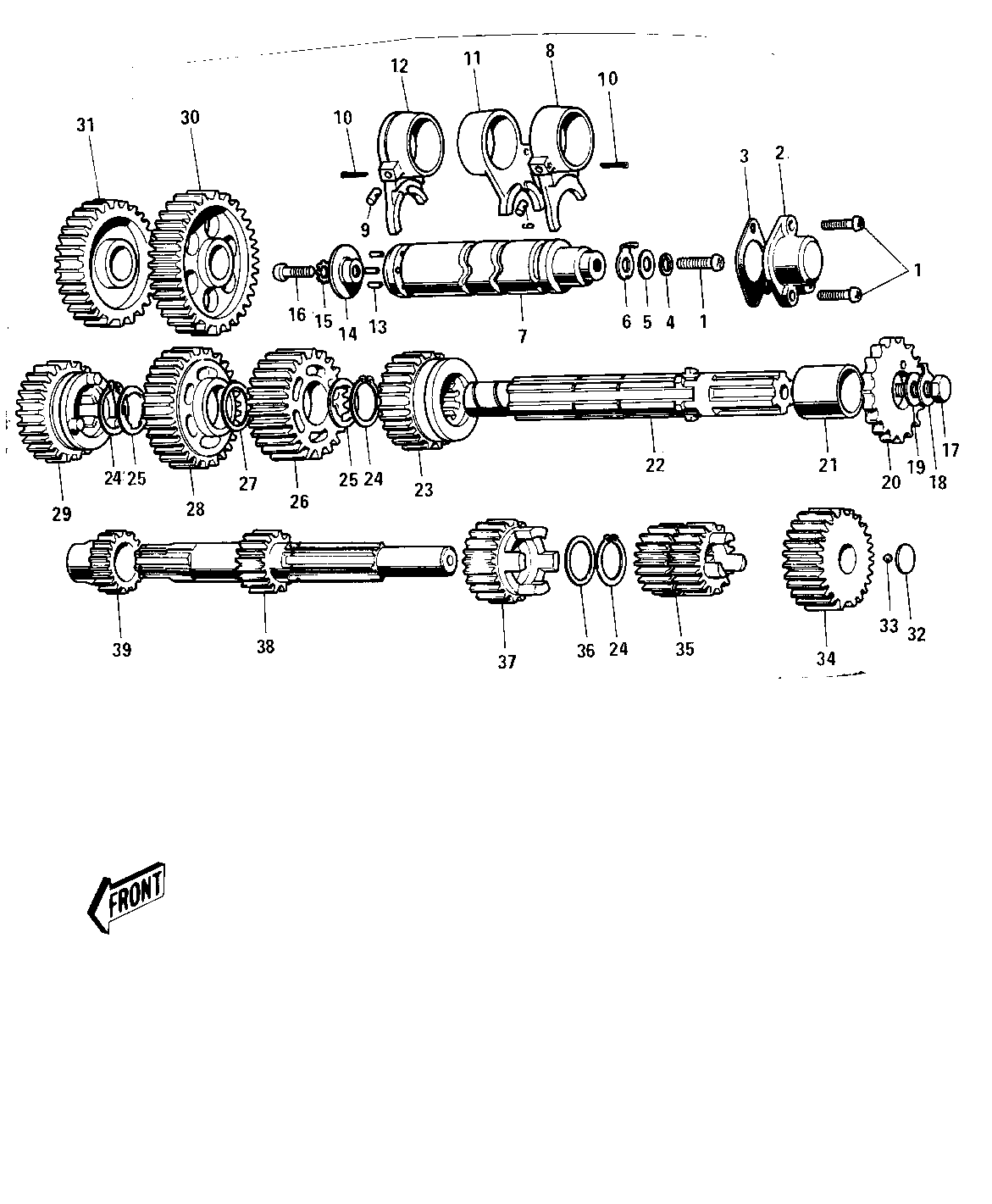

1973 G5-A - TRANSMISSION/CHANGE DRUM ('72-'73 G5-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X16 1 220B0616
SWITCH,NEUTRAL 2 13151-1001
GASKET NEUTRAL SWITCH 3 13146-002
WASHER SPRING 6MM 4 461F0600
WASHER PLAIN 6MM 5 410B0600
ROTOR,NEUTRAL INDICTR 6 21007-1003
DRUM ASSY-GEAR CHANGE 7,13~1 13239-005
DRUM ASSY-GEAR CHANGE 7 13239-005
FORK SELECTOR 3RD 8 13140-009
PIN SELECT FORK GUIDE 9 92043-005
PIN COTTER 3.0X20 10 550D3020
FORK SELECTOR 4TH-TOP 11 13140-017
FORK SELECTOR LOW-2ND 12 13140-010
PIN GEAR CHANGE DRUM 13 92042-014
PLATE CHANGE DRUM PIN 14 13142-008
WASHER LOCK 6MM 15 464H0600
SCREW PAN HEAD 6X12 16 220B0612
BOLT-SMALL-UPSET,8X16 17 115G0816
WASHER LOCK 8MM 18 92030-007
WASHER ENG SPROCKET 19 92022-130
ENG SPROCKET,ASY,15T 20 13249-003 STD
ENG SPROCKET ASY,13T 20 13249-001 OPTION
SPROCKET-OUTPUT,14T 20 13144-1058
SPACER ENG SPROCKET 21 92027-009 E/NO.27432 & BELOW
COLLAR,ENG NPROCKET 21 92027-179 E/NO.27433 & ABOVE
SHAFT OUTPUT 22 13128-021
TOP GEAR OUTPUT SHAFT 23 13137-012 23T
CIRCLIP 24 92033-014
WASHER-LOCK 25 92024-030
3RD GEAR OUTPUT SHAFT 26 13133-005 26T
WASHER THRUST 27 92022-146 T=1.6 M/M
2ND GEAR OUTPUT SHAFT 28 13131-008 30T
GEAR-TRANSMISSION SPU 29 13129-1708 24T
LOW GEAR OUTPUT SHAFT 30 13129-010 35T
IDLE GEAR 31 13073-004
WASHER THRUST 32 92022-115
BALL STEEL 7/32' 33 600A0700
GEAR,INPUT TOP,24T 34 13129-1927 24T
2ND&3RD GEAR,DRIVE 35 13129-1052 2ND 17T 3RD 20T
WASHER THRUST 36 92022-118 T=1.2M/M
4TH GEAR,DRIVE 37 13129-1053 22T
SHAFT,DRIVE 38 13127-032 12T
PINION KICKSTARTER 39 13075-004 16T
