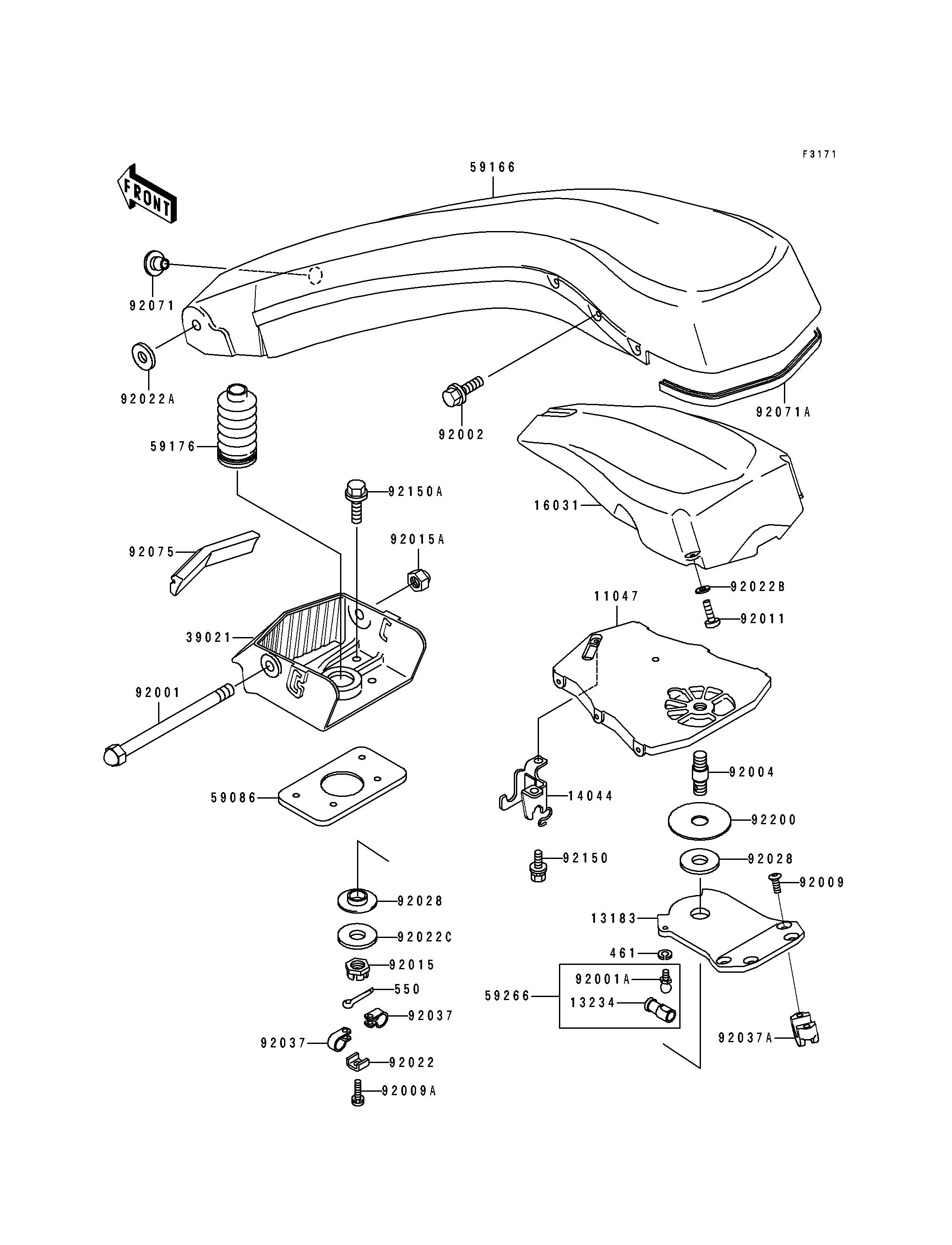

1992 550 SX - Handle Pole

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SUPPORT 11047 11047-3755 1
PLATE,HANDLEBAR 13183 13183-3770 1
SHAFT-COMP,JOINT 13234 13234-3708 1
HOLDER-CABLE 14044 14044-3710 1
FLOAT 16031 16031-506 1
BRACKET-HANDLE POLE,JET WHITE 39021 39021-3701-8C 1
BRACKET,PLATE,HANDLE 59086 59086-538 1
POLE-HANDLE,JET WHITE 59166 59166-3002-8C 1
CAP. 59176 59176-514 1
JOINT-BALL 59266 59266-3707 1
BOLT,14X183 92001 92001-3018 1
BOLT,BALL,6MM 92001A 92001-3703 1
BOLT,6X16 92002 92002-3728 6
STUD 92004 92004-3728 1
SCREW,8X22 92009 92009-3701 4
SCREW,5X16 92009A 92009-3736 1
SCREW 92011 92011-562 3
NUT,CASTLE,18MM 92015 92015-3006 1
NUT,14MM 92015A 92015-507 1
WASHER,CLAMP 92022 92022-3014 1
WASHER,15X36X4.5 92022A 92022-3024 2
WASHER 92022B 92022-563 3
WASHER 92022C 92022-571 1
BUSHING 92028 92028-3743 2
CLAMP,LEAD WIRE 92037 92037-3007 2
CLAMP,HANDLEBAR 92037A 92037-503 2
GROMMET 92071 92071-530 1
GROMMET 92071A 92071-534 1
DAMPER 92075 92075-519 1
BOLT,6X12 92150 92150-3709 2
BOLT,8X30 92150A 92150-3721 4
WASHER,20.5X80X1 92200 92200-3709 1
WASHER-SPRING,6MM 461 461S0600 1
PIN-COTTER,4X40 550 550S4040 1
