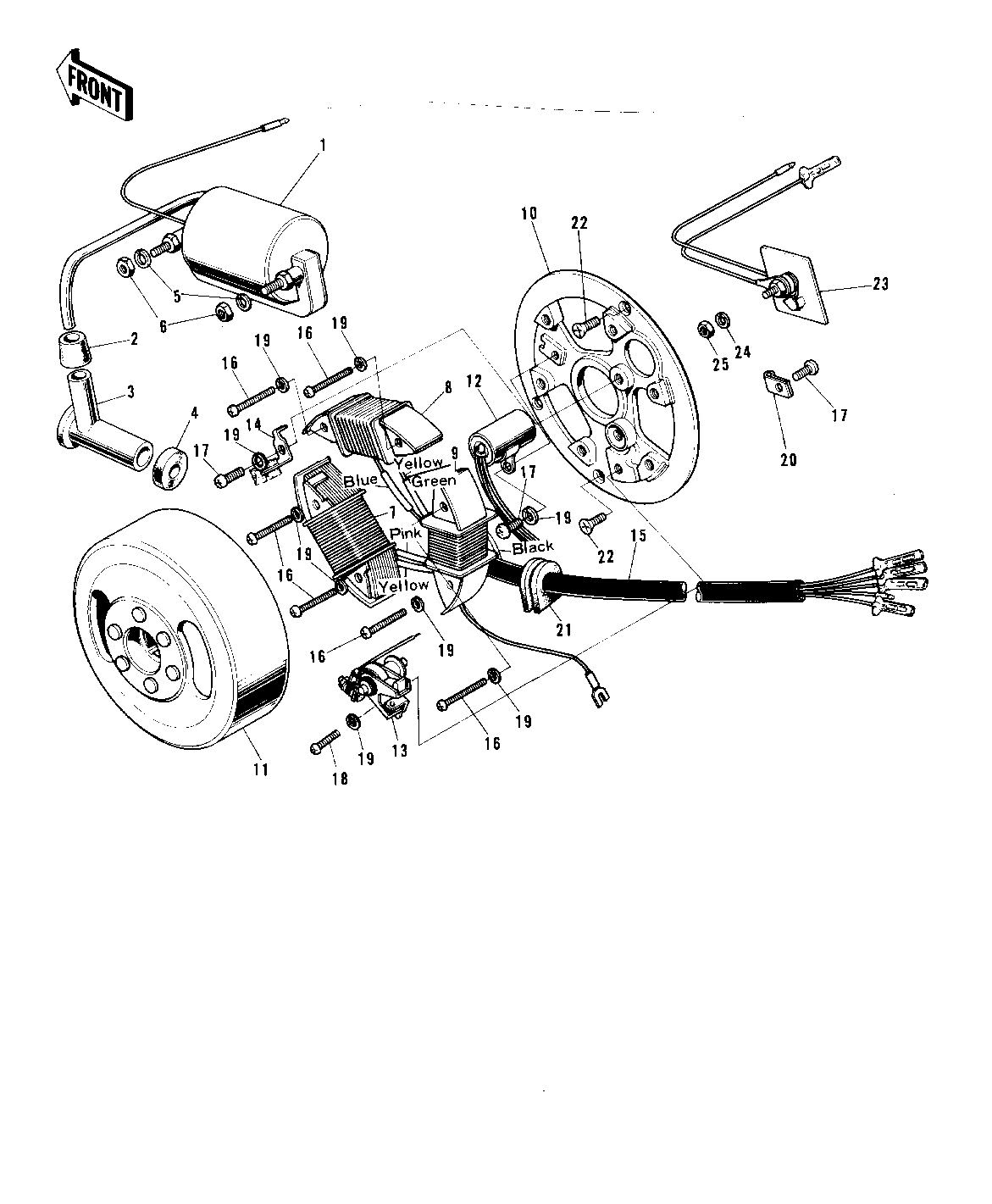

1973 G5-A - IGNITION/GENERATOR/RECTIFIER ('72-'73 G5
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COIL,IGNITION | 1 | 21121-1047 | |||
GROMMET,SPARK PLG CAP | 2 | 21132-005 | |||
CAP-SPARK PLUG | 3 | 21130-016 | |||
GROMMET-PLUG CAP,A | 4 | 21131-004 | |||
WASHER SPRING 6MM | 5 | 461F0600 | |||
NUT 6MM | 6 | 311B0600 | |||
MAGNETO FLYWHEEL | 7~21 | 21002-018 | |||
COIL LIGHTING B | 7 | 21047-007 | |||
COIL LIGHTING B | 8 | 21047-011 | |||
COIL PRIMARY | 9 | 21049-006 | |||
PLATE-COIL,MAGNETO | 10 | 21048-1002 | |||
MAGNETO ASSY | 11 | 21002-1055 | |||
CONDENSER | 12 | 21013-006 | |||
BREAKER ASSY CONTACT | 13 | 21008-006 | |||
FELT OIL | 14 | 21019-005 | |||
WIRING HARNESS MAG | 15 | 21029-014 | |||
SCREW PAN HEAD 4X30 | 16 | 220E0430 | |||
SCREW PAN HEAD 4X6 | 17 | 220B0406 | |||
SCREW-PAN-CRSOSS,4X12 | 18 | 220B0412 | |||
WASHER SPRING 4MM | 19 | 461F0400 | |||
CLAMP WIRING HARNESS | 20 | 21037-002 | |||
GROMMET WIRING HARN | 21 | 21017-002 | |||
SCREW CNTSNK HD 6X14 | 22 | 221B0614 | |||
RECTIFIER | 23 | 21061-5001 | |||
WASHER SPRING 5MM | 24 | 461F0500 | |||
NUT,5MM | 25 | 311B0500 |
