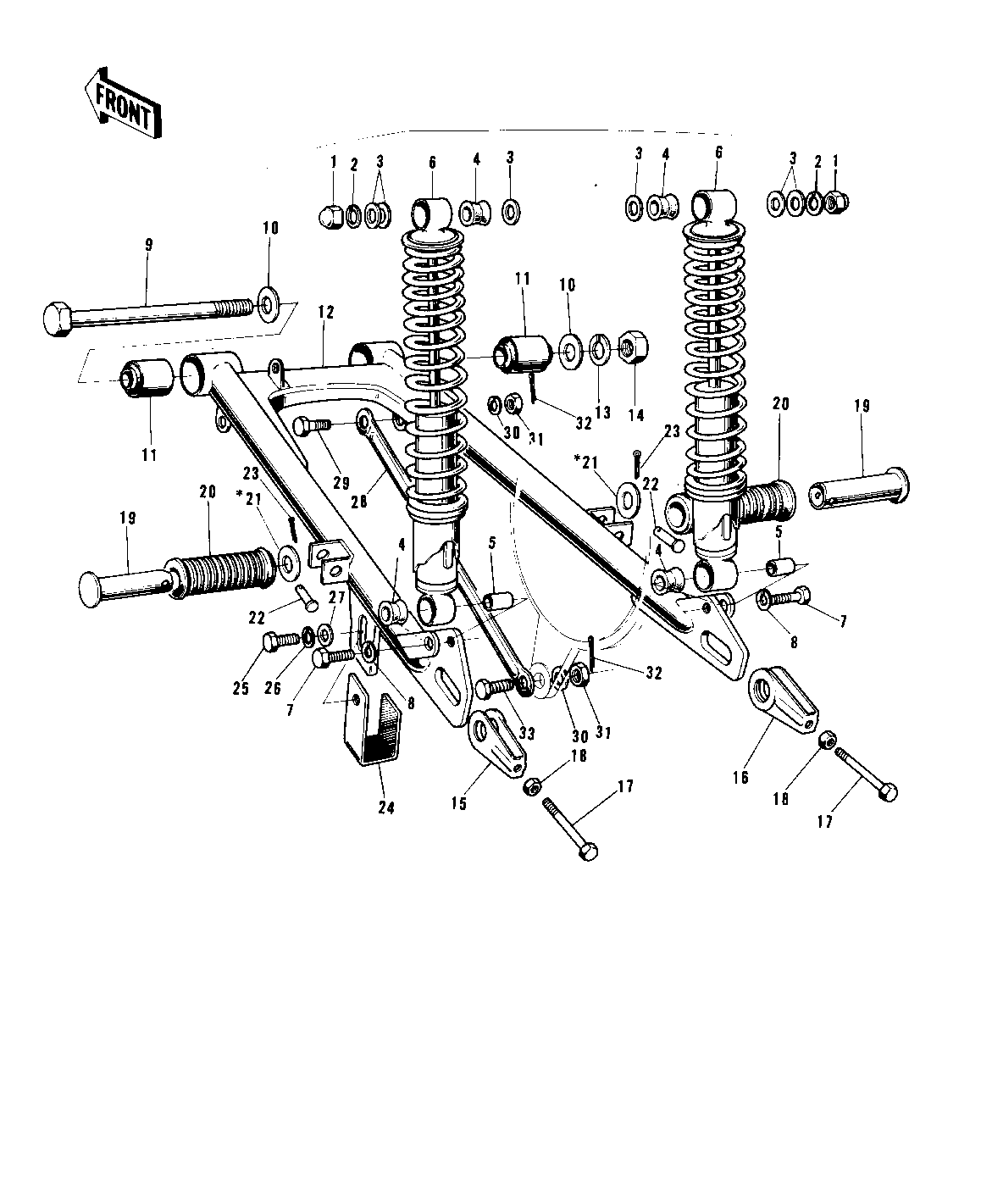

1973 G5-A - SWING ARM/SHOCK ABSORBERS ('72-'73 G5-A)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT 12MM | 1 | 92020-014 | |||
WASHER SPRING 12MM | 2 | 461F1200 | |||
WASHER PLAIN 12MM | 3 | 410B1200 | |||
BUSHING,RUBBER | 4 | 92075-1020 | |||
BUSH SHCK ABS PVT SFT | 5 | 45016-003 | |||
SHOCK ABSBR RR | 4~6 | 45014-068 | G5 | ||
SHOCK ABSBR RR | 4~6 | 45014-074 | G5-A | ||
BOLT HEX HEAD 10X35 | 7 | 113N1035 | |||
WASHER SPRING 10MM | 8 | 461F1000 | |||
SHAFT-SWING ARM PIVOT | 9 | 33032-034 | |||
WASHER PLAIN 12MM | 10 | 410B1200 | |||
BUSH SWING ARM SHAFT | 11 | 92092-005 | |||
ARM-SWING | 12 | 33001-041 | G5 | ||
ARM-SWINGING | 12 | 33001-047 | G5-A | ||
WASHER SPRING 12MM | 13 | 461F1200 | |||
NUT-HEX-FINE | 14 | 314B1200 | |||
ADJUSTER-CHAIN,L.H. | 15 | 33040-045 | I.D=16.5M/M | ||
ADJUSTER-CHAIN,R.H. | 16 | 33040-046 | I.D=12.5M/M | ||
BOLT,8X50 | 17 | 92001-1399 | |||
NUT 8MM | 18 | 312B0800 | |||
BAR-RR FOOTREST (OPT) | 19 | 34028-009 | |||
RUBBER,REAR FOOTREST | 20 | 92076-024 | |||
WASHER-PLAIN (OPT) | 21 | 92022-199 | OPTION | ||
PIN | 22 | 92043-1464 | |||
PIN COTTER 2.0X15 | 23 | 550D2015 | |||
GUARD-CHAIN | 24 | 55020-007 | |||
BOLT-SMALL-UPSET,8X16 | 25 | 115G0816 | |||
WASHER SPRING 8MM | 26 | 461F0800 | |||
WASHER PLAIN 8MM | 27 | 410B0800 | |||
TORQUE LINK-RR BRAKE | 28 | 43007-028 | |||
BOLT TORQUE LINK FIT | 29 | 92003-017 | |||
WASHER SPRING 10MM | 30 | 461F1000 | |||
NUT,10MM | 31 | 314B1000 | |||
PIN COTTER 2.0X15 | 32 | 550D2015 | |||
BOLT HEX HEAD 10X25 | 33 | 92003-003 |
