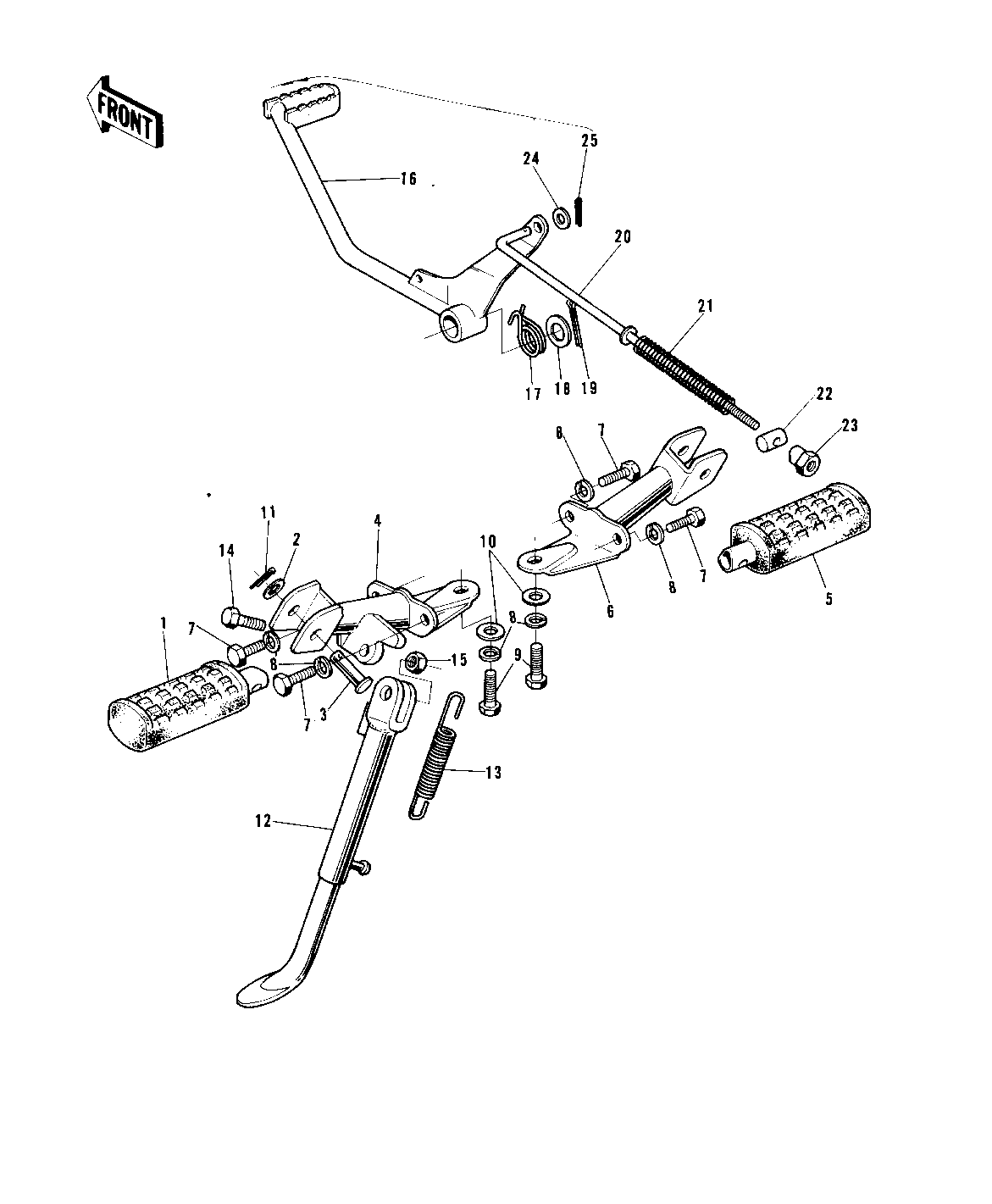

1973 G5-A - FOOTRESTS/STAND/BRAKE PEDAL ('72-'73 G5-
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
STEP-ASSY,FR,LH | 1 | 34027-1114 | |||
WASHER PL 22.5X36X2.3 | 2 | 92022-204 | |||
PIN-FOOTREST BAR FIT | 3 | 92043-080 | |||
HOLDER-FOTREST BAR,LH | 4 | 34003-030 | |||
STEP-ASSY,FR,RH | 5 | 34027-1115 | |||
HOLDER-FOTREST BAR,RH | 6 | 34003-031 | |||
BOLT HEX HEAD 8X14 | 7 | 110G0814 | |||
WASHER SPRING 8MM | 8 | 461F0800 | |||
BOLT-SMALL-UPSET,8X16 | 9 | 115G0816 | |||
WASHER PLAIN 8MM | 10 | 410B0800 | |||
PIN COTTER 2.5X16 | 11 | 550D2516 | |||
STAND-SIDE | 12 | 34024-037 | |||
STAND-SIDE | 12 | 34024-037 | G5-A | ||
SPRING MAIN STAND | 13 | 34023-005 | |||
BOLT,10X28 | 14 | 113G1028 | |||
NUT 10MM | 15 | 315B1000 | |||
PEDAL-BRAKE,BLACK | 16 | 43001-042-10 | |||
SPRING-BRAKE PEDAL | 17 | 43005-020 | |||
WASHER BRAKE PEDAL | 18 | 92022-085 | |||
PIN COTTER 3.0X30 | 19 | 550D3030 | |||
BRAKE ROD ASSY | 20~23 | 43010-5001 | |||
ROD ASSY-BRAKE | 20~23 | 43010-012 | G5-A | ||
SPRING,BRAKE ROD | 21 | 43012-001 | |||
PIN BRAKE | 22 | 92043-039 | |||
NUT-BRAKE ROD ADJUST | 23 | 92015-042 | |||
WASHER PLAIN 5MM | 24 | 410B0500 | |||
PIN COTTER 2.0X15 | 25 | 550D2015 | |||
PIN-BRAKE CABLE FIT | 26 | 92043-092 | G5-A | ||
WASHER PLAIN 6MM | 27 | 410B0600 | G5-A | ||
PIN COTTER 2.0X15 | 28 | 550D2015 | G5-A |
STEP-ASSY,FR,LH | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER PL 22.5X36X2.3 | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
PIN-FOOTREST BAR FIT | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
HOLDER-FOTREST BAR,LH | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
STEP-ASSY,FR,RH | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
HOLDER-FOTREST BAR,RH | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT HEX HEAD 8X14 | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER SPRING 8MM | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT-SMALL-UPSET,8X16 | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER PLAIN 8MM | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
PIN COTTER 2.5X16 | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
STAND-SIDE | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
STAND-SIDE | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | G5-A |
SPRING MAIN STAND | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT,10X28 | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
NUT 10MM | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
PEDAL-BRAKE,BLACK | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SPRING-BRAKE PEDAL | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER BRAKE PEDAL | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
PIN COTTER 3.0X30 | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BRAKE ROD ASSY | |
REF # | 20~23 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
ROD ASSY-BRAKE | |
REF # | 20~23 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | G5-A |
SPRING,BRAKE ROD | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
PIN BRAKE | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
NUT-BRAKE ROD ADJUST | |
REF # | 23 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER PLAIN 5MM | |
REF # | 24 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
PIN COTTER 2.0X15 | |
REF # | 25 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
PIN-BRAKE CABLE FIT | |
REF # | 26 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | G5-A |
WASHER PLAIN 6MM | |
REF # | 27 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | G5-A |
PIN COTTER 2.0X15 | |
REF # | 28 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | G5-A |
