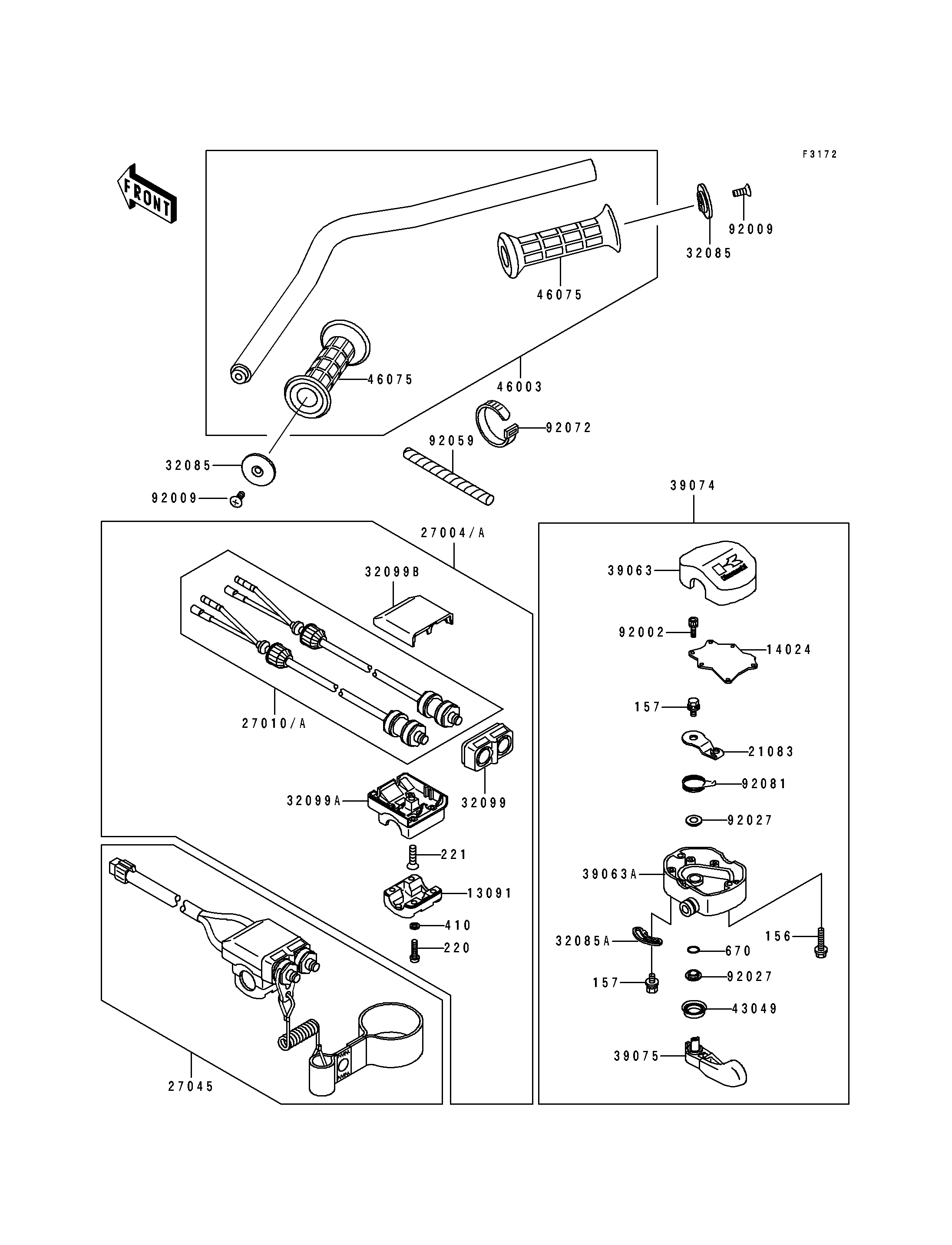

1995 550 SX - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,SWITCH 13091 13091-3726 1
COVER,THROTTLE LEVER 14024 14024-3701 1
ARM,THROTTLE LEVER 21083 21083-3701 1
SWITCH-ASSY,STOP&START 27004A 27004-3716 1
SWITCH,STOP&START 27010A 27010-3726 1
SWITCH-ASSY,STOP&START 27045 27045-3707 1 (OPTION)
STOPPER 32085 32085-3705 2
STOPPER 32085A 32085-3709 1
CASE,FR,SWITCH 32099 32099-3724 1
CASE,LWR,SWITCH 32099A 32099-3725 1
CASE,UPP,SWITCH 32099B 32099-3726 1
HOUSING-CONTROL,UPP 39063 39063-3703 1
HOUSING-CONTROL,LWR 39063A 39063-3707 1
LEVER-ASSY-THROTTLE 39074 39074-3711 1
LEVER-THROTTLE 39075 39075-3704 1
PACKING,THROTTLE LEVER 43049 43049-3701 1
HANDLE 46003 46003-3713 1
GRIP,HANDLEBAR 46075 46075-3713 2
BOLT,SOCKET,3X10 92002 92002-3751 6
SCREW,6X16 92009 92009-3703 2
COLLAR,THROTTLE LEVER 92027 92027-3704 2
TUBE,SPIRAL 92059 92059-3010 2
BAND,L=149 92072 92072-031 1
SPRING,THROTTLE LEVER RETURN 92081 92081-3702 1
BOLT-WP,5X25 156 156R0525 2
BOLT-WSP,5X12 157 157R0512 2
SCREW-PAN-CROS,5X20 220 220R0520 4
SCREW-CSK-CROS,6X25 221 221R0625 1
W-PLAIN-S,5MM 410 410S0500 4
O RING,8MM 670 670B1508 1
