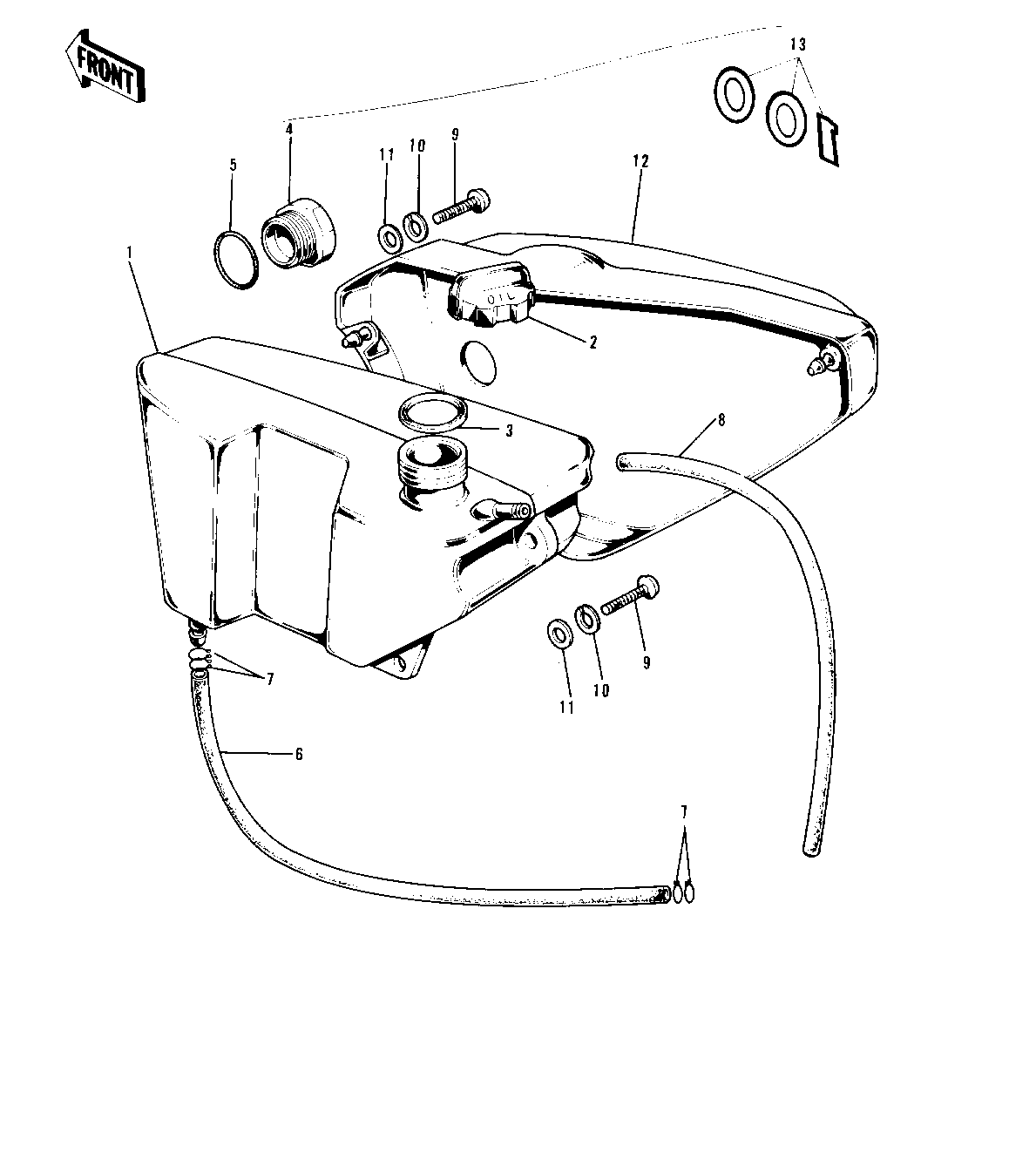

1973 G5-A - SIDE COVER/OIL TANK ('72-'73 G5-A)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TANK-OIL 1 52001-029
CAP-OIL TANK 2 52003-019
GASKET-OIL TANK CAP 3 92065-085
GUAGE-OIL LEVEL 4 52015-002
"O" RING,20MM 5 92055-051
PIPE-FUEL 6 92059-073
CLAMP FUEL PIPE 7 92037-010
TUBE-VINYL,5X280 8 700Q05280
SCREW PAN HEAD 6X20 9 220B0620
WASHER SPRING 6MM 10 461F0600
WASHER 6.5X20X1.6T 11 92022-125
COVER,RH SIDE,YELLOW 12 36007-027-74 G5
COVER-R.H SIDE,BLACK 12 36007-027-21 G5-A
EMBLEM-OIL TANK 13 56018-111 G5
EMBLEM-OIL TANK 13 56018-127 G5-A
