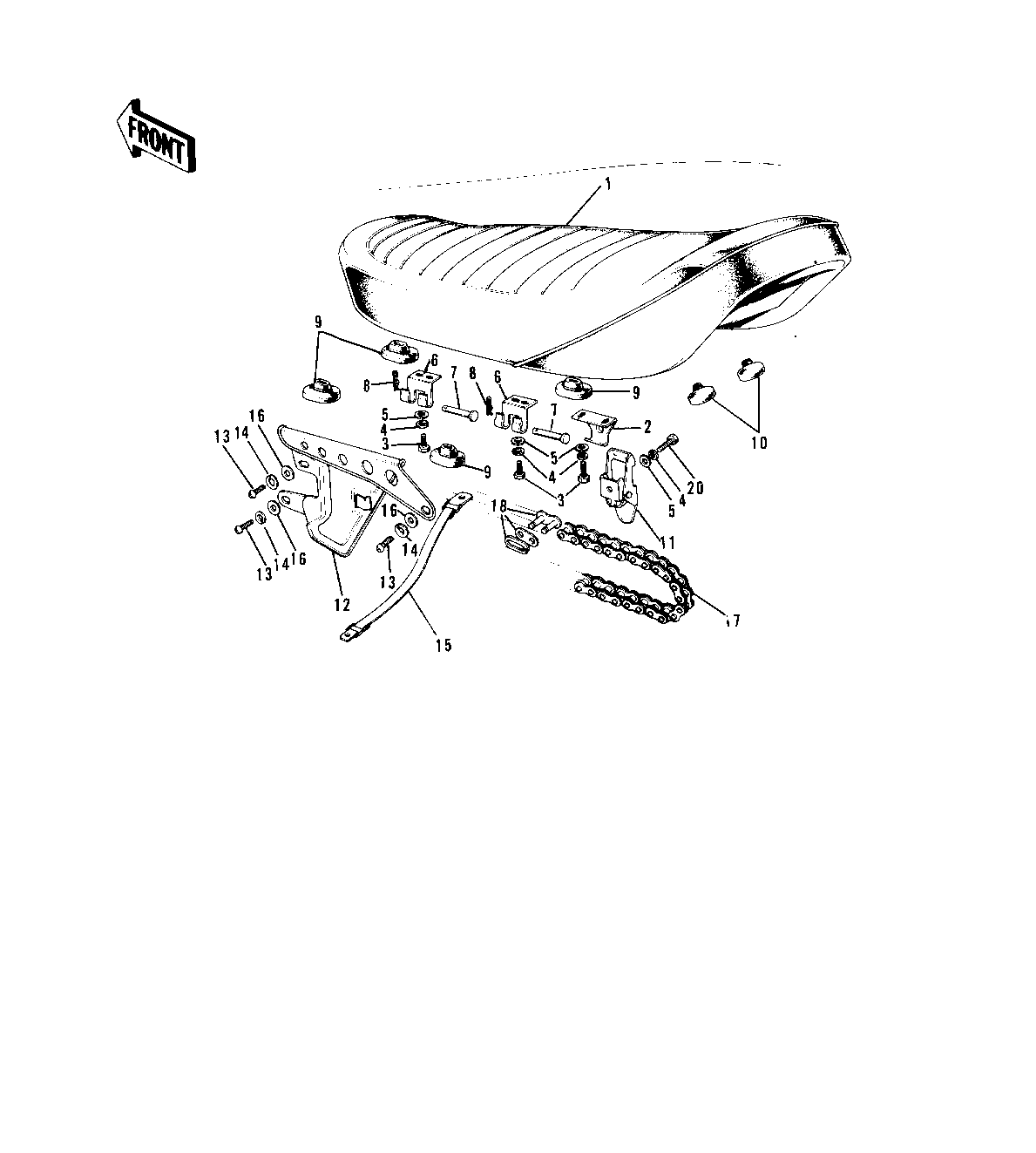

1973 G5-A - SEAT/CHAIN COVER/CHAIN ('72-'73 G5-A)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SEAT ASSY-DUAL | 1~10 | 53002-034 | G5 | ||
SEAT ASSY-DUAL | 1~10 | 53002-039 | G5-A | ||
HOOK | 2 | 53008-013 | |||
BOLT-UPSET,6X12 | 3 | 112G0612 | |||
BOLT-UPSET,6X12 | 3 | 112G0612 | |||
WASHER SPRING 6MM | 4 | 461F0600 | |||
WASHER PLAIN 6MM | 5 | 411B0600 | |||
HINGE,BLACK | 6 | 53009-017-10 | |||
PIN | 7 | 53011-002 | |||
COTTER PIN | 8 | 92041-003 | |||
DAMPER RUBB DUAL SEAT | 9 | 92075-023 | |||
DAMPER RUBBER | 10 | 92075-099 | |||
HOOK ASSY | 11 | 53045-002 | |||
CASE-CHAIN,FR BLACK | 12 | 36014-043-21 | |||
SCREW PAN HEAD 6X12 | 13 | 220B0612 | |||
WASHER SPRING 6MM | 14 | 461F0600 | |||
BAND-SEAT STOPPER | 15 | 92072-038 | |||
WASHER PLAIN 6MM | 16 | 411B0600 | |||
UNAVAILABLE IN PRICE BOOK | 17,18 | 695W43110 | |||
JOINT-CHAIN | 18 | 92058-1014 | |||
BOLT-UPSET,6X16 | 20 | 112G0616 |
SEAT ASSY-DUAL | |
REF # | 1~10 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | G5 |
SEAT ASSY-DUAL | |
REF # | 1~10 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | G5-A |
HOOK | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT-UPSET,6X12 | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT-UPSET,6X12 | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
HINGE,BLACK | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
PIN | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
COTTER PIN | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
DAMPER RUBB DUAL SEAT | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
HOOK ASSY | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
CASE-CHAIN,FR BLACK | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X12 | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BAND-SEAT STOPPER | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
UNAVAILABLE IN PRICE BOOK | |
REF # | 17,18 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
JOINT-CHAIN | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT-UPSET,6X16 | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
