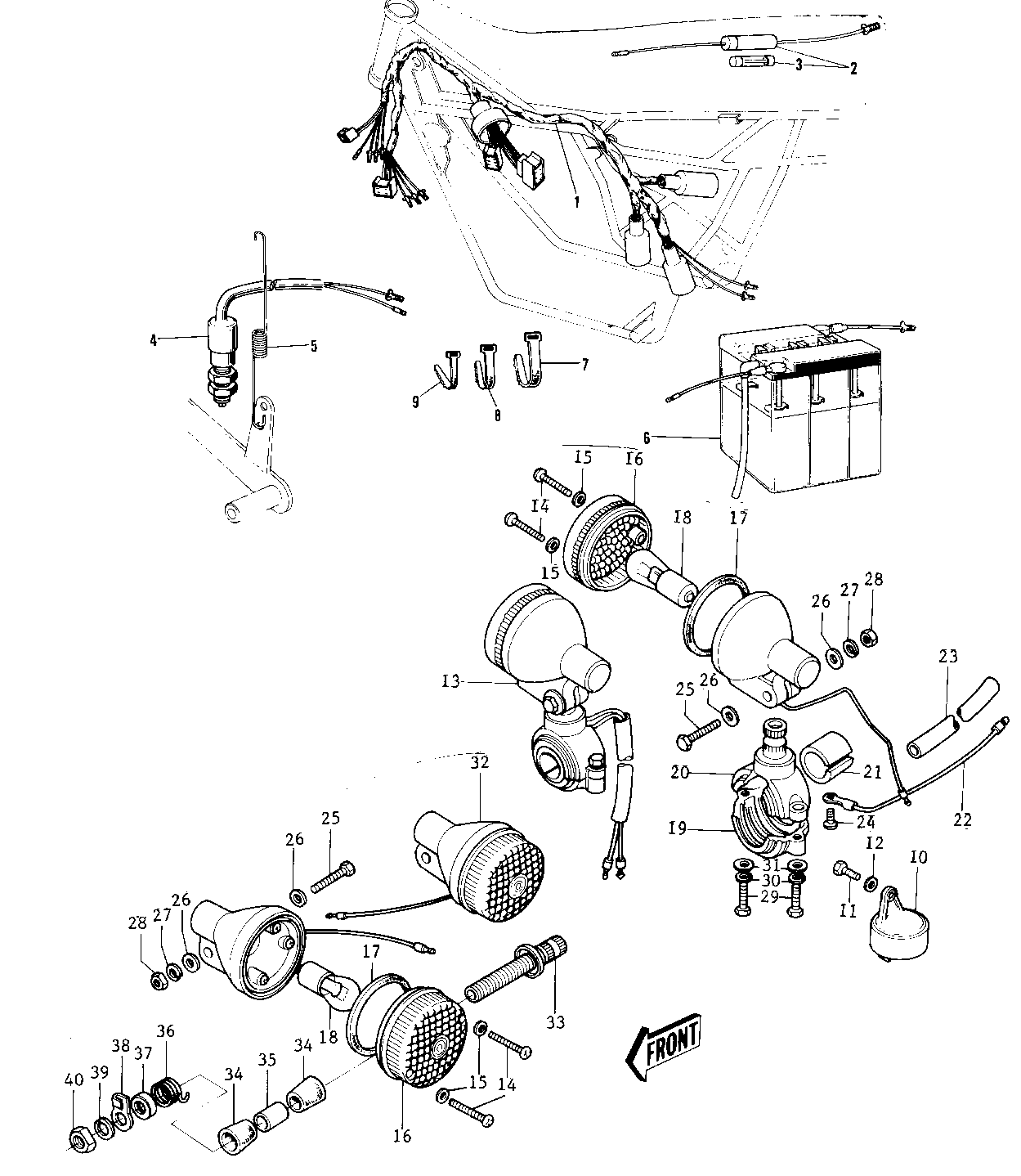

1973 G5-A - TURN SIGNALS/CHASSIS ELECTRICAL EQUIPMEN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WIRING HARNESS-MAIN 1 26001-063
FUES ASSY 2 26004-008
FUSE 10A 3 26006-003
SWITCH-BRAKE LAMP 4 27010-015
SPRING-BRAKE LAMP SW 5 27011-011
YUA BAT 6N4-2A-3 6 K26012-006
BAND,SHORT 7 92072-030
BAND,MIDDLE 8 92072-031
BAND,LONG 9 92072-032
RELAY-TURN SIGNAL 10 27002-015
BOLT-UPSET 6X14 11 112B0614
BOLT-UPSET 6X14 11 112B0614
WASHER 6.5X20X1.6T 12 92022-125
LAMP ASY-FR TURN SIG 13 23037-005
SCREW-PAN HEAD,4X20 14 220E0420A
WASHER-PLAIN,4MM 15 23058-002
LENS,TURN SIGNAL LAMP 16 23048-1001
GASKET-SIG LAMP LENS 17 23050-003
BULB,6V 21CP 18 92069-056
BRACKET,SIGNAL LAMP 19 23051-1013
BRACKET,FRNT TURN SIG 20 23051-1004
DAMPER RUBBER 21 23066-003
WIRE-TURN SIGNAL LEAD 22 26011-061
COVER-WIRING HARNESS 23 26009-004
SCREW PAN HEAD 3X5 24 220B0305A
BOLT-UPSET 25 112G0630
WASHER PLAIN 6MM 26 410B0600
WASHER SPRING 6MM 27 461F0600
NUT 6MM 28 311B0600
BOLT 29 110N0516
WASHER SPRING 5MM 30 461F0500
WASHER-PLAIN,5MM 31 410D0500
LAMP-REAR TURN SIGNAL 32 23040-033
BKT-RR SIGNAL LAMP 33 23051-037
DAMPER RUBBER 34 92075-148
COLLAR 12.7X17.3X30 35 92027-168
SPRING 36 92081-111
WASHER CUP 12.5X35X4T 37 92022-235
CLAMP-RR SIGNAL LAMP 38 92037-087
WASHER SPRING 12MM 39 461F1200
NUT-HEX-FINE,12MM 40 315B1200
