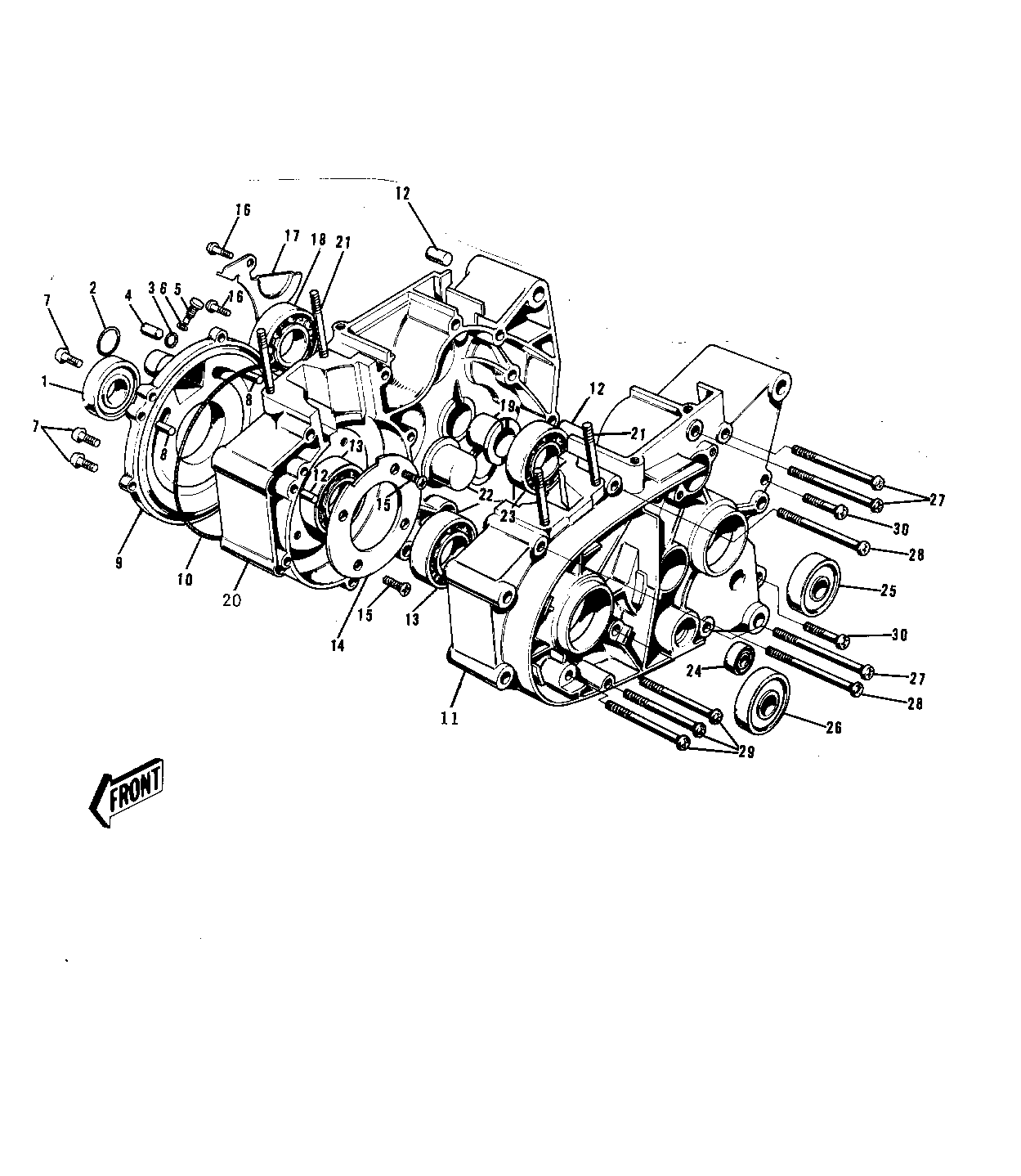

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SEAL-OIL | 1 | 92049-1250 | |||
"0" RING,26MM | 2 | 670B3026 | |||
"0" RING,8MM | 3 | 92055-029 | |||
PIN DOWEL 8X16 | 4 | 92042-017 | |||
NOZZLE OIL INJECTION | 5 | 92062-004 | |||
"0" RING,5MM | 6 | 92055-011 | |||
SCREW PAN HEAD 6X20 | 7 | 220B0620 | |||
PIN DOWEL 5X12 | 8 | 610A0512 | |||
COVER ROTARY DISC VLV | 9 | 14019-032 | |||
"0" RING,100MM | 10 | 92055-010 | |||
CRANKCASE,L.H,BLACK | 11 | 14002-090-21 | FLAT BLACK | ||
PIN DOWEL 8X16 | 12 | 551A0816 | |||
BEARING BALL #6204 | 13 | 601B6204 | |||
HOLDER CRANKSHAFT BRG | 14 | 14014-017 | |||
SCREW CNTSNK HD 6X16 | 15 | 221B0616 | |||
SCREW PAN HEAD 6X25 | 16 | 220B0625 | |||
HOLDER BEARING MSSON | 17 | 14014-008 | |||
BEARING BALL #6005 | 18 | 601B6005 | |||
BUSH DRIVE SHAFT | 19 | 92028-069 | L=14 M/M | ||
CRANKCASE,R.H F.BLACK | 20 | 14003-063-21 | FLAT BLACK | ||
STUD 8X115 | 21 | 172G08115 | |||
BUSH OUTPUT SHAFT | 22 | 92028-025 | L=23.5 M/M | ||
BEARING BALL #6004 | 23 | 601B6004 | |||
OIL SEAL SB12205 | 24 | 92049-004 | |||
OIL SEAL SC25376 | 25 | 92050-013 | |||
SEAL-OIL | 26 | 92049-1240 | |||
SCREW PAN HEAD 6X65 | 27 | 220B0665 | |||
SCREW PAN HEAD 6X60 | 28 | 220B0660 | |||
SCREW PAN HEAD 6X40 | 29 | 220B0640 | |||
SCREW PAN HEAD 6X12 | 30 | 220B0612 |
SEAL-OIL | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
"0" RING,26MM | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
"0" RING,8MM | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
PIN DOWEL 8X16 | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
NOZZLE OIL INJECTION | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
"0" RING,5MM | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X20 | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
PIN DOWEL 5X12 | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
COVER ROTARY DISC VLV | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
"0" RING,100MM | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
CRANKCASE,L.H,BLACK | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | FLAT BLACK |
PIN DOWEL 8X16 | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BEARING BALL #6204 | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
HOLDER CRANKSHAFT BRG | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SCREW CNTSNK HD 6X16 | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X25 | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
HOLDER BEARING MSSON | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BEARING BALL #6005 | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BUSH DRIVE SHAFT | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | L=14 M/M |
CRANKCASE,R.H F.BLACK | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | FLAT BLACK |
STUD 8X115 | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BUSH OUTPUT SHAFT | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | L=23.5 M/M |
BEARING BALL #6004 | |
REF # | 23 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
OIL SEAL SB12205 | |
REF # | 24 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
OIL SEAL SC25376 | |
REF # | 25 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 26 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X65 | |
REF # | 27 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X60 | |
REF # | 28 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X40 | |
REF # | 29 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X12 | |
REF # | 30 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
