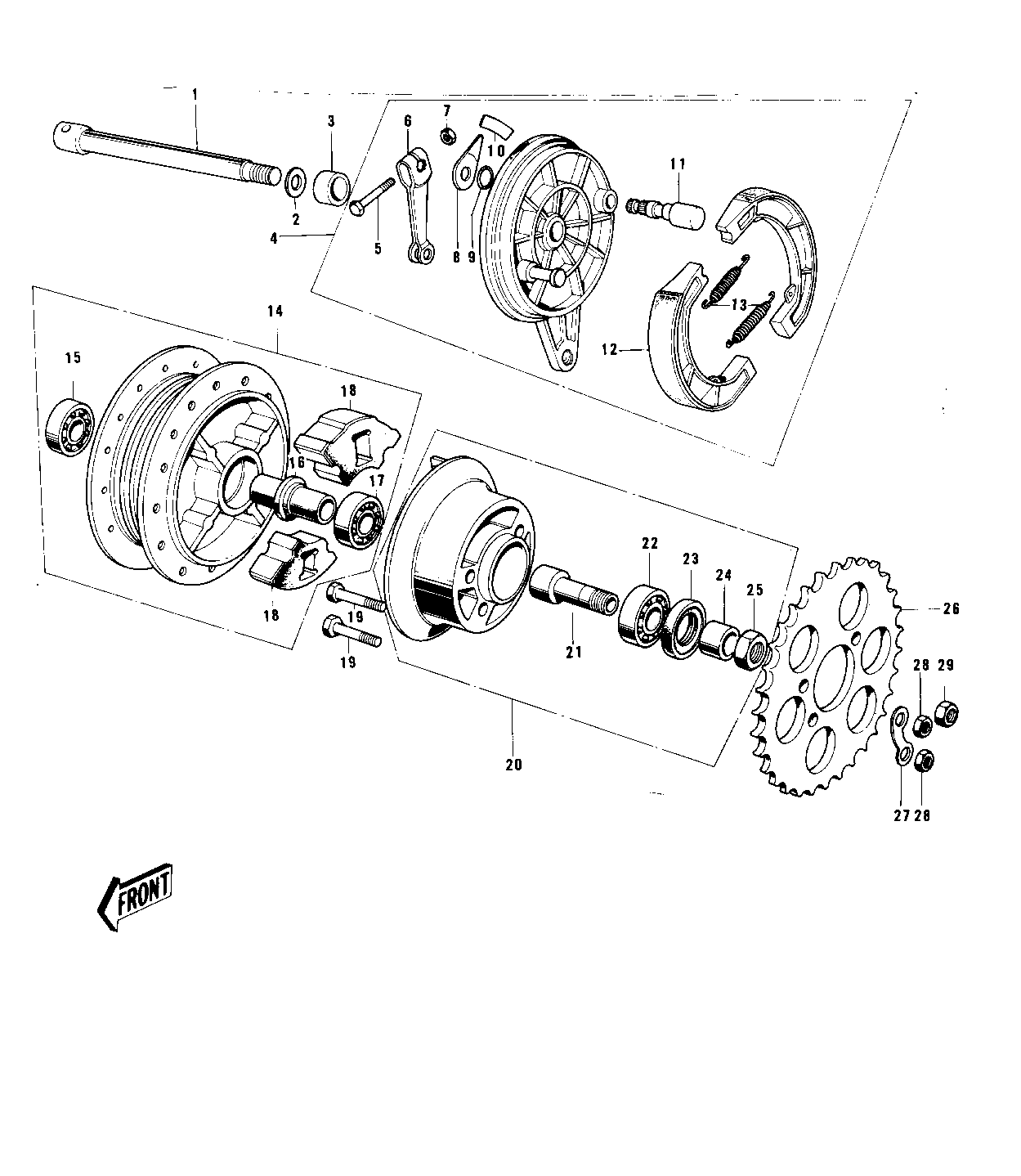

1973 G5-A - REAR HUB/BRAKE ('74-'75 B/C)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,12X215 1 41068-1109
WASHER PLAIN 12MM 2 410B1200
COLLAR REAR HUB R.H 3 42032-006
PANEL ASY,RR BK,BUFF 4 42006-038-80 BUFF FINISH
BOLT-UPSET 5 112G0630
LEVER,FRONT BRAKE CAM 6 41053-002
NUT,6MM 7 41072-007
INDICATOR,BKSHOE 8 41085-003
"0" RING,11MM 9 92055-004
LABEL,REAR BRKE SHOE 10 41084-003
CAM SHAFT,REAR BRAKE 11 42026-018
SHOE-BRAKE 12 41048-1085
SPRING,BRAKE SHOE 13 92081-1766
DRUM ASSY,RR BRK,BUFF 14 42005-031-80 BUFF FINISH
BEARING BALL #6301Z 15 601B6301Z
SPACER-RR HUB BEARING 16 42010-005
BEARING BALL #6201 17 601B6201
DAMPER REAR HUB SHOCK 18 42014-016
BOLT REAR SPROCKET 19 92001-082
COUPLING ASSY-RR HUB 20 42033-014
SLEEVE-RR HUB COUPLNG 21 42036-013
BEARING BALL #6203 22 601B6203
OIL SEAL-COUPLING 23 92052-003
BUSH,COUPLNG OIL SEAL 24 42037-003
NUT,16MM 25 42045-004
REAR SPROCKET 42T 26 42041-076 S T D
RR SPROCKET 39T (OPT) 26 42041-104 OPTION
SPROCKET-HUB,40T 26 42041-1095 OPTION
WASHER LOCK 27 92088-011
NUT 10MM 28 315B1000
NUT 10MM 29 42045-005
