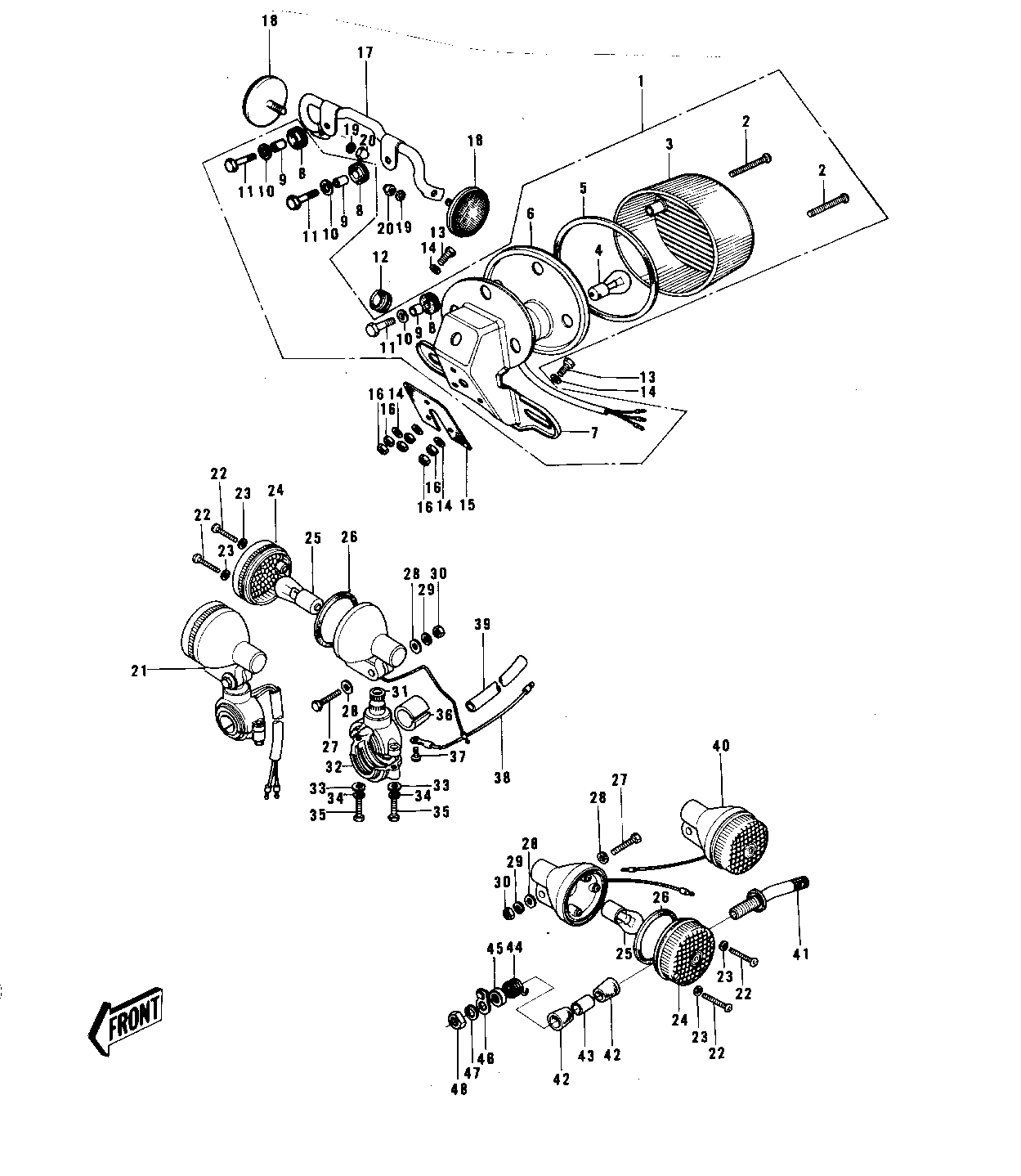

1973 G5-A - TAILLIGHT/TURN SIGNALS ('74-'75 B/C)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP ASSY,TAIL,BLACK 1 23024-069-21 FLAT BLACK
SCREW-PAN HEAD,4X35 2 220E0435A
LENS-TAIL LAMP 3 23026-023
BULB,6V 17/5.3W 4 92069-028
GASKET-TAIL LAMP LENS 5 23028-018
CASE,TAIL LAMP 6 23027-030
BKT-LICENSE PLT.BLACK 7 23036-019-21 FLAT BLACK
DAMPER RUBBER 8 92075-076
COLLAR,6.8X10X8.5 9 92027-129
WASHER 6.5X20X1.6T 10 92022-125
BOLT 6X22 11 112B0622
GROMMET HARNESS 10MM 12 92071-019
BOLT-UPSET 13 112G0630
WASHER 6.5X20X1.6T 14 92022-125
DAMPER-TAIL LAMP SHCK 15 35039-005
NUT 6MM 16 312B0600
BRACKET-REFLECTOR 17 28013-005
REFLECTOR-REFLEX,REAR 18 28012-008
WASHER SPRING 5MM 19 461F0500
NUT-CAP,5MM 20 322N0500
LAMP ASY-FR TURN SIG 21 23037-005
SCREW-PAN HEAD,4X20 22 220E0420A
WASHER-PLAIN,4MM 23 23058-002
LENS,TURN SIGNAL LAMP 24 23048-1001
BULB,6V 21CP 25 92069-056
GASKET-SIG LAMP LENS 26 23050-003
BOLT-UPSET 27 112G0630
WASHER-PLAIN,6MM 28 411D0600
WASHER SPRING 6MM 29 461F0600
NUT 6MM 30 311B0600
BRACKET,FRNT TURN SIG 31 23051-1004
BRACKET,SIGNAL LAMP 32 23051-1013
WASHER-PLAIN,5MM 33 410D0500
WASHER SPRING 5MM 34 461F0500
BOLT 35 110N0516
DAMPER RUBBER 36 23066-003
SCREW PAN HEAD 3X5 37 220B0305A
WIRE-TURN SIGNAL LEAD 38 26011-061
COVER-WIRING HARNESS 39 26009-004
LAMP-REAR TURN SIGNAL 40 23040-033
BKT-RR SIGNAL LAMP 41 23051-044
DAMPER RUBBER 42 92075-148
COLLAR 12.7X17.3X30 43 92027-168
SPRING 44 92081-111
WASHER CUP 12.5X35X4T 45 92022-235
CLAMP-RR SIGNAL LAMP 46 92037-087
WASHER SPRING 12MM 47 461F1200
NUT-HEX-FINE,12MM 48 315B1200
