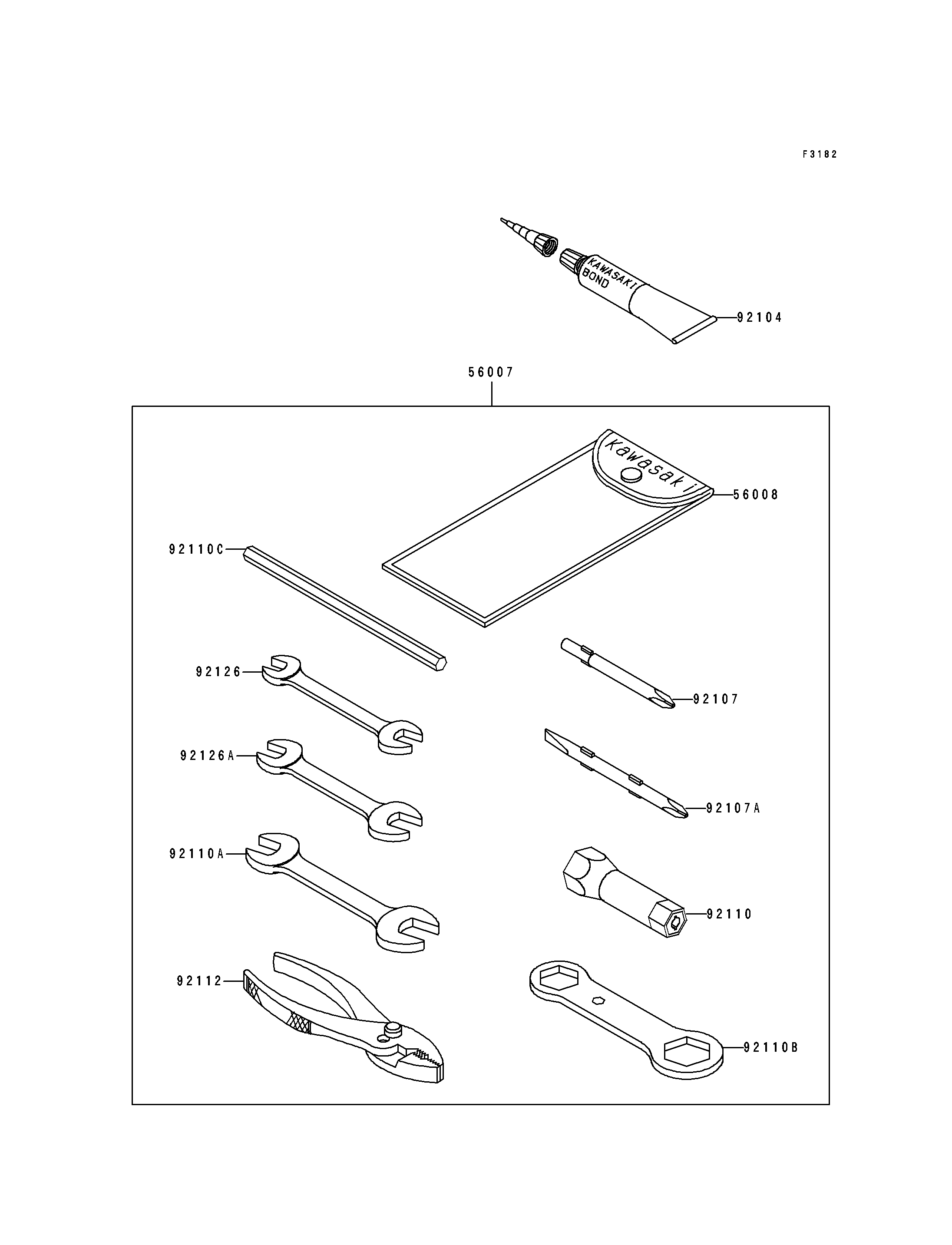

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOLKIT 56007 56007-3706 1
BAG,TOOL 56008 56008-1075 1
GASKET-LIQUID,TUBE,100G,SILVER 92104 92104-002 AR (OPTION)
TOOL-DRIVER,#3PHILLIPS 92107 92107-005 1
TOOL-DRIVER,#2PHILLIPS&SLOT 92107A 92107-1051 1
TOOL-WRENCH,BOX,21MM 92110 92110-1113 1
TOOL-WRENCH,OPEN END,14X17 92110A 92110-1153 1
TOOL-WRENCH,BOX END,27X32 92110B 92110-3701 1
TOOL-WRENCH,ALLEN BAR,8X160 92110C 92110-3702 1
TOOL-PLIERS 92112 92112-003 1
TOOL-WRENCH,OPEN END,8X10 92126 92126-001 1
TOOL-WRENCH,OPEN END,12X13 92126A 92126-002 1
