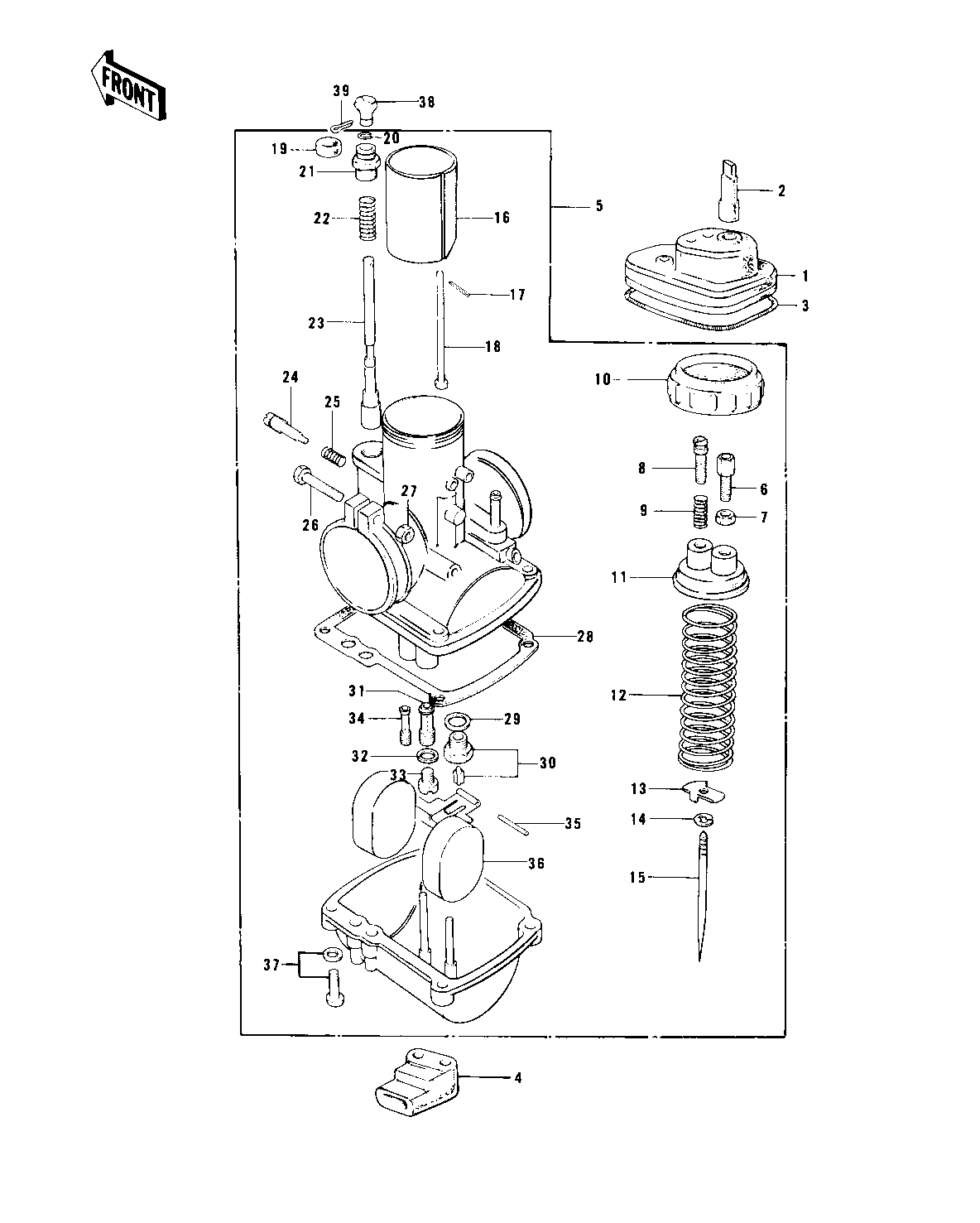

1976 KD100-M1 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CARBURETOR 1 14038-035 1
PLUG,CARBURETOR CAP 2 16147-001 1
SPRING COIL 3 92081-047 1
GROMMET,OVER FLOW 4 16136-007 1
CARBURETOR ASSY 5 16001-264 1
ADJUSTER,CABLE 6 16002-017 1
NUT CABLE ADJUST LOCK 7 16003-004 1
SCREW,THROTTLE STOP 8 16021-002 1
SPRING THR STOP SCREW 9 16022-005 1
CAP MIXING CHAMBER 10 16004-010 1
TOP MIXING CHAMBER 11 16005-005 1
SPRING THROTTLE VALVE 12 16006-013 1
SPRING SEAT,THRTL TL 13 16007-020 1
CIRCLIP 14 16008-010 1
JET NEEDLE 4EJ7 15 16009-059 1
VALVE,THROTTLE CA2.0 16 16025-057 1
PIN, COTTER, 1.2 X 10 17 550D1210 1
ROD,THROTTLE VLV STP 18 16024-012 1
CAP,STARTER PLUNGER 19 16036-012 1
CIRCLIP 20 92037-1077 1
CAP, STARTER PLUNGER 21 16012-021 1
SPRING,STARTER PLUNGR 22 16013-010 1
PLUNGER,STARTER 23 16016-012 1
SCREW PILOT AIR ADJST 24 16014-002 1
SPRING-THR STOP SCREW 25 16022-007 1
SCREW CLAMP 26 16010-004 1
NUT 6MM 27 311B0600 1
GASKET,FLOAT CHAMBER 28 16019-021 1
WASHER VALVE SEAT 29 16029-002 1
FLOAT VALVE ASSY 30 16030-001 1
NEEDLE JET 31 16017-088 1
WASHER MAIN JET 32 16034-001 1
MAIN JET,#77.5R 33 92063-1032 1 STD
MAIN JET NO 75R 33 92063-109 (1
MAIN JET, #A80 33 92063-1030 (1
MAIN JET NO 82.5R 33 92063-124 (1
MAIN JET NO 85R 33 92063-093 (1
PILOT JET #17.5 ISO 34 92064-020 1
FLOAT PIN 35 16032-003 1
FLOAT 36 16031-015 1
SCREW-FLOAT CHAMBER 37 16033-012 4
KNOB,CARBURETOR 38 92077-022 1
PIN COTTER 1.6X15 39 550D1615 1
