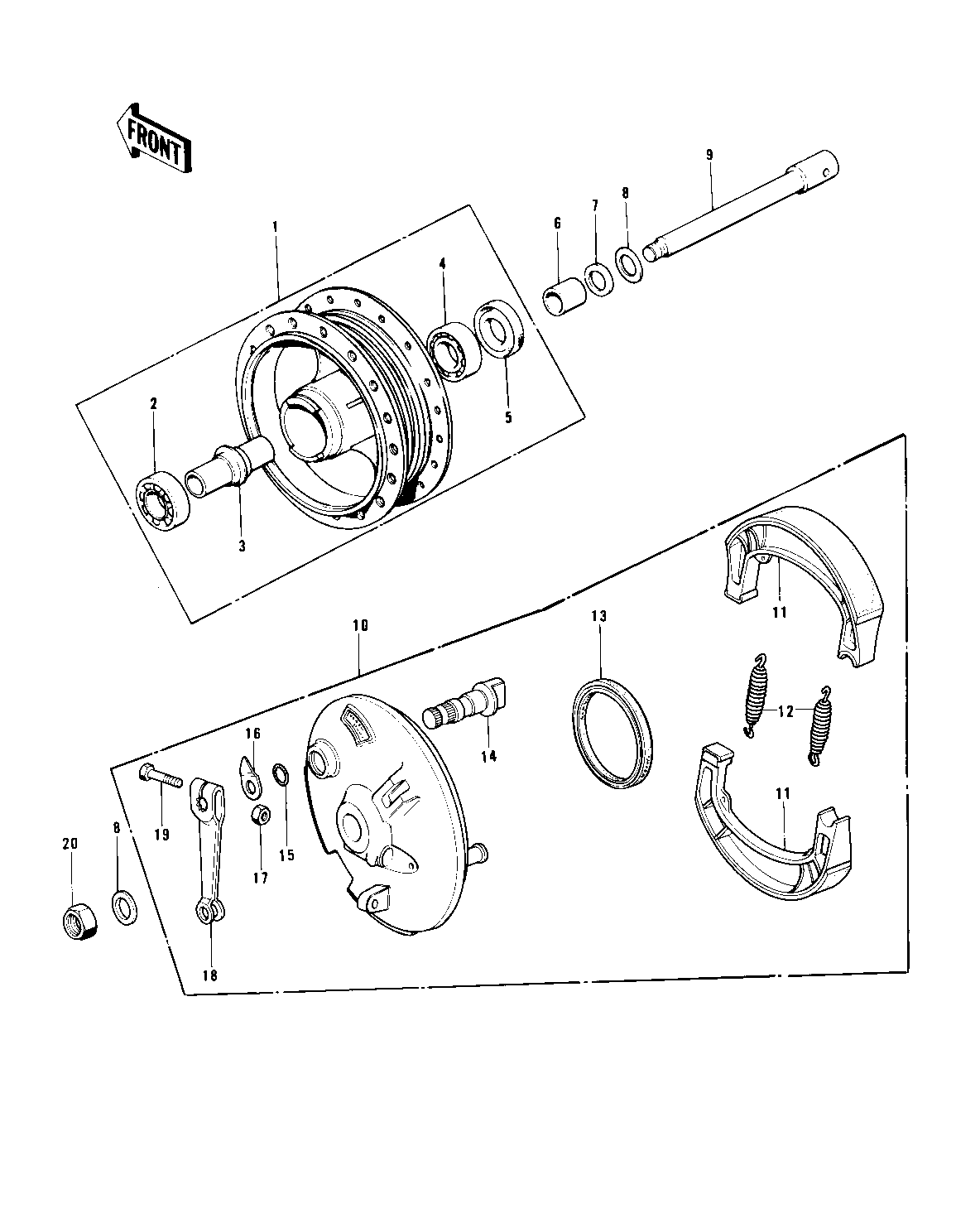

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DRUM-ASSY,FR BRK | 1 | 41034-1040 | 1 | ||
BEARING BALL #6300Z | 2 | 601B6300Z | 1 | ||
SPACER FRONT HUB | 3 | 41039-002 | 1 | ||
BEARING BALL #6200 | 4 | 601B6200 | 1 | ||
OIL SEAL,TC17317 | 5 | 92050-063 | 1 | ||
COLLAR,FRONT AXLE | 6 | 41069-026 | 1 | ||
DUST SHIELD FRNT DRUM | 7 | 41042-002 | 1 | KD100-M1/M2/M3 | |
WASHER PLAIN 10MM | 8 | 411B1000 | 2 | ||
AXLE-FRONT | 9 | 41068-039 | 1 | ||
PANEL-ASY,FR BRK BUFF | 10 | 41035-069-80 | 1 | ||
SHOE-BRAKE | 11 | 41048-1085 | 2 | ||
SPRING,BRAKE SHOE | 12 | 92081-1766 | 2 | ||
OIL SEAL BRAKE PANEL | 13 | 92050-002 | 1 | ||
CAM SHAFT-FRONT BRAKE | 14 | 41050-018 | 1 | ||
"0" RING,11MM | 15 | 92055-004 | 1 | ||
INDICATOR,FR BK SHOE | 16 | 41085-013 | 1 | ||
NUT,6MM | 17 | 41072-007 | 1 | ||
LEVER FRONT BRAKE CAM | 18 | 41053-005 | 1 | ||
BOLT-UPSET | 19 | 112G0630 | 1 | ||
NUT 10MM | 20 | 42045-005 | 1 |
