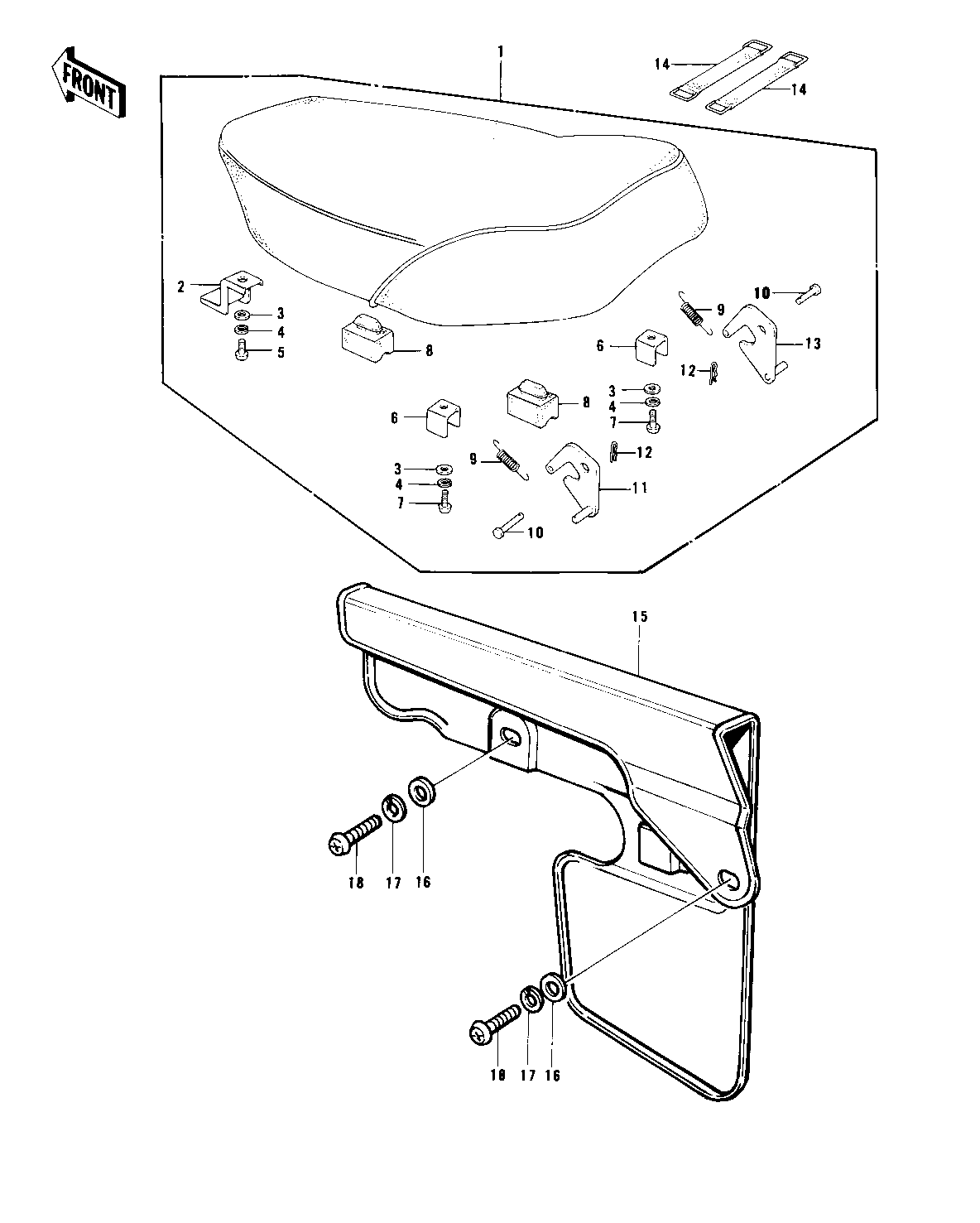

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-ASSY 1 53001-1018 1 KD100-M1/M2/M3
SEAT-ASSY 1 53001-1027 1 KD100-M4
BRACKET,SEAT 2 53032-004 1
WASHER PLAIN 6MM 3 410B0600 3
WASHER SPRING 6MM 4 461F0600 3
SCREW PAN HEAD 6X14 5 220B0614 1
SPRING,SEAT HOOK 6 53012-012 2
SCREW PAN HEAD 6X12 7 220B0612 2
DAMPER RUBBER 8 92075-099 6
SPRING,HOOK 9 53012-013 2
PIN DUAL SEAT PIVOT 10 53011-001 2
HOOK,L.H SEAT 11 53008-031 1
COTTER PIN 12 92041-003 2
HOOK,R.H SEAT 13 53008-032 1
BAND,TOOL 14 92072-066 2
CASE-CHAIN 15 36014-1024 1
WASHER PLAIN 6MM 16 411B0600 2
WASHER SPRING 6MM 17 461F0600 2
SCREW PAN HEAD 6X12 18 220B0612 2
