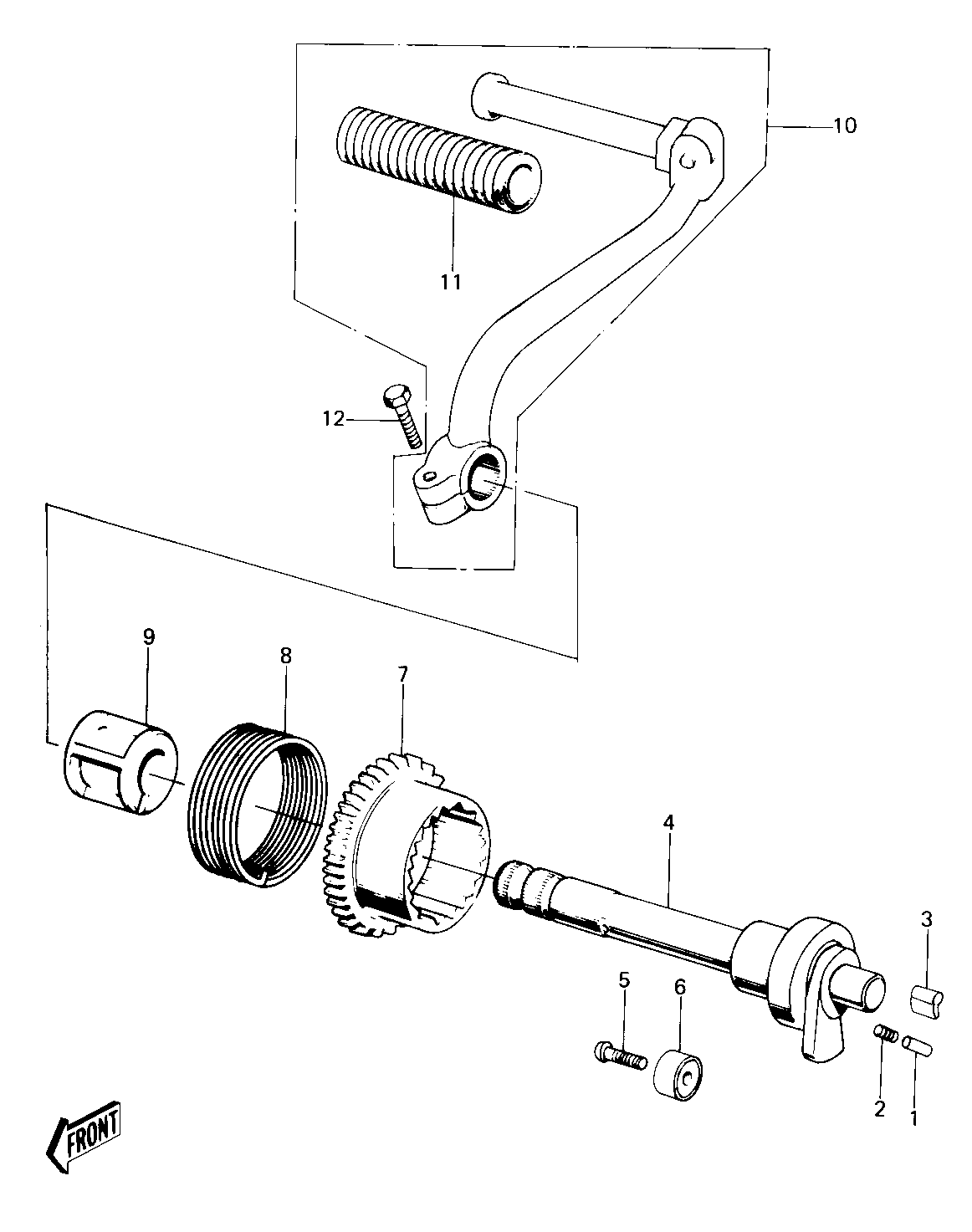

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
P/N,KICKSTARTER PAWL 1 92043-013 1
SPRING, KICKSTARTER 2 92081-014 1
PAWL KICKSTARTER 3 13069-005 1
SHAFT-KICK 4 13066-1022 1
SHAFT-KICK 4 13066-1022 1
SHAFT-KICK 4 13066-1022 1 KE100-A9/A10
SCREW CNTSNK HD 6X20 5 221B0620 1
STOPPER KICKSTARTER 6 13072-003 1
GEAR KICKSTARTER 7 13068-007 1
SPRING KICKSTARTER 8 92083-004 1
GUIDE KICK SPRING 9 13070-003 1
PEDAL, KICKSTARTER 10 13064-007 1
RUBBER KICK PEDAL 11 13063-002 1
BOLT-SMALL-UPSET 8X25 12 115G0825 1
