Parts Diagrams |

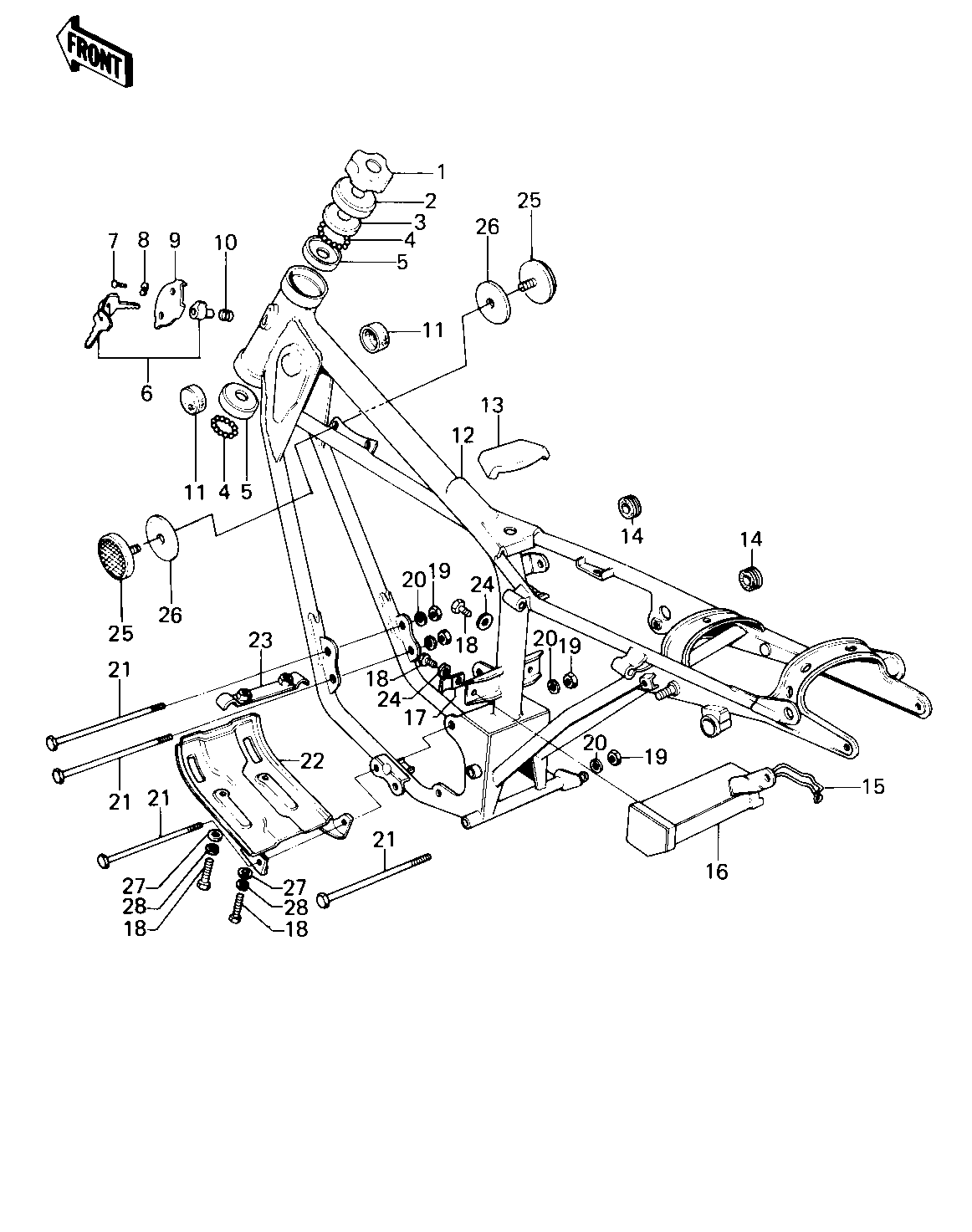

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT STEERING STEM LCK | 1 | 92090-006 | 1 | ||
CAP STEERING STEM | 2 | 46098-004 | 1 | ||
CONE UPPER BEARING | 3 | 92047-005 | 1 | ||
BALL STEEL 3/16' | 4 | 600A0600 | 46 | ||
RACE BEARING | 5 | 92048-004 | 2 | ||
LOCK ASSY,STEERING | 6 | 27016-042 | 1 | ||
SCREW-TAPPING | 7 | 92008-007 | 1 | ||
WASHER | 8 | 92097-003 | 1 | ||
CAP,STEERING LOCK | 9 | 11012-1134 | 1 | ||
CAP,STEERING LOCK | 9 | 11012-1134 | 1 | ||
SPRING-STEERING LOCK | 10 | 27032-001 | 1 | ||
DAMPER RUBBER-FL TANK | 11 | 92075-101 | 2 | ||
FRAME | 12 | 32002-137 | 1 | KE100-A5/A6/A7 | |
FRAME | 12 | 32002-1042 | 1 | KE100-A8/A9 | |
FRAME-COMP | 12 | 32002-1253 | 1 | KE100-A10 | |
DAMPER RUBBER-FL TANK | 13 | 92075-106 | 1 | ||
GROMMET | 14 | 92071-056 | 3 | ||
FASTENER-TOOL CASE | 15 | 92079-002 | 1 | ||
CASE-TOOL | 16 | 32098-018 | 1 | ||
CLAMP-BREATHER PIPE | 17 | 92037-070 | 1 | ||
BOLT-UPSET 6X14 | 18 | 112B0614 | 4 | ||
NUT,10MM | 19 | 314B1000 | 4 | ||
WASHER SPRING 10MM | 20 | 461F1000 | 4 | ||
BOLT,FLANGED,10X115 | 21 | 92001-1603 | 4 | ||
GUARD,ENGINE | 22 | 55011-018 | 1 | ||
BRACKET,ENGINE GUARD | 23 | 55016-007 | 1 | ||
WASHER PLAIN 6MM | 24 | 411B0600 | 2 | ||
REFLECTOR,REFLEX,REAR | 25 | 28012-009 | 2 | ||
DAMPER RUBBER,REFLECT | 26 | 92094-011 | 2 | ||
WASHER PLAIN 6MM | 27 | 410B0600 | 2 | ||
WASHER SPRING 6MM | 28 | 461F0600 | 2 |
NUT STEERING STEM LCK | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP STEERING STEM | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CONE UPPER BEARING | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BALL STEEL 3/16' | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 46 |
DESTINATION | |
REMARKS |
RACE BEARING | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LOCK ASSY,STEERING | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-TAPPING | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,STEERING LOCK | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,STEERING LOCK | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING-STEERING LOCK | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER RUBBER-FL TANK | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FRAME | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KE100-A5/A6/A7 |
FRAME | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KE100-A8/A9 |
FRAME-COMP | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KE100-A10 |
DAMPER RUBBER-FL TANK | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
FASTENER-TOOL CASE | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-TOOL | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP-BREATHER PIPE | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET 6X14 | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,10MM | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER SPRING 10MM | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X115 | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GUARD,ENGINE | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,ENGINE GUARD | |
REF # | 23 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 24 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
REFLECTOR,REFLEX,REAR | |
REF # | 25 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER RUBBER,REFLECT | |
REF # | 26 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 27 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 28 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
