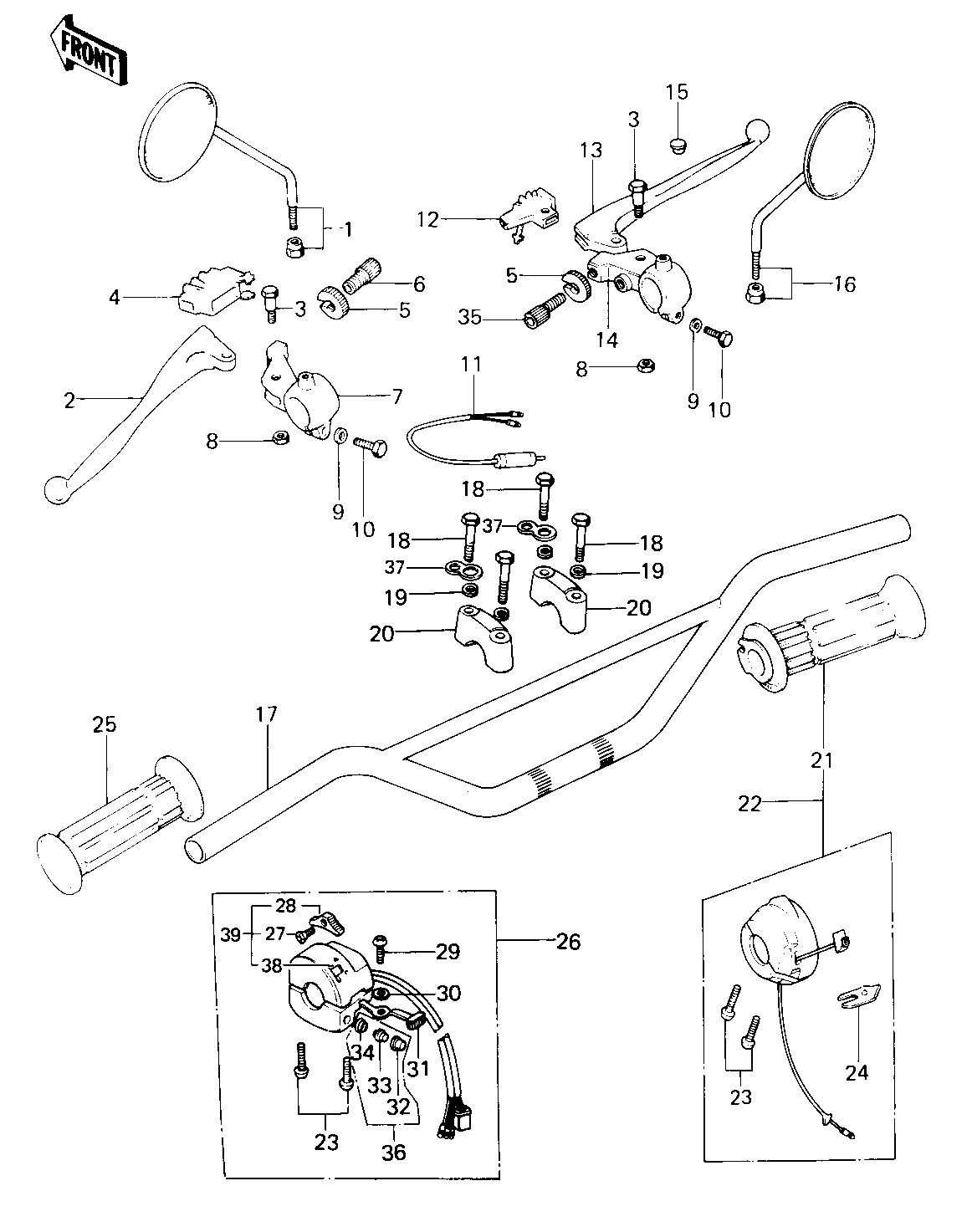

1976 KE100 - HANDLEBAR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REAR VIEW MIRROR,L.H 1 56003-009 1
LEVER-CLUTCH 2 46092-015 1
BOLT,HEX HEAD,5X22 3 92007-046 2
BOOTS,LEVER HOLDER 4 49006-1017 1
BOOTS,LEVER HOLDER 4 49006-1017 1
NUT-LOCK 5 46056-005 2
SCREW CABLE ADJUST 6 46055-003 1
HOLDER-CLUTCH LEV,BLK 7 46094-011-21 1
HOLDER-CLUTCH LEV,BLK 7 46094-011-21 1
NUT-LOCK,5MM 8 92019-014 2
WASHER PLAIN 6MM 9 410B0600 2
BOLT HEX HEAD 6X25 10 110N0625 2
SWITCH-FR. BRAKE LAMP 11 27021-004 1
BOOTS,LEVER HOLDER 12 49006-1017 1
BOOTS,LEVER HOLDER 12 49006-1017 1
LEVER FRONT BRAKE 13 46058-004 1
HOLDER-FR BRK LEV,BLK 14 46060-009-21 1
HOLDER-FR BRK LEV,BLK 14 46060-009-21 1
CAP-RR VIEW MIRROR 15 92102-009 1
PLUG,9.5X8 15 92066-1077 1
REAR VIEW MIRROR,R.H 16 56002-020 (1 OPTION
HANDLEBAR 17 46004-018 1 KE100-A5/A6/A7/A8
HANDLEBAR 17 46003-1059 1 KE100-A9/A10
BOLT 8X38 18 92001-1405 4
BOLT HEX HEAD 18 114N0835 4
WASHER SPRING 8MM 19 461F0800 4
HOLDER-HANDLEBAR 20 46012-008 2
GRIP ASSY,THROTTLE 21 46019-039 1
CASE ASSY,R.H 22 46018-047 1
SCREW-PAN-CROS,5X25 23 220B0525 4
HOLDER,CONTROL 24 46037-024 1
RUBBER,L.H GRIP 25 46075-029 1
CASE ASSY,L.H 26 46091-040 1
SCREW CNTSNK HD 3X8 27 221B0308A 1
KNOB-L.H SWITCH 28 46044-011 1
SCREW PAN HEAD 3X5 29 220B0305A 1
WASHER 30 92095-010 1
KNOB-SWITCH 31 46044-010 1
SWITCH ASSY,HORN BUTN 32 27010-1009 1
SWITCH ASSY,HORN BUTN 33 27010-1009 1
SWITCH ASSY,HORN BUTN 34 27010-1009 1
SCREW CABLE ADJUST 35 46055-003 1 KE100-A5/A6
SCREW,CABLE ADJUST 35 46055-010 1 KE100-A7/A8/A9/A10
SWITCH ASSY,HORN BUTN 36 27010-1009 1
CLAMP-CABLE 37 92037-075 2 KE100-A5/A6
SWITCH ASSY,L.H 38 46089-015 1
L.H GRIP SWITCH KIT 39 99990-531 1
