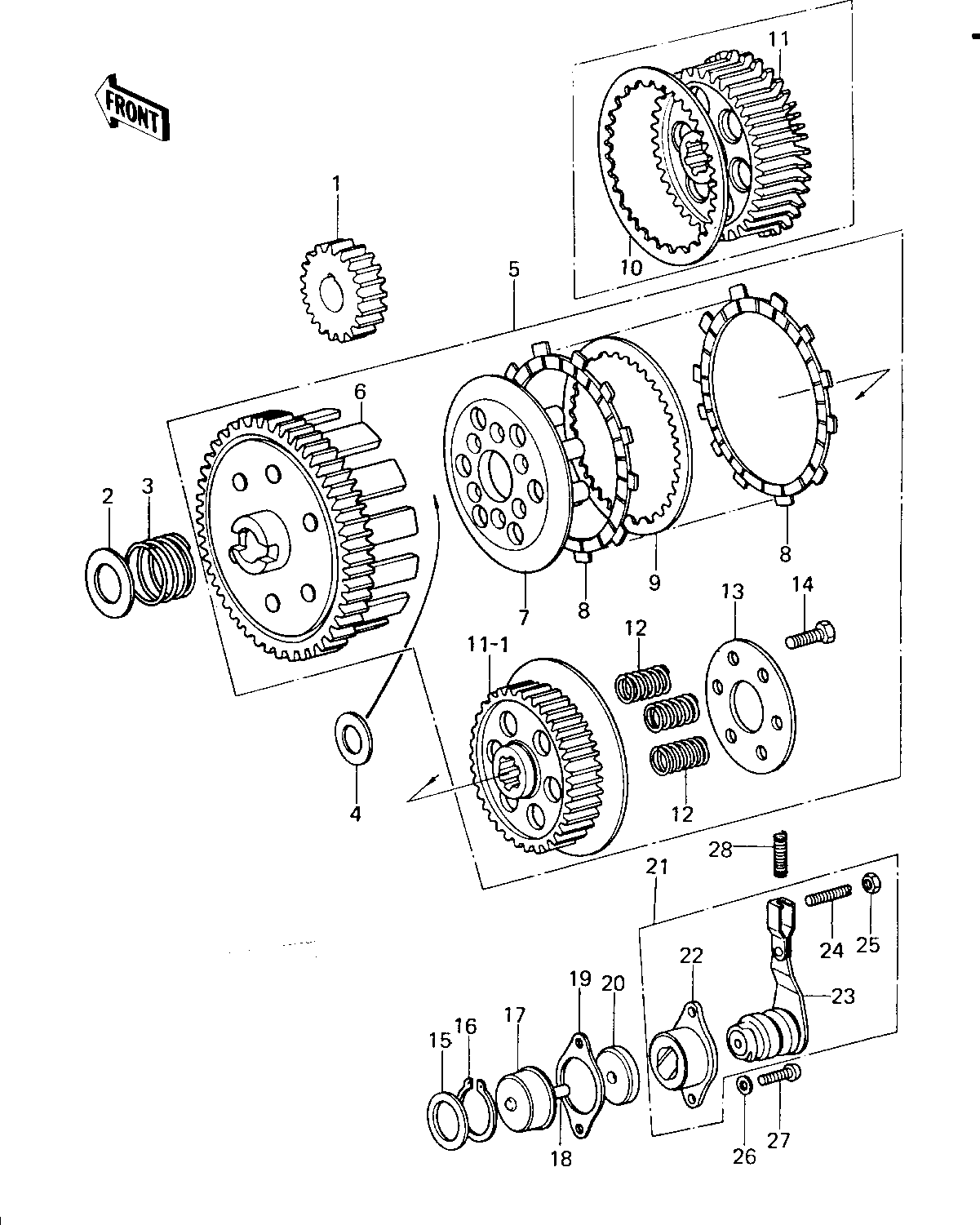

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PINION,PRIMARY | 1 | 13121-032 | 1 | ||
WASHER PLAIN | 2 | 92022-057 | 1 | O.D. = 3.6 | |
SPRING CLUTCH DAMPER | 3 | 92081-015 | 1 | ||
WASHER THRUST CLUTCH | 4 | 92022-054 | 1 | O.D. = 27 | |
CLUTCH-ASSY | 5 | 13081-028 | 1 | ||
HOUSING CLUTCH | 6 | 13095-022 | 1 | ||
WHEEL,CLUTCH | 7 | 13086-1002 | 1 | KM100-A1/A2/A3/A3A/A4 | |
WHEEL,CLUTCH | 7 | 13086-1002 | 1 | KM100-A6~ | |
PLATE-FRICTION | 8 | 13088-1103 | 4 | ||
PLATE-CLUTCH,STEEL | 9 | 13089-1009 | 3 | ||
PLATE CLUTCH OUTER | 10 | 13090-004 | 1 | NOT REQUIRED FOR 13087-1011 | |
HUB,CLUTCH | 11 | 13087-1011 | 1 | KM100-A1/A2/A3/A3A/A4 | |
HUB,CLUTCH | 11-1 | 13087-1011 | 1 | KM100-A6~ | |
SPRING CLUTCH | 12 | 92081-012 | 6 | ||
HOLDER,CLUTCH SPRING | 13 | 13091-1115 | 1 | ||
BOLT-UPSET | 14 | 112G0516 | 6 | ||
WASHER THRUST | 15 | 92022-053 | 1 | O.D. = 21 | |
CIRCLIP 16MM | 16 | 480J1600 | 1 | ||
UNAVAILABLE IN PRICE BOOK | 13113- | 1 | |||
PIN,DOWEL | 18 | 92042-043 | 1 | ||
GASKET,CLUTCH RELEASE | 19 | 11060-1197 | 1 | ||
OIL SEAL | 20 | 92050-071 | 1 | ||
RELEASE-ASSY-CLUTCH | 21 | 13231-1008 | 1 | ||
RELEASE-ASSY-CLUTCH | 22 | 13231-1008 | 1 | ||
RELEASE-ASSY-CLUTCH | 23 | 13231-1008 | 1 | ||
SCREW,SLOTTED,6X16 | 24 | 291H0616 | 1 | ||
NUT 6MM | 25 | 312B0600 | 1 | ||
WASHER PLAIN 6MM | 26 | 410B0600 | 2 | ||
SCREW PAN HEAD 6X16 | 27 | 220B0616 | 2 | ||
SPRING-CLUTCH RELEASE | 28 | 92081-096 | 1 |
PINION,PRIMARY | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER PLAIN | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | O.D. = 3.6 |
SPRING CLUTCH DAMPER | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER THRUST CLUTCH | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | O.D. = 27 |
CLUTCH-ASSY | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING CLUTCH | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WHEEL,CLUTCH | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KM100-A1/A2/A3/A3A/A4 |
WHEEL,CLUTCH | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KM100-A6~ |
PLATE-FRICTION | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PLATE-CLUTCH,STEEL | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
PLATE CLUTCH OUTER | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | NOT REQUIRED FOR 13087-1011 |
HUB,CLUTCH | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KM100-A1/A2/A3/A3A/A4 |
HUB,CLUTCH | |
REF # | 11-1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KM100-A6~ |
SPRING CLUTCH | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
HOLDER,CLUTCH SPRING | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER THRUST | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | O.D. = 21 |
CIRCLIP 16MM | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
UNAVAILABLE IN PRICE BOOK | |
REF # | 13113- |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,DOWEL | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,CLUTCH RELEASE | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELEASE-ASSY-CLUTCH | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELEASE-ASSY-CLUTCH | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELEASE-ASSY-CLUTCH | |
REF # | 23 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,SLOTTED,6X16 | |
REF # | 24 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT 6MM | |
REF # | 25 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 26 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X16 | |
REF # | 27 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING-CLUTCH RELEASE | |
REF # | 28 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
