Parts Diagrams |

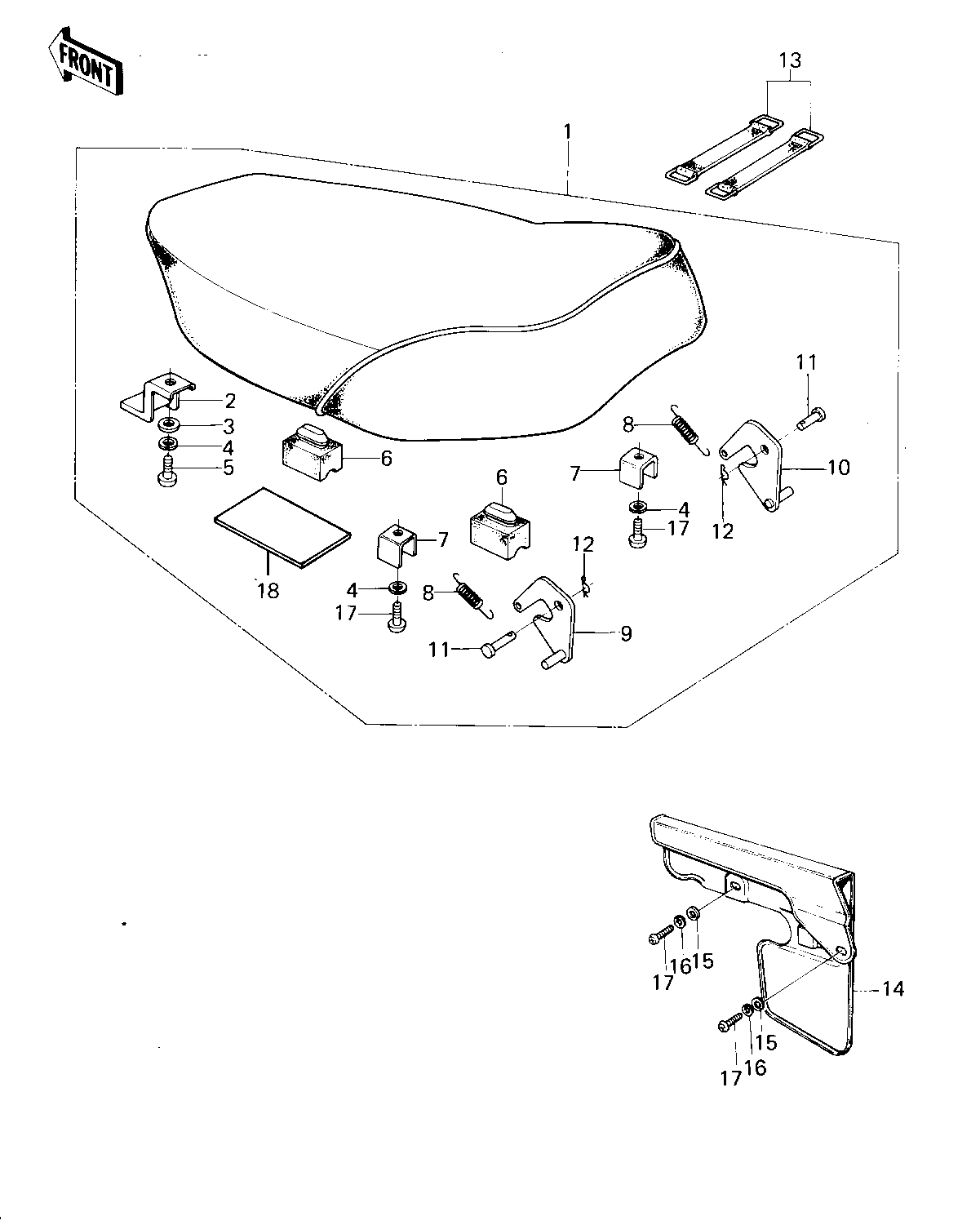

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SEAT-ASSY | 1 | 53001-1018 | 1 | KM100-A1/A2/A3/A3A | |
SEAT-ASSY | 1 | 53001-1018 | 1 | KM100-A4 | |
SEAT-ASSY | 1 | 53001-1460 | 1 | KM100-A6~ | |
BRACKET,SEAT | 2 | 53032-004 | 1 | ||
WASHER 6.5X20X1.6T | 3 | 92022-125 | 1 | ||
WASHER SPRING 6MM | 4 | 461F0600 | 3 | ||
SCREW PAN HEAD 6X14 | 5 | 220B0614 | 1 | ||
DAMPER RUBBER | 6 | 92075-099 | 6 | ||
SPRING,SEAT HOOK | 7 | 53012-012 | 2 | ||
SPRING,HOOK | 8 | 53012-013 | 2 | ||
HOOK,L.H SEAT | 9 | 53008-031 | 1 | ||
HOOK,R.H SEAT | 10 | 53008-032 | 1 | ||
PIN DUAL SEAT PIVOT | 11 | 53011-001 | 2 | ||
COTTER PIN | 12 | 92041-003 | 2 | ||
BAND,TOOL | 13 | 92072-066 | 2 | ||
CASE-CHAIN | 14 | 36014-1024 | 1 | KM100-A1/A2/A3/A3A/A4 | |
CASE-CHAIN | 14 | 36014-1024 | 1 | KM100-A6~ | |
WASHER PLAIN 6MM | 15 | 411B0600 | 2 | KM100-A1/A2/A3/A3A/A4 | |
WASHER SPRING 6MM | 16 | 461F0600 | 2 | ||
SCREW PAN HEAD 6X12 | 17 | 220B0612 | 4 | ||
DAMPER RUBBER,BATERY | 18 | 92075-224 | 1 | KM100-A4~ |
SEAT-ASSY | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KM100-A1/A2/A3/A3A |
SEAT-ASSY | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KM100-A4 |
SEAT-ASSY | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KM100-A6~ |
BRACKET,SEAT | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER 6.5X20X1.6T | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X14 | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
SPRING,SEAT HOOK | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,HOOK | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOOK,L.H SEAT | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOOK,R.H SEAT | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN DUAL SEAT PIVOT | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COTTER PIN | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,TOOL | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CASE-CHAIN | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KM100-A1/A2/A3/A3A/A4 |
CASE-CHAIN | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KM100-A6~ |
WASHER PLAIN 6MM | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | KM100-A1/A2/A3/A3A/A4 |
WASHER SPRING 6MM | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X12 | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER RUBBER,BATERY | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KM100-A4~ |
