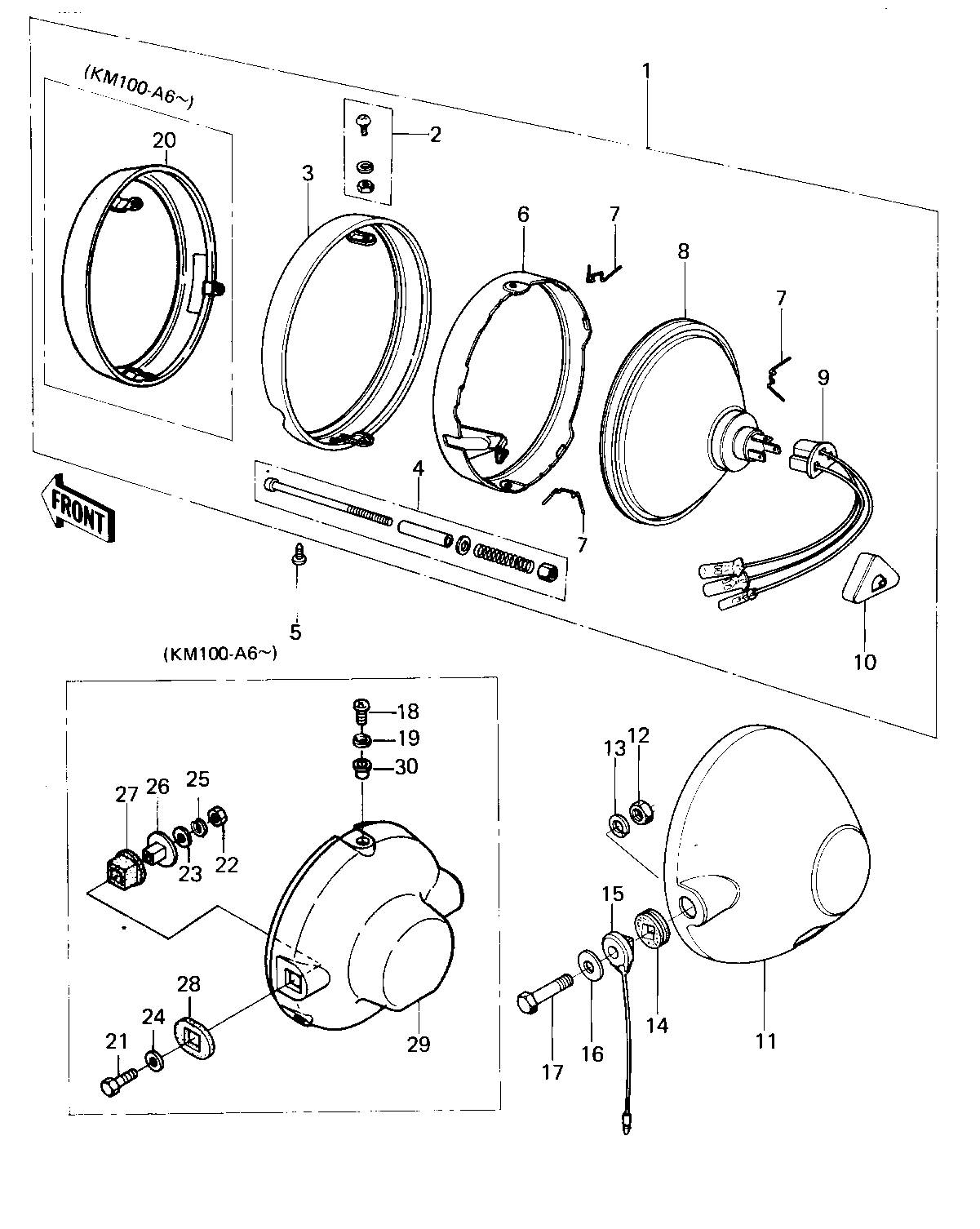

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LAMP UNIT,HEAD | 1 | 23003-024 | 1 | KM100-A1/A2/A3/A3A/A4 | |
LAMP UNIT,HEAD | 1 | 23004-1030 | 1 | KM100-A6~ | |
SCREW SET,LENS UNIT | 2 | 23013-007 | 2 | ||
RIM,HEAD LAMP | 3 | 23006-042 | 1 | USE FOR 23003-024 | |
SCREW ASSY,FOCUS AJST | 4 | 23013-5001 | 1 | ||
SCREW,PAN HEAD,5X14 | 5 | 23019-025 | 1 | KM100-A1/A2/A3/A3A/A4 | |
RETAINER,SEALED BEAM | 6 | 23072-002 | 1 | ||
CLAMP,HEAD LAMP LENS | 7 | 23009-015 | 3 | ||
SEALED BEAM UNIT | 8 | 23007-055 | 1 | ||
SOCKET ASSY,HD LIGHT | 9 | 23008-044 | 1 | WHN EXH USE 23008-044 | |
SOCKET ASSY,HD LIGHT | 9 | 23008-044 | 1 | ||
COVER,HD LAMP SOCKET | 10 | 23081-001 | 1 | ||
BODY,HEAD LAMP,BLACK | 11 | 23005-049-21 | 1 | KM100-A1/A2/A3/A3A/A4 | |
NUT,10MM | 12 | 314B1000 | 2 | KM100-A1/A2/A3/A3A/A4 | |
WASHER SPRING 10MM | 13 | 461F1000 | 2 | KM100-A1/A2/A3/A3A/A4 | |
DAMPER RUBBER | 14 | 23066-010 | 2 | KM100-A1/A2/A3/A3A/A4 | |
COLLAR | 15 | 23076-002 | 2 | KM100-A1/A2/A3/A3A/A4 | |
WASHER-PLAIN,10MM | 16 | 411D1000 | 2 | KM100-A1/A2/A3/A3A/A4 | |
BOLT,HEX HEAD,10X30 | 17 | 92007-041 | 2 | KM100-A1/A2/A3/A3A/A4 | |
SCREW PAN HEAD 5X12 | 18 | 220B0512 | 3 | KM100-A6~ | |
WASHER SPRING 6MM | 19 | 461F0600 | 3 | KM100-A6~ | |
RIM,HEAD LAMP | 20 | 23006-1004 | 1 | KM100-A6~ | |
BOLT-SMALL,8X32 | 21 | 114N0832 | 2 | KM100-A6~ | |
NUT,8MM | 22 | 311B0800 | 2 | KM100-A6~ | |
WASHER PLAIN 8MM | 23 | 411B0800 | 2 | KM100-A6~ | |
WASHER,PLAIN,8MM | 24 | 411D0800 | 2 | KM100-A6~ | |
WASHER SPRING 8MM | 25 | 461F0800 | 2 | KM100-A6~ | |
COLLAR,HEAD LAMP | 26 | 92027-1105 | 2 | KM100-A6~ | |
DAMPER RUBBER,HD LAMP | 27 | 92075-1077 | 2 | KM100-A6~ | |
DAMPER RUBBER,HD LAMP | 28 | 92075-1078 | 2 | KM100-A6~ | |
BODY,HEAD LAMP,BLACK | 29 | 23005-1007-6Z | 1 | KM100-A6~ | |
WASHER | 30 | 23021-010 | 3 | KM100-A6~ |
