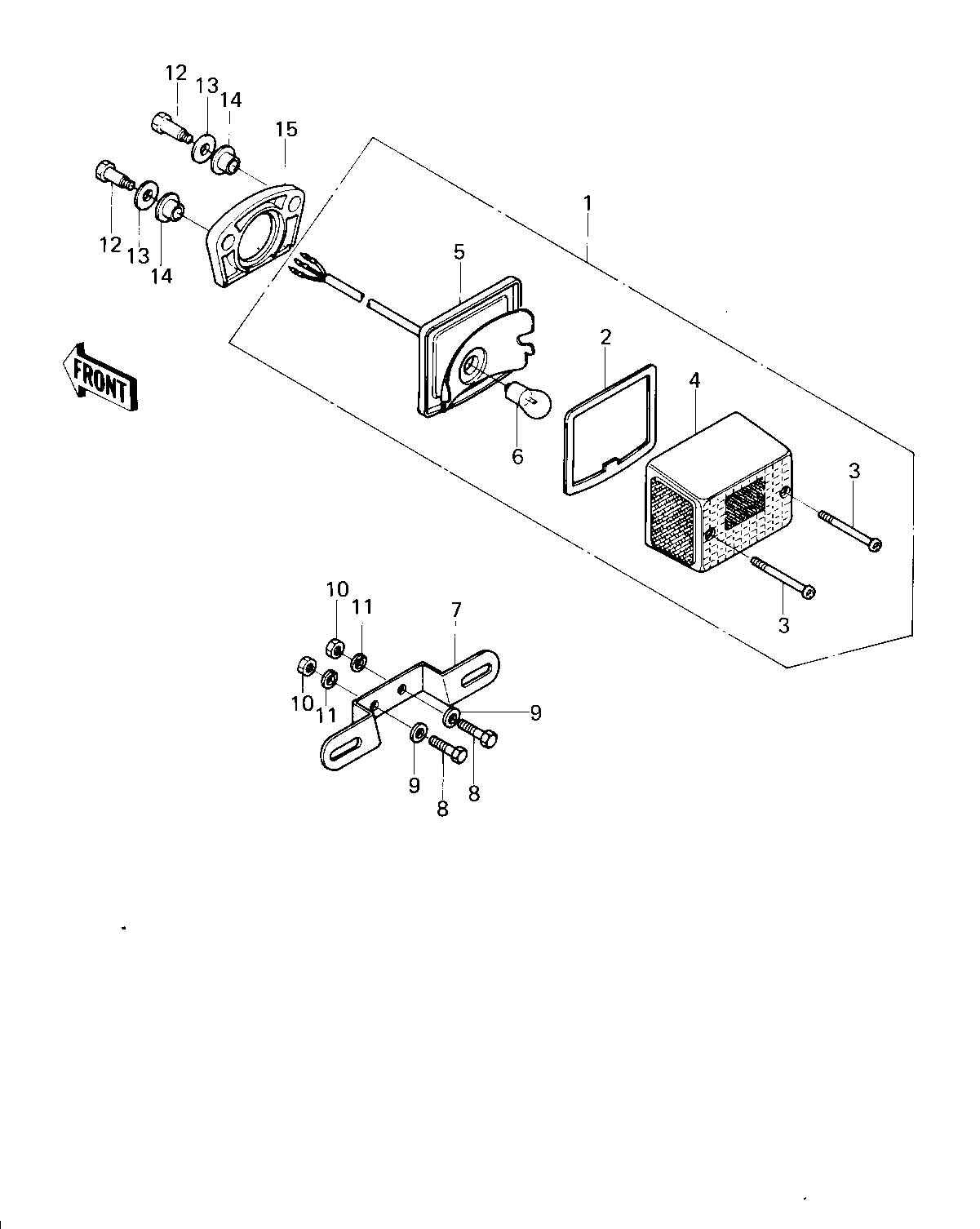

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-TAIL 1 23025-1034 1
LAMP-TAIL 1 23025-1034 1 KM100-A7~
GASKET,TAIL LAMP LENS 2 11009-1078 1
SCREW,PAN HEAD,4X40 3 220E0440A 2
LENS,TAIL LAMP 4 23026-1003 1
BODY-COMP-TAIL LAMP 5 23027-1021 1
BODY-COMP-TAIL LAMP 5 23027-1021 1 USE FOR 23025-1034
BULB,60-32/3CP 6 92069-074 1
BRACKET,LICENSE 7 11034-1626 1
BOLT-UPSET,6X12 8 112G0612 2
WASHER PLAIN 6MM 9 411B0600 2
NUT 6MM 10 311B0600 2
WASHER SPRING 6MM 11 461F0600 2
BOLT,HEX HEAD 12 92001-1118 2
WASHER,8.5X20X1.6 13 92022-1561 2
DAMPER RUBBER 14 92075-1095 2
DAMPER RUBBER,TL LAMP 15 92075-1094 1
