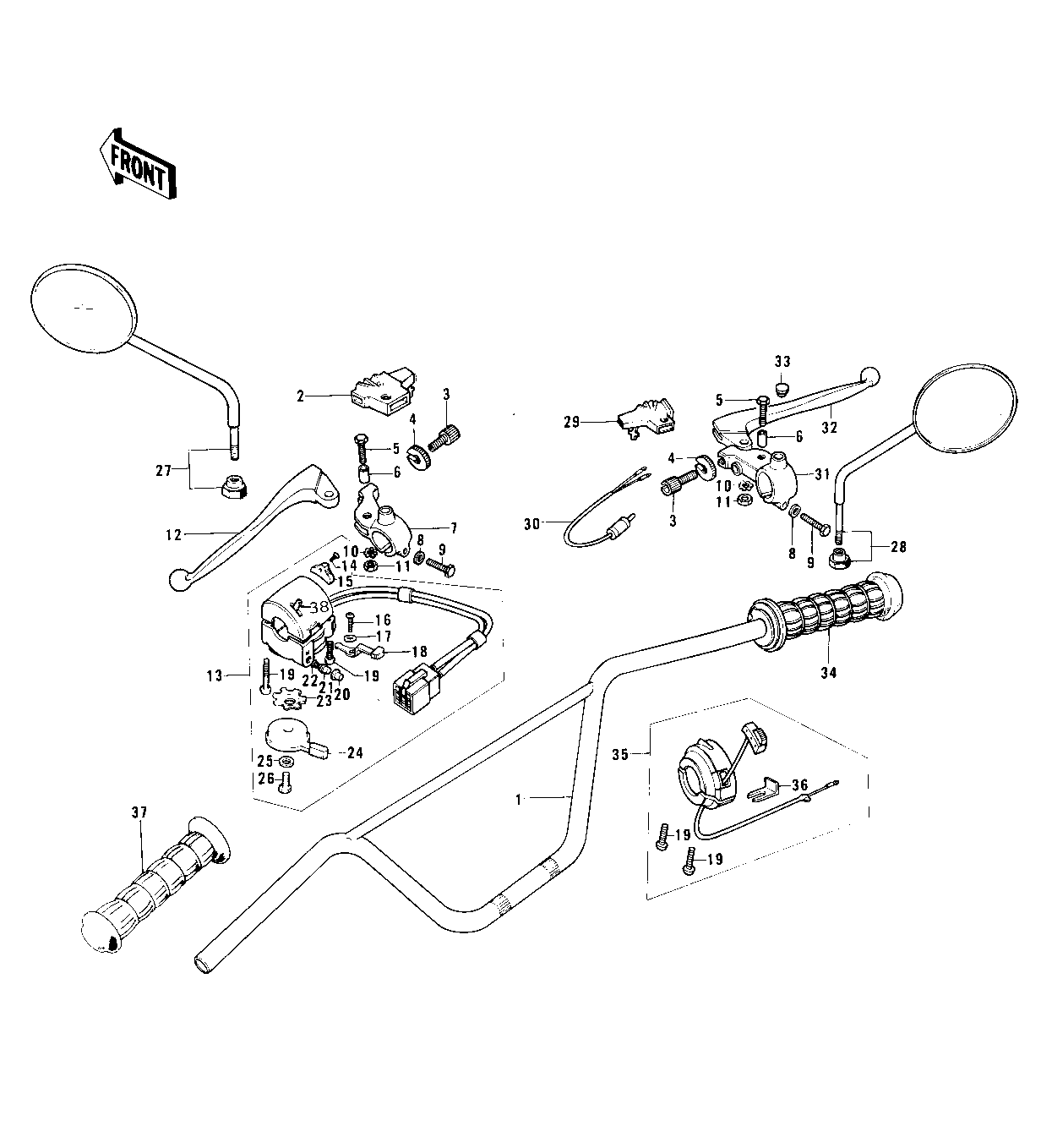

1974 KS125 - HANDLEBAR ('74-'75)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR 1 46004-027 1
BOOTS,LEVER HOLDER 2 49006-1017 1
SCREW CABLE ADJUST 3 46055-003 2
NUT-LOCK 4 46056-005 2
BOLT HEX HEAD 5X20 5 92007-020 2
BOLT,HEX HEAD,5X22 5 92007-046 2
COLLAR LEVER 6 46059-011 2 N.R. FOR 92007-046
HOLDER-CLUTCH LEV,BLK 7 46094-011-21 1 BLACK
WASHER PLAIN 6MM 8 410B0600 2
BOLT-UPSET 9 112G0625 2
WASHER LOCK 5MM 10 464H0500 2 N.R. FOR 92007-046
NUT 5MM 11 312B0500 2
NUT-LOCK,5MM 11 92019-014 2
LEVER-CLUTCH 12 46092-015 1
CASE ASSY,L.H.BLACK 13 46091-023-21 1 FLAT BLACK
L.H GRIP SWITCH KIT 14,15, 99990-531 1
SCREW CNTSNK HD 3X8 14 221B0308A 1
KNOB-L.H SWITCH 15 46044-011 1
SCREW PAN HEAD 3X5 16 220B0305A 1
WASHER 17 92095-010 1
KNOB-SWITCH 18 46044-010 1
SCREW-PAN-CROS,5X25 19 220B0525 1
SWITCH ASSY,HORN BUTN 20 27010-1009 1
SWITCH ASSY,HORN BUTN 21 27010-1009 1
SWITCH ASSY,HORN BUTN 22 27010-1009 1
WASHER LOCK 23 92095-012 1
LEVER,STARTER,BLACK 24 46096-008-10 1 BLACK
WASHER PLAIN 6MM 25 410B0600 1
BOLT,6X10 26 112G0610 1
REAR VIEW MIRROR,L.H 27 56003-009 1
REAR VIEW MIRROR,R.H 28 56002-020 1 OPTION
BOOTS,LEVER HOLDER 29 49006-1017 1
SWITCH-FR. BRAKE LAMP 30 27021-004 1
HOLDER-FR BRK LEV,BLK 31 46060-009-21 1 BLACK
LEVER FRONT BRAKE 32 46058-004 1
CAP-RR VIEW MIRROR 33 92102-009 1 NOT REQUIRED 56003-011
GRIP ASSY,THROTTLE 34 46019-034 1
CASE ASSY,R.H 35 46018-036 1
HOLDER,CONTROL CABLE 36 46037-023 1
RUBBER-L.H GRIP 37 46075-019 1
SWITCH ASSY,L.H 38 46089-015 1
