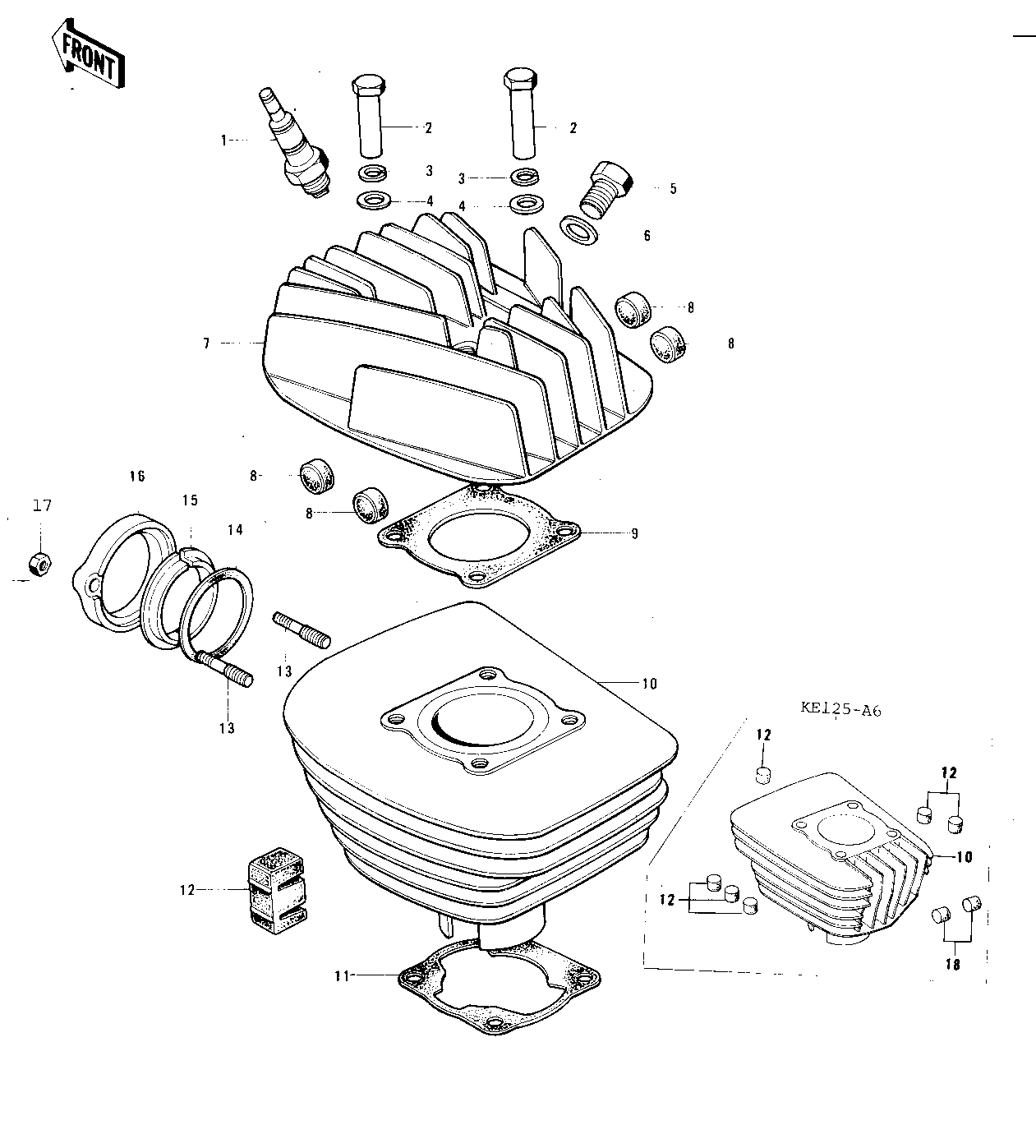

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPARK PLUG B7HS 1 B7HS 1
NUT 8MM 2 92015-020 4
WASHER SPRING 12MM 3 461F1200 4
WASHER PLAIN 12MM 4 92022-072 4
PLUG-CYLINDER HEAD 5 92067-005 1
GASKET-CYL HEAD PLUG 6 92065-068 1
CYLINDER HEAD,BLACK 7 11001-091-21 1 FLAT BLACK
DAMPER RUBBER 8 92075-075 9
GASKET,CYLINDER HEAD 9 11004-064 1
CYLINDER,F.BLACK 10 11005-1030 1 FLAT BLACK
CYLINDER 10 11005-1001 1 KE125-A6
GASKET,CYLINDER BASE 11 11009-037 1
DAMPER RUBBER,CYLNDR 12 92075-247 4
DAMPER RUBBER-CYL-HD 12 92075-109 6 KE125-A6
STUD 13 92004-029 2
GASKET EXHAUST PIPE 14 18067-008 1
INSERT,EXHAUST HOLDER 15 18070-007 1
HOLDER,EXHAUST PIPE 16 18069-057 1
NUT,LOCK 6MM 17 92017-014 2
DAMPER RUBBER-CYL HD 18 92075-117 2 KE125-A6
