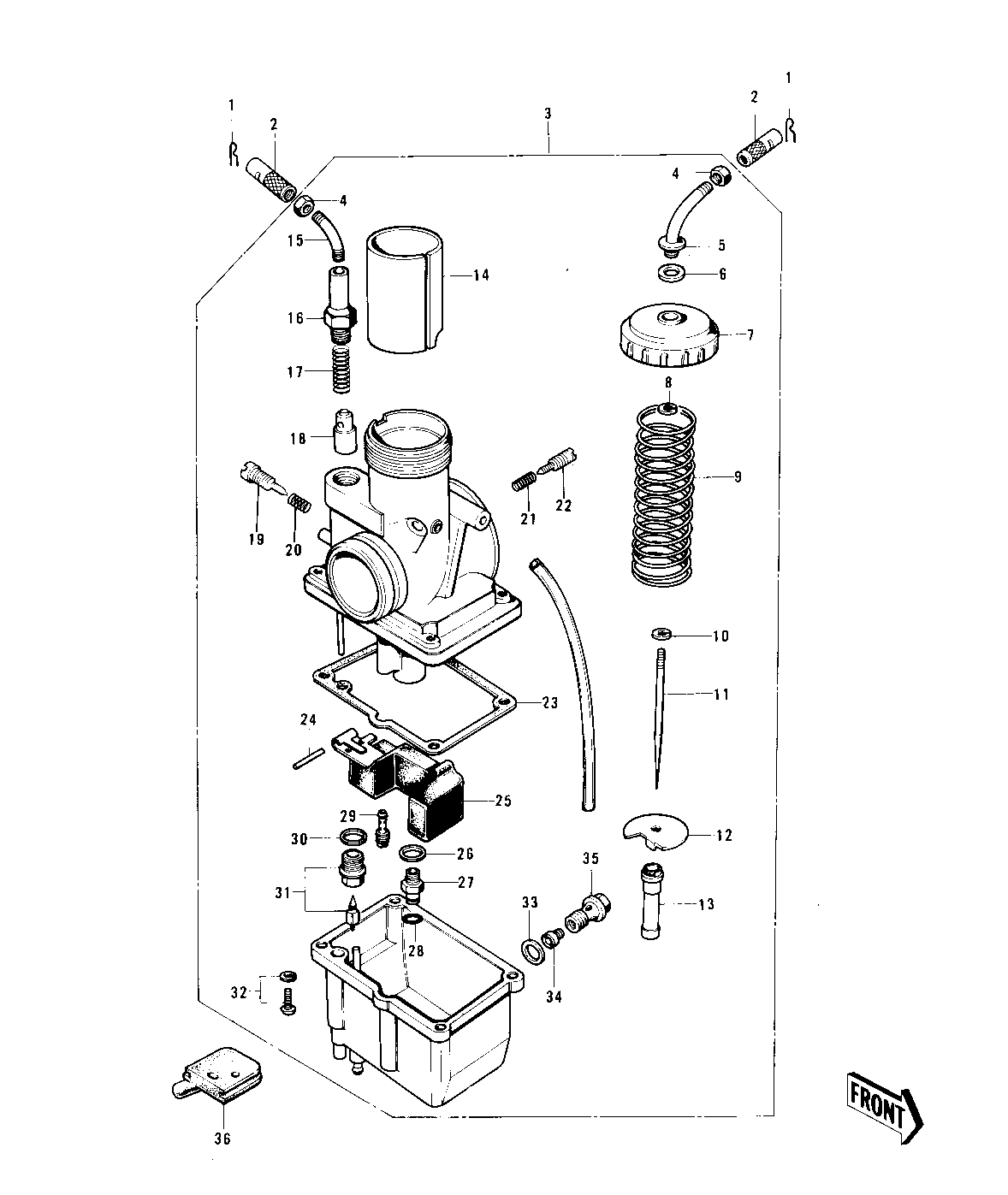

1978 KE125 - CARBURETOR (KE125-A3/A4/A5)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 1 92036-018 2
CABLE ADJUSTER 2 16002-007 2
CARBURETOR ASSY 3 16001-199 1
NUT CABLE ADJUST LOCK 4 16003-004 2
GUIDE,CABLE 5 16077-011 1
GASKET,CABLE GUIDE 6 16029-007 1
CAP,MIXING CHAMBER 7 16004-024 1
CIRCLIP,CABLE GUIDE 8 16008-011 1
SPRING,THROTTLE VALVE 9 16006-029 1
CIRCLIP 10 16008-010 1
JET NEEDLE 4EJ3 11 16009-040 1
SPRING SEAT,THRTL VL 12 16007-023 1
NEEDLE JET,O-4 13 16017-085 1
VALVE,THROTTLE 14 16025-079 1 CA 2.5
GUIDE,CABLE 15 16077-010 1
CAP,STARTER PLUNGER 16 16012-017 1
SPRING-PLUNGER 17 16013-003 1
PLUNGER-ENRICHNER 18 16016-002 1
SCREW,THROTTLE STOP 19 16021-023 1
SPRING THR STOP SCREW 20 16022-005 1
SPRING-THR STOP SCREW 21 16022-007 1
SCREW PILOT AIR ADJST 22 16014-002 1
GASKET,FLOAT CHAMBER 23 16019-023 1
FLOAT PIN 24 16032-006 1
FLOAT 25 16031-026 1
WASHER MAIN JET 26 16034-001 1
HOLDER-NEEDLE JET 27 16065-008 1
"0" RING 28 92055-044 1
JET-PILOT NO 30 29 92064-022 1
WASHER FLOAT VLV SEAT 30 16029-004 1
FLOAT VALVE ASSY,#2.6 31 16030-025 1
SCREW-PAN-WS-CROS 32 223B0414 1
GASKET-BANJO BOLT 33 16034-005 1
MAIN JET,#A100 34 92063-1033 1 S.T.D.
BOLT-BANJO 35 92001-097 1
GROMMET,OVERFLOW 36 16136-009 1
