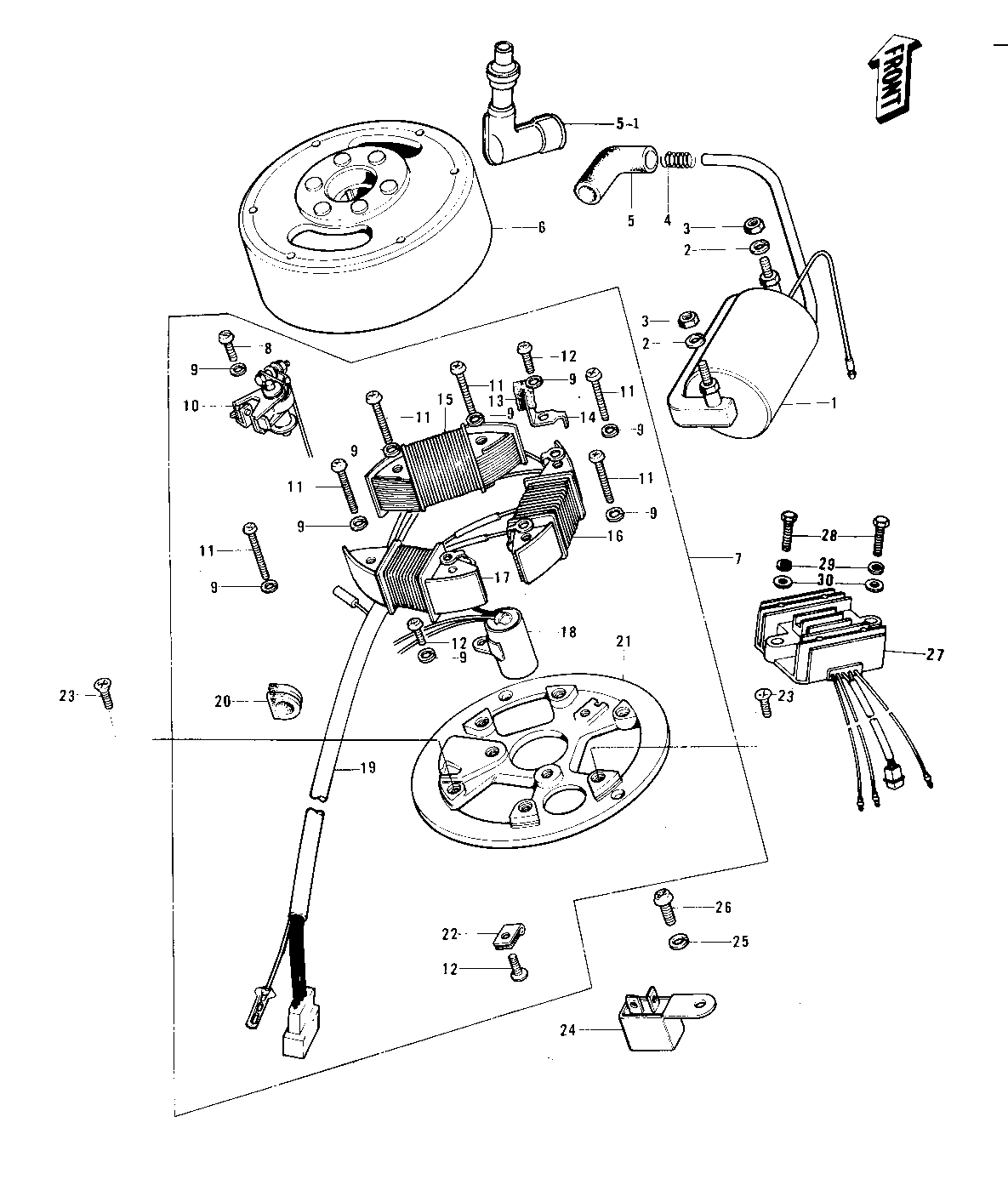

1978 KE125 - IGNITION/GENERATOR/REGULATOR ('76-'79)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL,IGNITION 1 21121-1047 1
WASHER SPRING 6MM 2 461F0600 2
NUT 6MM 3 311B0600 2
SPRING-SPARK PLUG CAP 4 92101-001 1
CAP SPARK PLUG 5 21130-009 1
CAP,SPARK PLUG 5-1 21160-005 1 USE FOR CANADIAN MARKET
FLYWHEEL 6 21050-016 1
FLYWHEEL,MAGNETO 6 21050-1008 1 KE125-A6
STATOR ASSY 7 21003-025 1
STATOR ASSY 7 21003-1014 1 KE125-A6
SCREW-PAN-CRSOSS,4X12 8 220B0412 1
WASHER SPRING 4MM 9 461F0400 9
BREAKER ASSY CONTACT 10 21008-006 1
SCREW PAN HEAD 4X30 11 220E0430 6
SCREW PAN HEAD 4X6 12 220B0406 3
FELT OIL 13 21019-005 1
HOLDER,OIL FELT 14 21038-002 1
COIL,LIGHTING 15 21047-1007 1
COIL,CHARGING B 15 59031-1002 1 KE125-A6
COIL A LIGHTING 16 21047-019 1
COIL,CHARGING A 16 59031-1001 1 KE125-A6
COIL,EXCITING 17 21049-1004 1
COIL,EXCITING 17 21049-1004 1 KE125-A6
CONDENSER 18 21013-006 1
WIRING HARNESS,MAGNT 19 21029-028 1
WIRING HARNESS,MAGNET 19 26001-1077 1 KE125-A6
GROMMET WIRING HARN 20 21017-002 1
PLATE-COIL,MAGNETO 21 21048-1002 1
CLAMP WIRING HARNESS 22 21037-002 1
SCREW CNTSNK HD 6X14 23 221B0614 2
RECTIFIER 24 21061-015 1
WASHER PLAIN 5MM 25 411B0500 1
SCREW PAN HEAD 5X10 26 220B0510 1
REGULATOR,VOLTAGE 27 21066-1012 1 KE125-A6
BOLT-UPSET 28 112G0625 1 KE125-A6
WASHER SPRING 6MM 29 461F0600 1 KE125-A6
WASHER PLAIN 6MM 30 411B0600 1 KE125-A6
