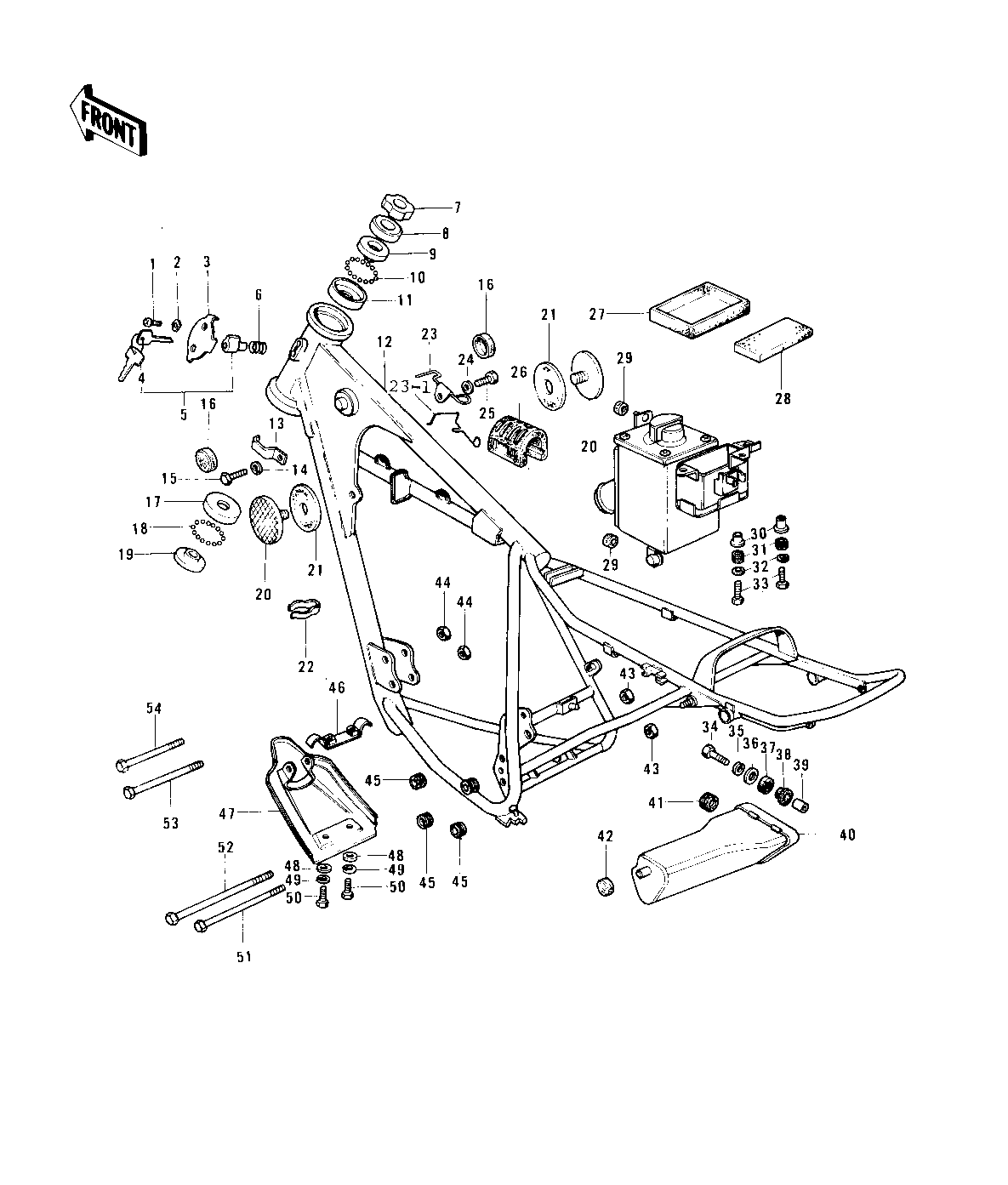

1978 KE125 - FRAME/FRAME FITTINGS ('76-'79)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-TAPPING 1 92008-007 1
WASHER 2 92097-003 1
CAP,STEERING LOCK 3 11012-1134 1
KEY SET #431 4 27008-054-31 1 KE125-A3/A4/A5, REF. GRID E7
KEY SET #432 4 27008-054-32 1 FOR KE125-A6
KEY SET #433 4 27008-054-33 1
KEY SET # 434 4 27008-054-34 1
KEY SET #435 4 27008-054-35 1
KEY SET #436 4 27008-054-36 1
KEY SET #437 4 27008-054-37 1
KEY SET #438 4 27008-054-38 1
KEY SET #439 4 27008-054-39 1
KEY SET #440 4 27008-054-40 1
LOCK ASSY,STEERING 5 27016-042 1
SPRING-STEERING LOCK 6 27032-001 1
NUT,STEERING STEM 7 92090-022 1
CAP,STEERING STEM 8 46098-012 1
CONE,STRG STM BRG,UP 9 92047-014 1
BALL STEEL 3/16' 10 600A0600 23
RACE,STRG STM BEARING 11 92048-009 1
FRAME 12 32002-074 1
FRAME 12 32002-1065 1 KE125-A6
CLAMP,WIRE HARNESS 13 92037-150 1
WASHER SPRING 6MM 14 461F0600 1
BOLT-UPSET 6X14 15 112B0614 1
DAMPER RUBBER-FL TANK 16 92075-101 2
RACE STEERING BEARING 17 92048-005 1
BALL STEEL 1/4' 18 600A0800 19
CONE STERNG BERG LOW 19 92047-010 1
REFLECTOR,REFLEX,REAR 20 28012-009 2
DAMPER RUBBER,REFLECT 21 92094-011 2
CLAMP,CABLE 22 92037-093 1
CLAMP,CABLE 23 92037-176 1
CLAMP,CABLE 23-1 92037-176 1 KE125-A4~
WASHER PLAIN 6MM 24 411B0600 1
BOLT,6X10 25 112G0610 1
BOLT-UPSET,6X12 25 112G0612 1 KE125-A4~
DAMPER RUBBER 26 92075-284 1
MAT-BATTERY SIDE 27 32103-023 1
MAT,BATTERY 28 32103-027 1
DAMPER RUBBER,CLENER 29 92075-217 2
COLLAR 30 92027-153 2
DAMPER RUBBER 31 92075-051 2
WASHER SPRING 6MM 32 461F0600 2
BOLT-UPSET,6X16 33 112G0616 2
BOLT-UPSET 34 112G0625 1
WASHER SPRING 6MM 35 461F0600 1
WASHER,PLAIN,7MM 36 92022-228 1
DAMPER RUBBER 37 92075-175 1
RUBBER,FENDER COVER 38 92075-174 1
COLLAR,REAR FENDER 39 92027-162 1
CASE,TOOL 40 32098-022 1
DAMPER RUBBER-OIL TNK 41 92075-150 1
DAMPER RUBBER 42 92075-107 1
NUT,10MM 43 92015-1429 2
NUT,LOCK,8MM 44 92015-1124 2
GROMMET 45 92071-056 3
BRACKET,ENGINE GUARD 46 55016-008 1
GUARD,ENGINE 47 55011-020 1
WASHER 6.5X20X1.6T 48 92022-125 2
WASHER SPRING 6MM 49 461F0600 2
BOLT-UPSET,6X16 50 112G0616 2
BOLT,HEX HEAD,10X117 51 92001-1246 1
BOLT,FLANGED,10X115 51 92001-1603 1 KE125-A4~
BOLT,HEX HEAD,10X130 52 92001-1249 1
UNAVAILABLE IN PRICE BOOK 53 110B0871 1
BOLT,HEX HEAD,8X65 54 110B0865 1
