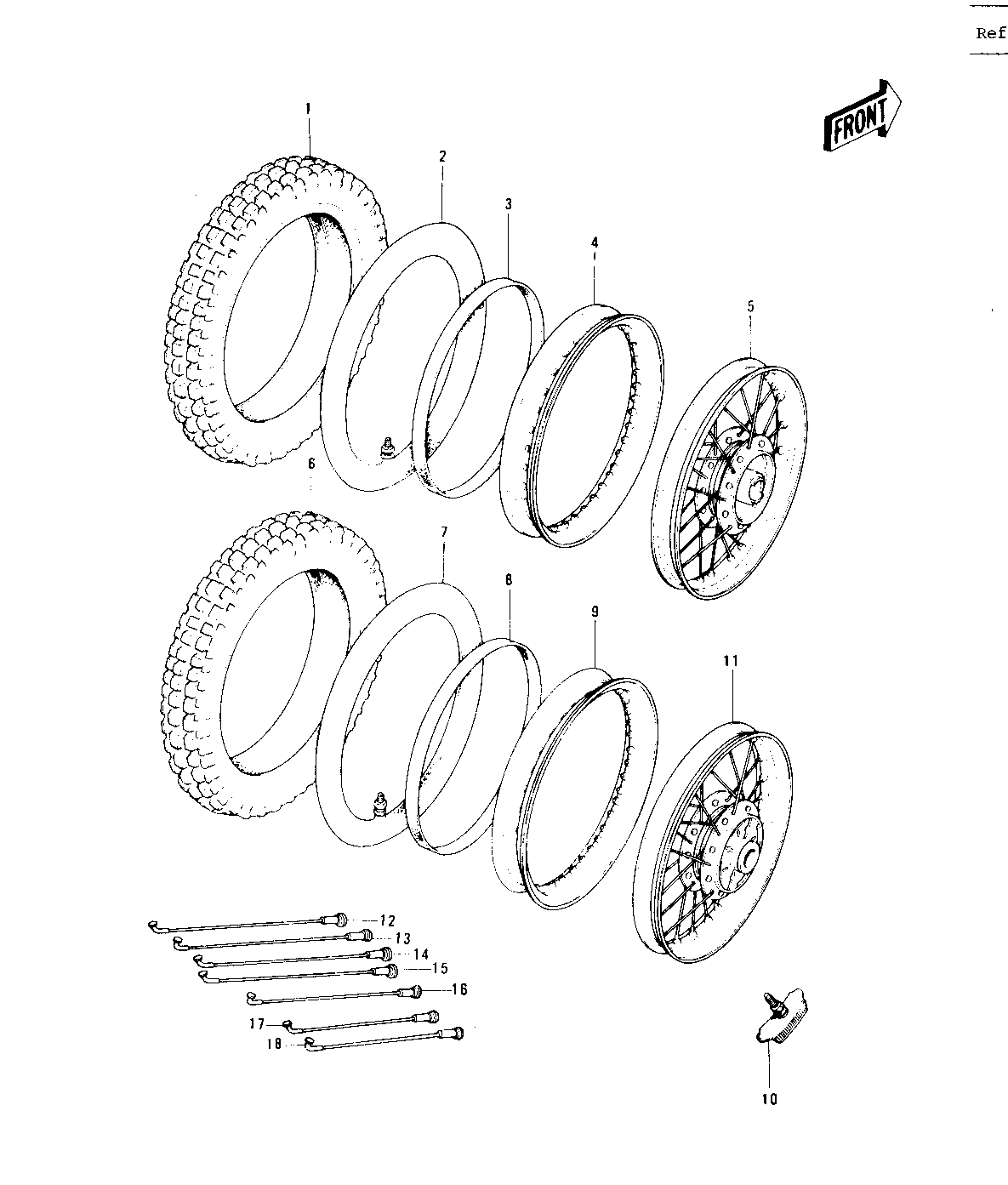

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 275-21 Y965 F | 1 | 41002-1215 | 1 | ||
| *** N.L.A.*** (Canada) | 2 | 41022-025 | 1 | ||
| TUBE,2.75/3.70-21 | 2 | 41022-1021 | 1 | KE125-A4~ | |
| BAND,RIM,3.00-21 | 3 | 41023-1001 | 1 | ||
| RIM,1.60AX21 | 4 | 41025-078 | 1 | ||
| WHEEL ASSY,FRONT | 5 | 41074-037 | 1 | ||
| TIRE 350-18 Y962 R | 6 | 41002-1216 | 1 | ||
| TUBE 3.50-18 | 7 | 41022-027 | 1 | ||
| TUBE 300/325/360-18 | 7 | 41022-028 | 1 | KE125-A4/A5 | |
| UNAVAILABLE IN PRICE BOOK | 7 | 41022-1004 | 1 | KE125-A6 | |
| BAND,RIM,4.00/5.10-18 | 8 | 41023-1006 | 1 | ||
| RIM 1.85BX18W | 9 | 41025-044 | 1 | ||
| PROTECTOR-BEAD 1.85B | 10 | 41024-007 | 1 | ||
| WHEEL ASSY,REAR | 11 | 42048-026 | 1 | ||
| WHEEL ASSY,REAR | 11 | 42048-034 | 1 | KE125-A4~ | |
| SPOKE-ASY,FR INNER | 12 | 41027-068 | 9 | ||
| SPOKE-ASY FR OUTER | 13 | 41028-068 | 9 | ||
| SPOKE-ASY,FR | 14 | 41027-069 | 18 | ||
| SPOKE-ASY,RR INNER L | 15 | 41027-070 | 9 | 106 X 171 M/M | |
| SPOKE-ASY RR OUTER L | 16 | 41028-069 | 9 | 80 X 170 M/M | |
| SPOKE-ASY,RR INNER R | 17 | 41027-071 | 9 | 108 X 167.5 M/M | |
| SPOKE-ASY RR OUTER R | 18 | 41028-070 | 9 | 80 X 166.5 M/M |
