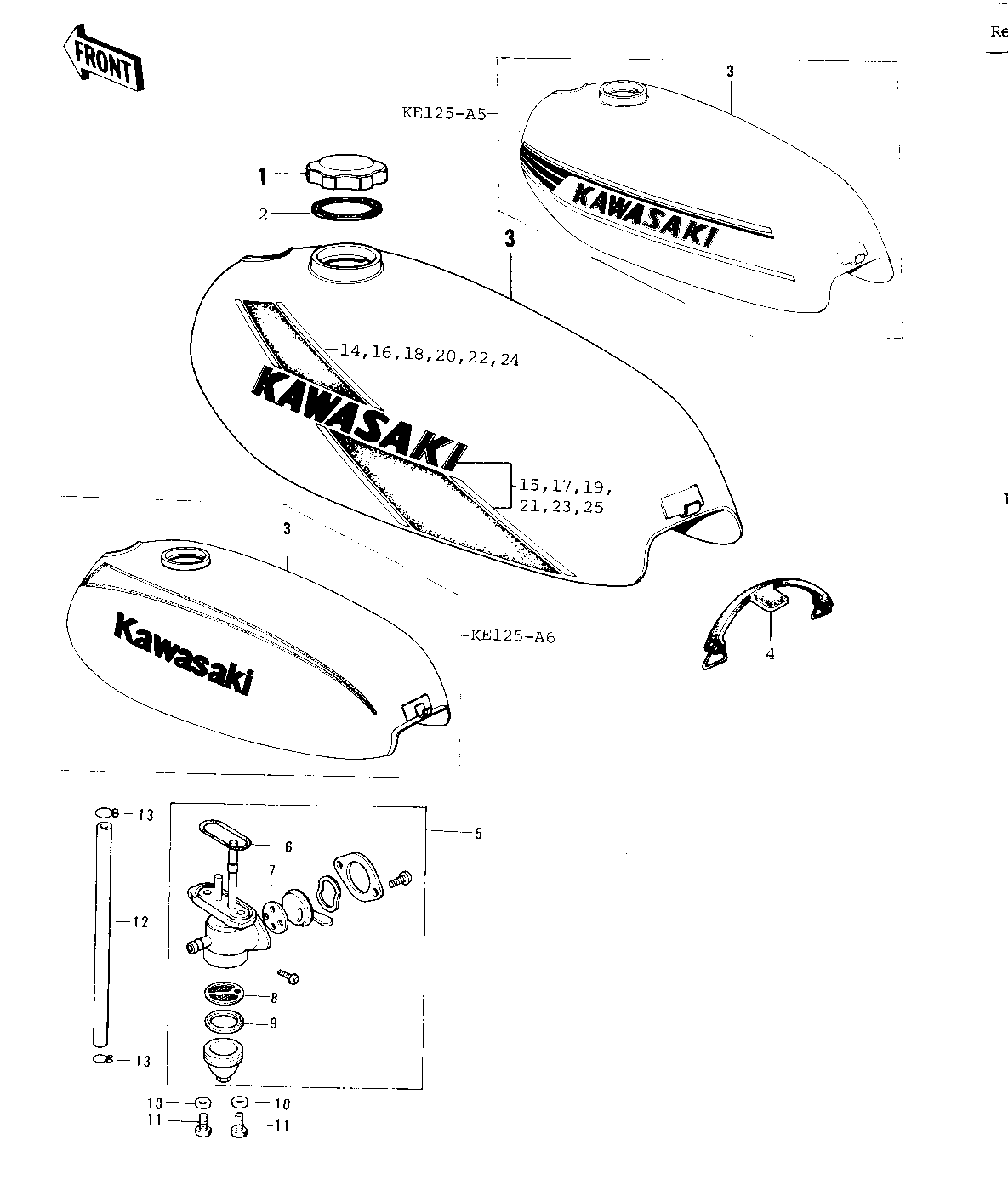

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,FUEL TANK | 1 | 51048-1013 | 1 | ||
GASKET,FUEL TANK CAP | 2 | 51059-011 | 1 | ||
TANK-FUEL,P.YELLOW | 3 | 51001-101-4B | 1 | ||
TANK-FUEL,C.LIGHT RED | 3 | 51001-101-4R | 1 | KE125-A4 | |
TANK-FUEL,C.C.BLUE | 3 | 51001-101-4S | 1 | KE125-A4 | |
TANK-FUEL,C.E.GREEN | 3 | 51001-101-4U | 1 | KE125-A5 | |
TANK-FUEL,F.RED | 3 | 51001-101-B1 | 1 | KE125-A6 | |
TANK-FUEL,MARINE BLUE | 3 | 51001-101-B4 | 1 | KE125-A6 | |
BAND,FUEL TANK | 4 | 92072-049 | 1 | ||
BAND,FUEL TANK | 4 | 92072-075 | 1 | KE125-A4~ | |
TAP ASSY,FUEL | 5 | 51023-1001 | 1 | ||
TAP ASSY,FUEL | 5 | 51023-1001 | 1 | KE125-A6 | |
"O" RING | 6 | 51039-003 | 1 | ||
GASKET-FUEL COCK LEV | 7 | 92065-094 | 1 | ||
STRAINER,FUEL | 8 | 51038-008 | 1 | ||
GASKET FUEL COCK CUP | 9 | 51037-011 | 1 | ||
WASHER-PLAIN | 10 | 92022-183 | 2 | ||
BOLT-HEX HEAD,6X16 | 11 | 92001-114 | 2 | ||
PIPE,FUEL | 12 | 92059-093 | 1 | ||
CLAMP FUEL PIPE | 13 | 92037-010 | 2 | ||
DECAL,FUEL TANK,L.H | 14 | 56027-370-SP | 1 | ||
DECAL,FUEL TANK,L.H | 15 | 56027-371-SP | 1 | ||
DECAL,FUEL TANK,R.H | 16 | 56027-372-SP | 1 | ||
DECAL,FUEL TANK,R.H | 17 | 56027-373-SP | 1 | ||
DECAL,L.H FL TK,UPPER | 18 | 56029-050-SP | 1 | USE FOR KE125-A4 C.L. | |
DECAL,L.H FL TK,LOWER | 19 | 56029-051-SP | 1 | USE FOR KE125-A4 C.L. | |
DECAL,R.H FL TK,UPPER | 20 | 56029-052-SP | 1 | USE FOR KE125-A4 C.L. | |
DECAL,R.H FL TK,LOWER | 21 | 56029-053-SP | 1 | USE FOR KE125-A4 C.L. | |
*** N.L.A.*** (Canada) | 22 | 56029-054-SP | 1 | USE FOR KE125-A4 C.C. | |
*** N.L.A.*** (Canada) | 23 | 56029-055-SP | 1 | USE FOR KE125-A4 C.C. | |
*** N.L.A.*** (Canada) | 24 | 56029-056-SP | 1 | USE FOR KE125-A4 C.C. | |
*** N.L.A.*** (Canada) | 25 | 56029-057-SP | 1 | USE FOR KE125-A4 C.C. |
