Parts Diagrams |

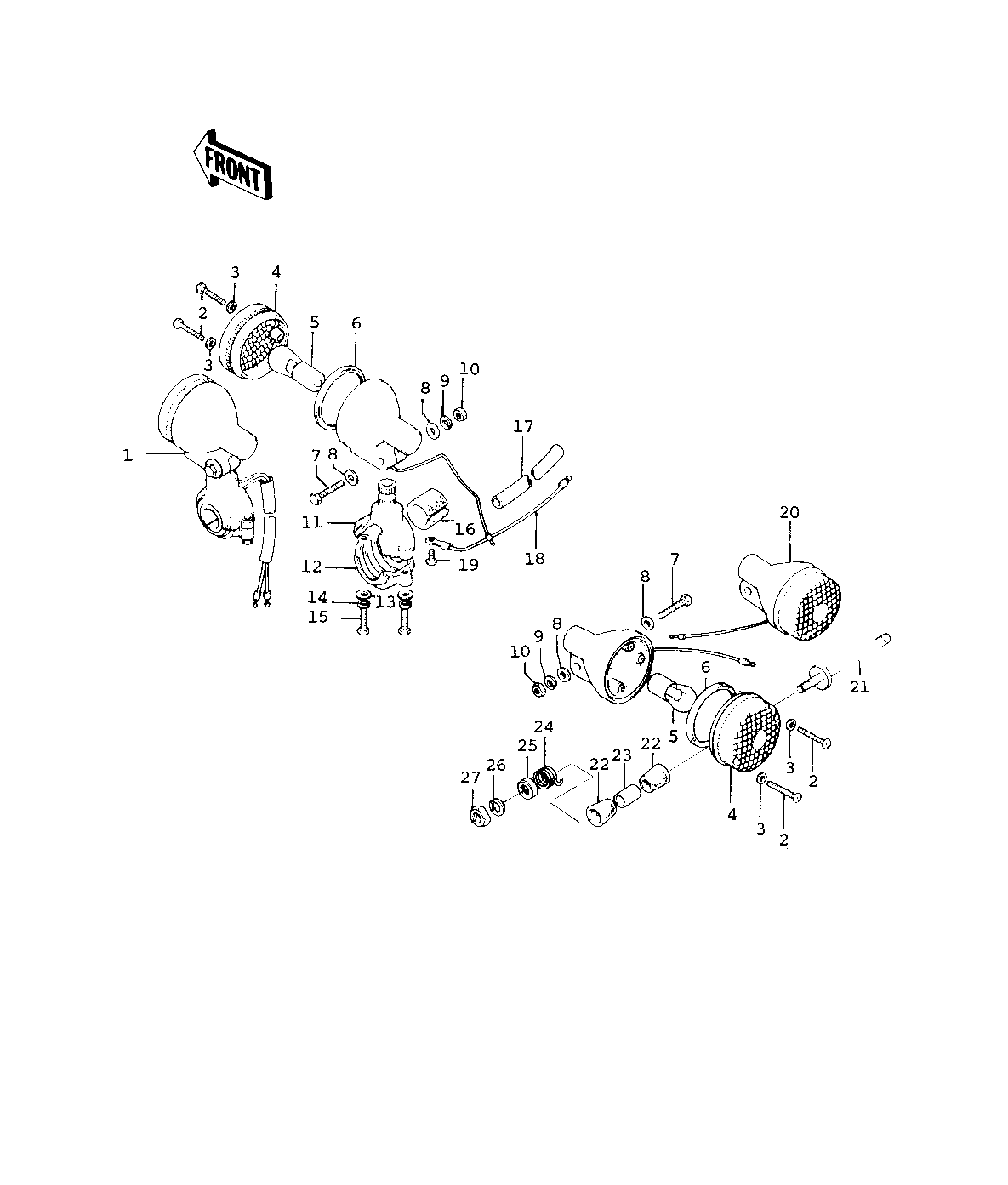

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LAMP ASY-FR TURN SIG | 1 | 23037-005 | 2 | ||
SCREW-PAN HEAD,4X20 | 2 | 220E0420A | 2 | ||
WASHER, PLAIN 4MM | 3 | 23058-002 | 2 | ||
LENS,TURN SIGNAL LAMP | 4 | 23048-1001 | 4 | ||
BULB,6V 21CP | 5 | 92069-056 | 4 | ||
GASKET-SIG LAMP LENS | 6 | 23050-003 | 4 | ||
BOLT-UPSET | 7 | 112G0630 | 4 | ||
WASHER-PLAIN,6MM | 8 | 411D0600 | 8 | ||
WASHER SPRING 6MM | 9 | 461F0600 | 4 | ||
NUT 6MM | 10 | 311B0600 | 4 | ||
BRACKET,FRNT TURN SIG | 11 | 23051-1004 | 2 | ||
BRACKET FRONT TURN SIGNAL UPPER | 12 | 23051-042 | 2 | ||
WASHER-PLAIN,5MM | 13 | 410D0500 | 4 | ||
WASHER SPRING 5MM | 14 | 461F0500 | 4 | ||
BOLT HEX HEAD 5X16 | 15 | 110N0516A | 4 | ||
DAMPER RUBBER | 16 | 23066-003 | 2 | ||
COVER-WIRING HARNESS | 17 | 26009-004 | 2 | ||
WIRE-TURN SIGNAL LEAD | 18 | 26011-061 | 2 | ||
SCREW PAN HEAD 3X5 | 19 | 220B0305A | 2 | ||
LAMP-REAR TURN SIGNAL | 20 | 23040-033 | 2 | ||
BKT,RR SIGNAL LAMP | 21 | 23051-048 | 2 | ||
DAMPER RUBBER | 22 | 92075-148 | 4 | ||
COLLAR 12.7X17.3X30 | 23 | 92027-168 | 2 | ||
SPRING | 24 | 92081-111 | 2 | ||
WASHER CUP 12.5X35X4T | 25 | 92022-235 | 2 | ||
WASHER SPRING 12MM | 26 | 461F1200 | 2 | ||
WASHER SPRING 12MM | 26 | 461F1200 | 2 |
