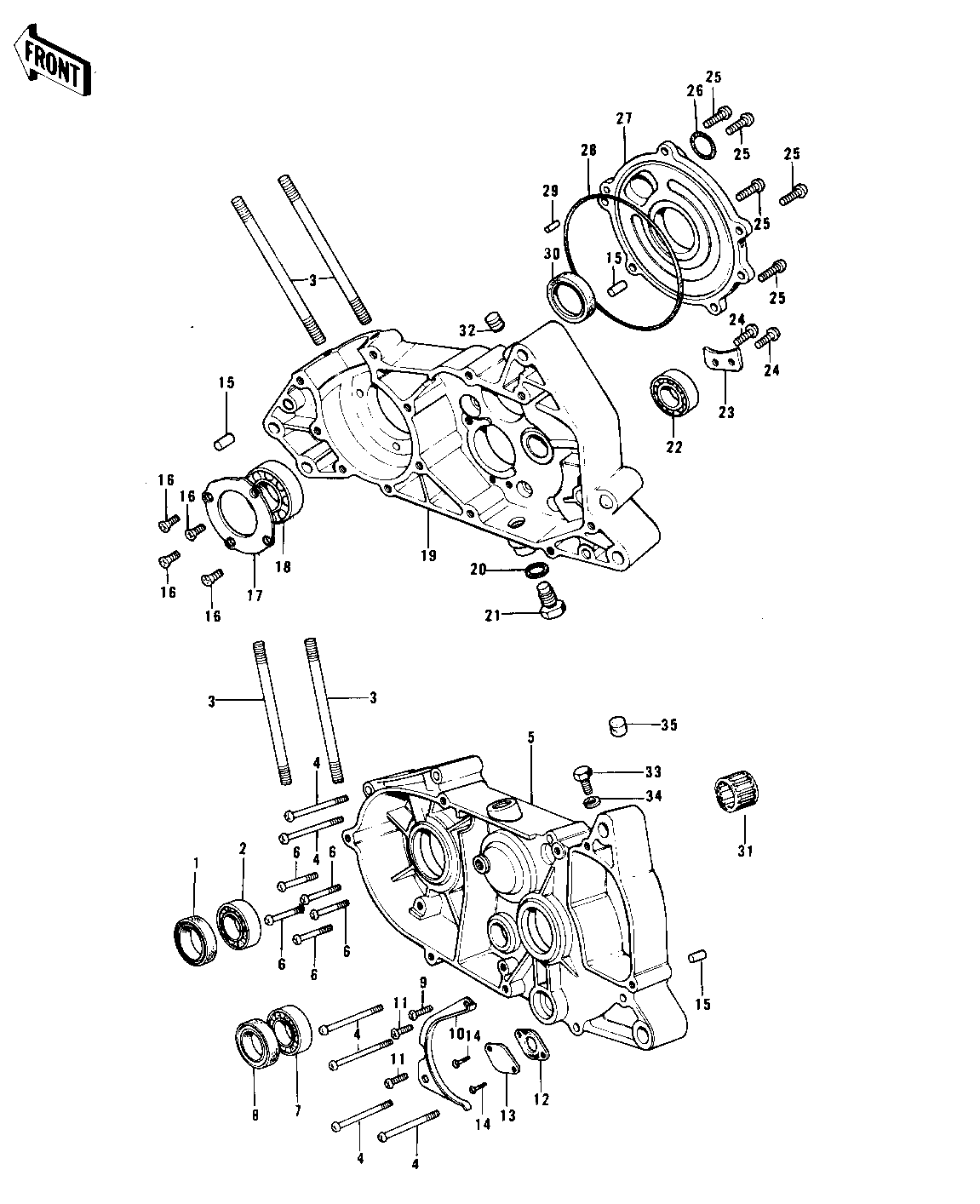

1975 KX125-A - CRANKCASE ('74-'76 KX125/A/A3)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SEAL-OIL | 1 | 92049-1240 | |||
BEARING BALL #6204 | 2 | 601B6204 | |||
STUD,8X70 | 3 | 172G0870 | |||
SCREW PAN HEAD 6X60 | 4 | 220B0660 | |||
SET-CRANKCASE,F.BLACK | 5 | 14001-5149 | |||
SCREW PAN HEAD 6X40 | 6 | 220B0640 | |||
BEARING BALL #6004 | 7 | 601B6004 | |||
OIL SEAL SC25376 | 8 | 92050-013 | |||
SCREW PAN HEAD 6X25 | 9 | 220B0625 | |||
GUIDE,CHAIN | 10 | 14077-003 | |||
SCREW PAN HEAD 6X12 | 11 | 220B0612 | |||
GASKET,OIL PUMP | 12 | 11060-1160 | |||
PLUG-OIL PUMP-HOLE | 13 | 92084-004 | |||
SCREW PAN HEAD 5X10 | 14 | 220B0510 | |||
PIN,DOWEL,10X8.2X14 | 15 | 92043-1037 | |||
SCREW CNTSNK HD 6X16 | 16 | 221B0616 | |||
PLATE,CRANK BEARING | 17 | 14014-028 | |||
BEARING BALL #6304 | 18 | 601B6304 | |||
CRANKCASE,R.H.,BLACK | 19 | 14002-1040-21 | |||
GASKET-DRAIN PLUG | 20 | 92065-073 | |||
PLUG | 21 | 92066-1240 | |||
BEARING BALL #6203 | 22 | 601B6203 | |||
PLATE,MISSION BERNG | 23 | 14014-029 | |||
SCREW PAN HEAD 6X12 | 24 | 220B0612 | |||
SCREW PAN HEAD 6X20 | 25 | 220B0620 | |||
"O" RING,28MM | 26 | 670B3028 | |||
COVER,ROTARY DISC VLV | 27 | 14019-050 | |||
"O" RING,VALVE COVER | 28 | 92055-057 | |||
PIN DOWEL 5X12 | 29 | 610A0512 | |||
SEAL-OIL | 30 | 92049-1250 | |||
BEARING,NEEDLE | 31 | 92046-043 | |||
RUBBER PLUG | 32 | 92074-035 | |||
BOLT SMALL | 33 | 114G0812 | |||
WASHER PLAIN 8MM | 34 | 410B0800 | |||
DAMPER RUBBER | 35 | 92075-075 |
