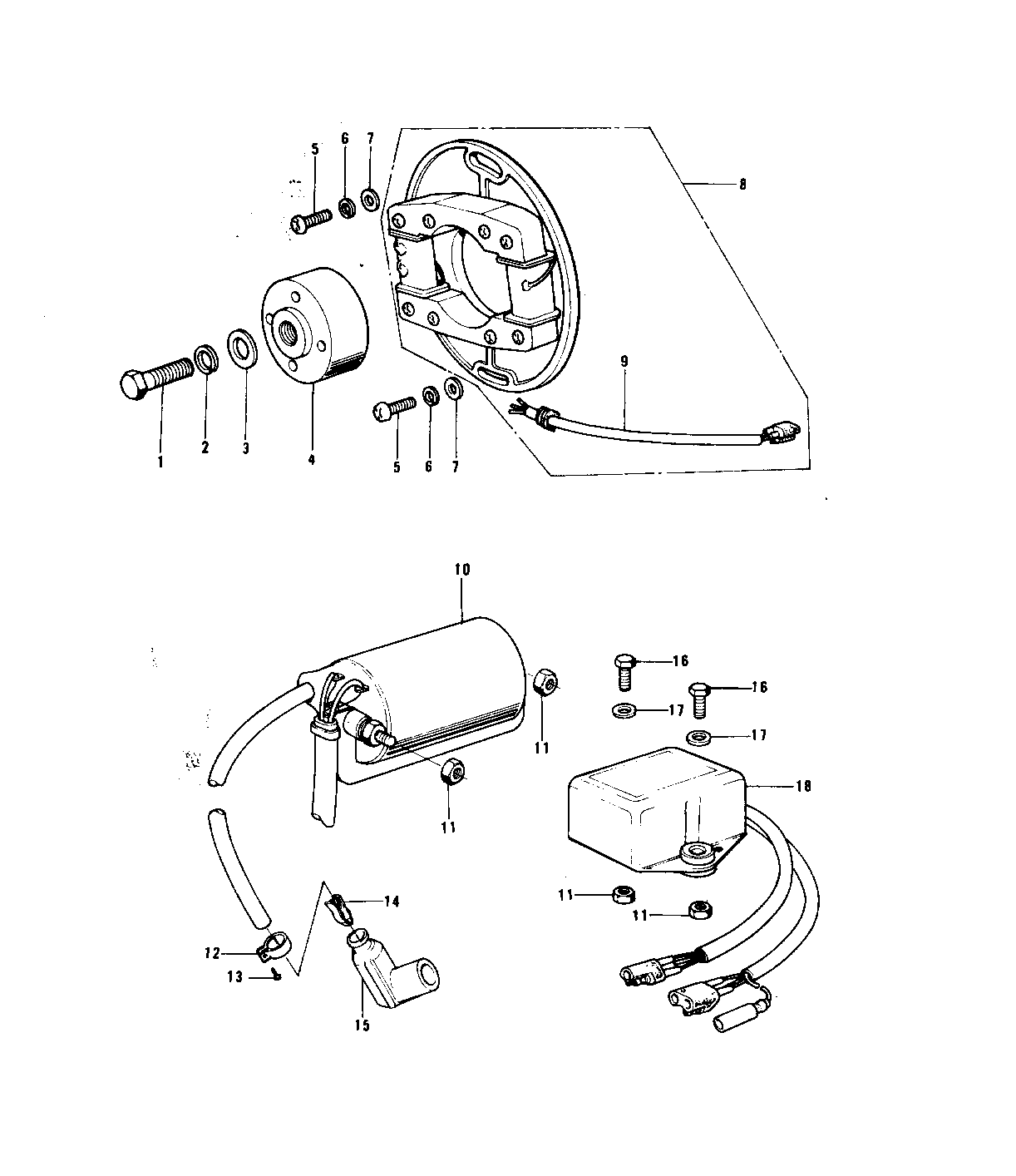

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT 1 92001-1578
WASHER SPRING 8MM 2 461F0800
WASHER,PLAIN,8MM 3 92022-276
ROTOR,MAGNETO 4 21007-026
SCREW PAN HEAD 6X25 5 220B0625
WASHER SPRING 6MM 6 461F0600
WASHER PLAIN 6MM 7 410B0600
STATOR ASSY 8 21003-020
WIRING HARNESS,MAGNET 9 21029-027
COIL,IGNITION 10 21121-070
NUT,6MM 11 92019-019
CLAMP,SPARK PLUG CAP 12 92037-1173
SCREW-PAN-CROS 13 220B0310
TERMINAL,PLUG CAP 14 21169-001
CAP,SPARK PLUG 15 21130-1006
BOLT-UPSET 16 112G0618
WASHER PLAIN 17 92022-024
IGNITION UNIT 18 21119-018
