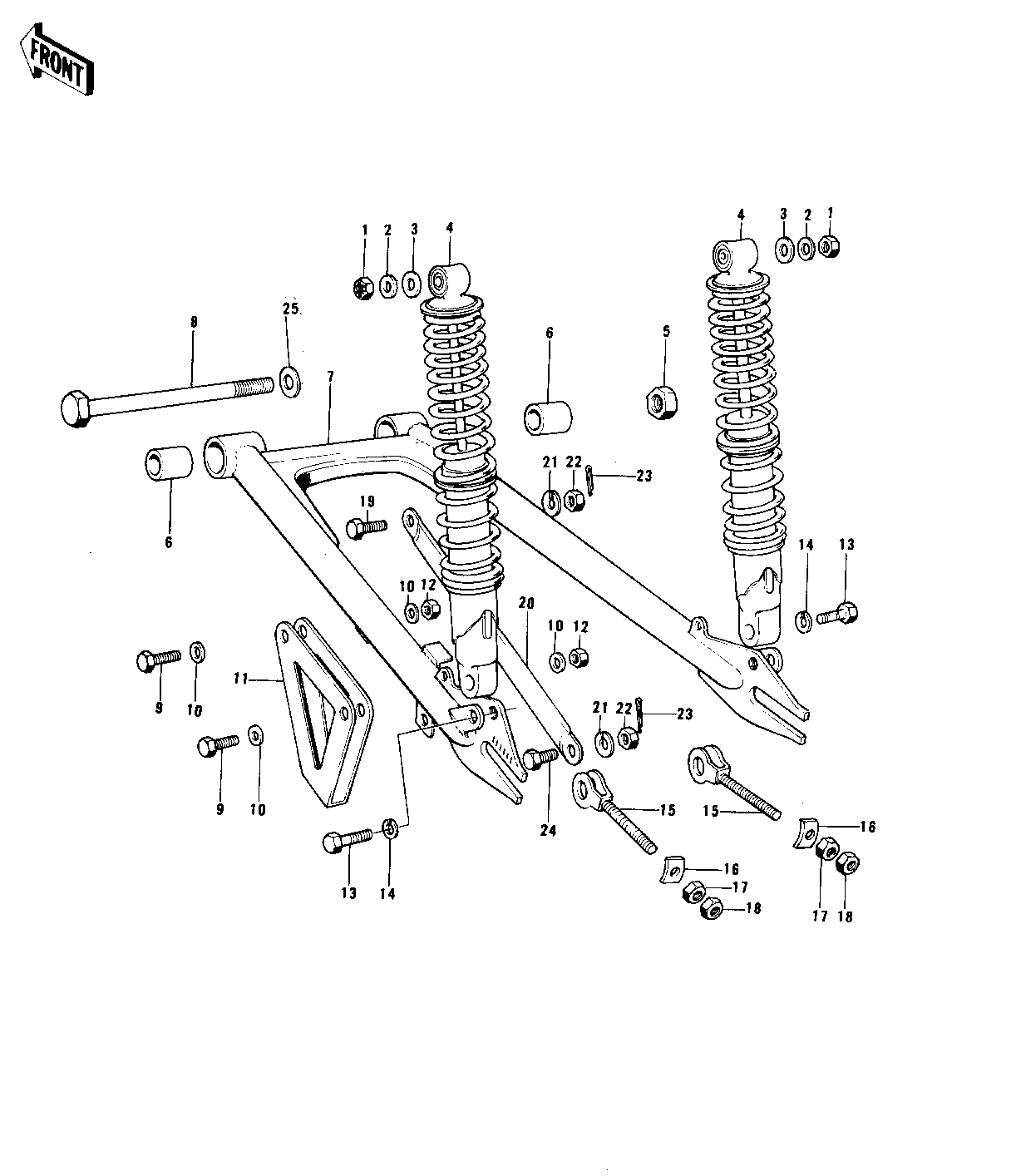

1975 KX125-A - SWING ARM/SHOCK ABSORBERS ('74-'76 KX125
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT,10MM | 1 | 92019-016 | |||
WASHER-PL-10.5X26X2.3 | 2 | 92022-044 | |||
WASHER PLAIN 12MM | 3 | 410B1200 | |||
SHOCK ABSBR RR | 4 | 45014-099 | |||
NUT,12MM | 5 | 92019-017 | |||
BUSHING,SWING ARM | 6 | 33033-012 | |||
SWING ARM | 7 | 33001-072 | |||
SHAFT-SWING ARM PIVOT | 8 | 33032-034 | |||
BOLT-UPSET | 9 | 112G0645 | |||
WASHER 6.5X20X1.6T | 10 | 92022-125 | |||
GUARD,CHAIN | 11 | 55020-015 | |||
NUT,6MM | 12 | 92019-019 | |||
BOLT HEX HEAD 10X35 | 13 | 113N1035 | |||
WASHER SPRING 10MM | 14 | 461F1000 | |||
ADJUSTER,CHAIN | 15 | 33040-057 | |||
PLATE-CHAIN ADJUSTER | 16 | 33041-002 | |||
NUT,8MM | 17 | 311B0800 | |||
NUT,8MM | 18 | 92019-018 | |||
BOLT,HEX HEAD,AX24 | 19 | 92003-143 | |||
TORQUE LINK,REAR BRK | 20 | 43007-039 | |||
WASHER SPRING 8MM | 21 | 461F0800 | |||
NUT,8MM | 22 | 320B0800 | |||
PIN COTTER 2.0X20 | 23 | 550D2020 | |||
BOLT,RR TORQUE LINK | 24 | 92003-144 | |||
WASHER PLAIN 12MM | 25 | 410B1200 | KX125A-3 |
