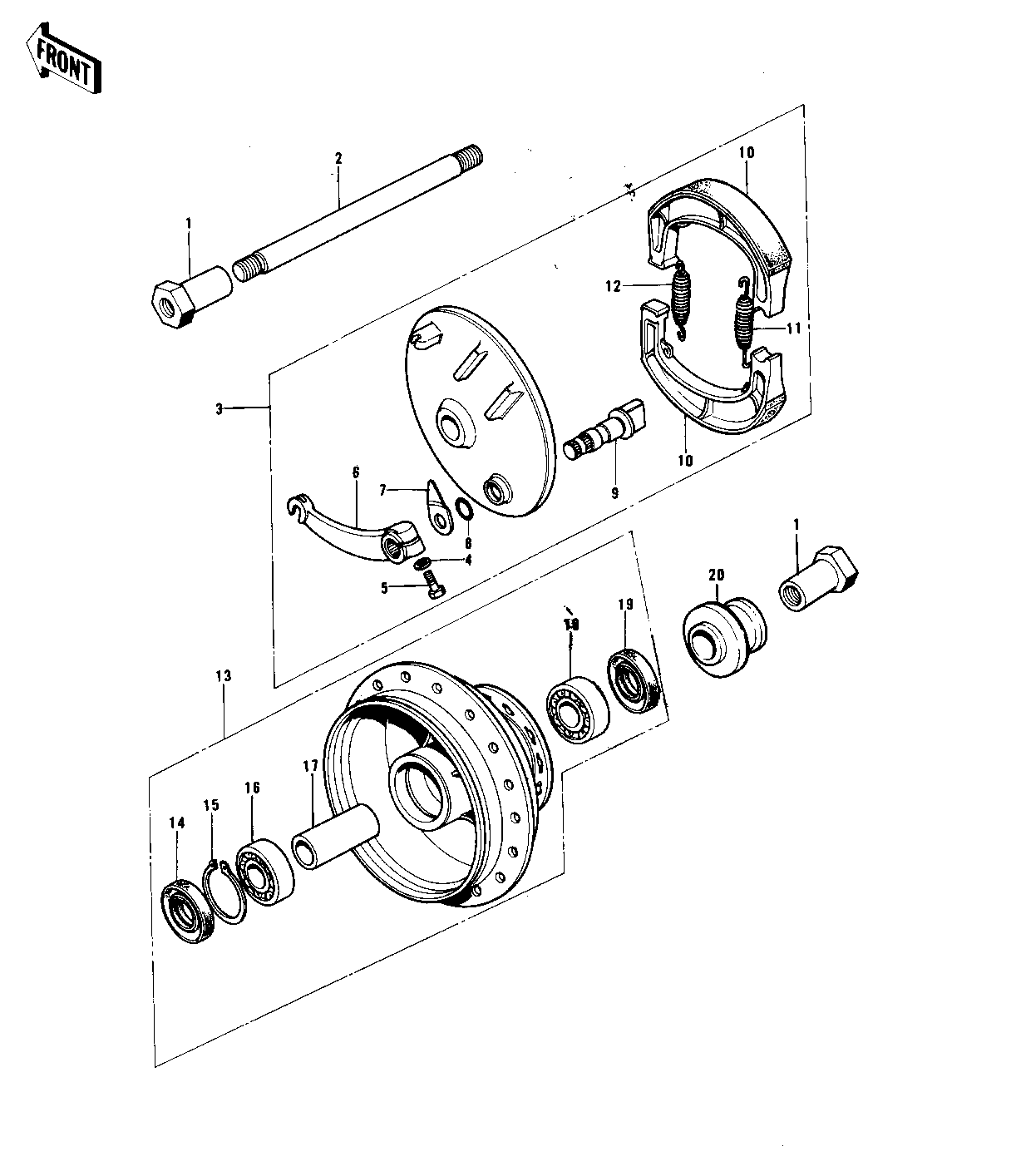

1975 KX125-A - FRONT HUB/BRAKE ('74-'76 KX125/A/A3)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COLLAR,FRONT AXLE | 1 | 41069-024 | |||
AXLE,FRONT | 2 | 41068-043 | |||
PANEL ASY,FR BK,BLACK | 3 | 41035-049-21 | FLAT BLACK | ||
PANEL-ASY,FR BRK | 3 | 41035-077-21 | FLAT BLACK | ||
WASHER PLAIN 6MM | 4 | 410B0600 | |||
BOLT 6X22 | 5 | 112B0622 | |||
LEVER,FRNT BRAKE CAM | 6 | 41053-020 | |||
INDICATOR,FR BRK PNL | 7 | 41085-002 | |||
"0" RING,11MM | 8 | 92055-004 | |||
CAM SHAFT,FRONT BRAKE | 9 | 41050-012 | |||
SHOE,BRAKE | 10 | 41048-015 | |||
SPRING,BRAKE SHOE | 11 | 92081-1766 | |||
SPRING,BRAKE SHOE | 12 | 92081-1550 | |||
DRUM ASY,FR BK,BLACK | 13 | 41034-031-21 | FLAT BLACK | ||
OIL SEAL,FR BK DRUM | 14 | 92050-059 | |||
CIRCLIP.37MM | 15 | 481J3700 | |||
BEARING BALL #6301 | 16 | 601B6301 | |||
SPACER,FR HUB BEARING | 17 | 41039-025 | |||
BEARING BALL #6201 | 18 | 601B6201 | |||
UNAVAILABLE IN PRICE BOOK | 19 | 654A103208 | |||
COLLAR,FRONT AXLE | 20 | 41069-025 |
