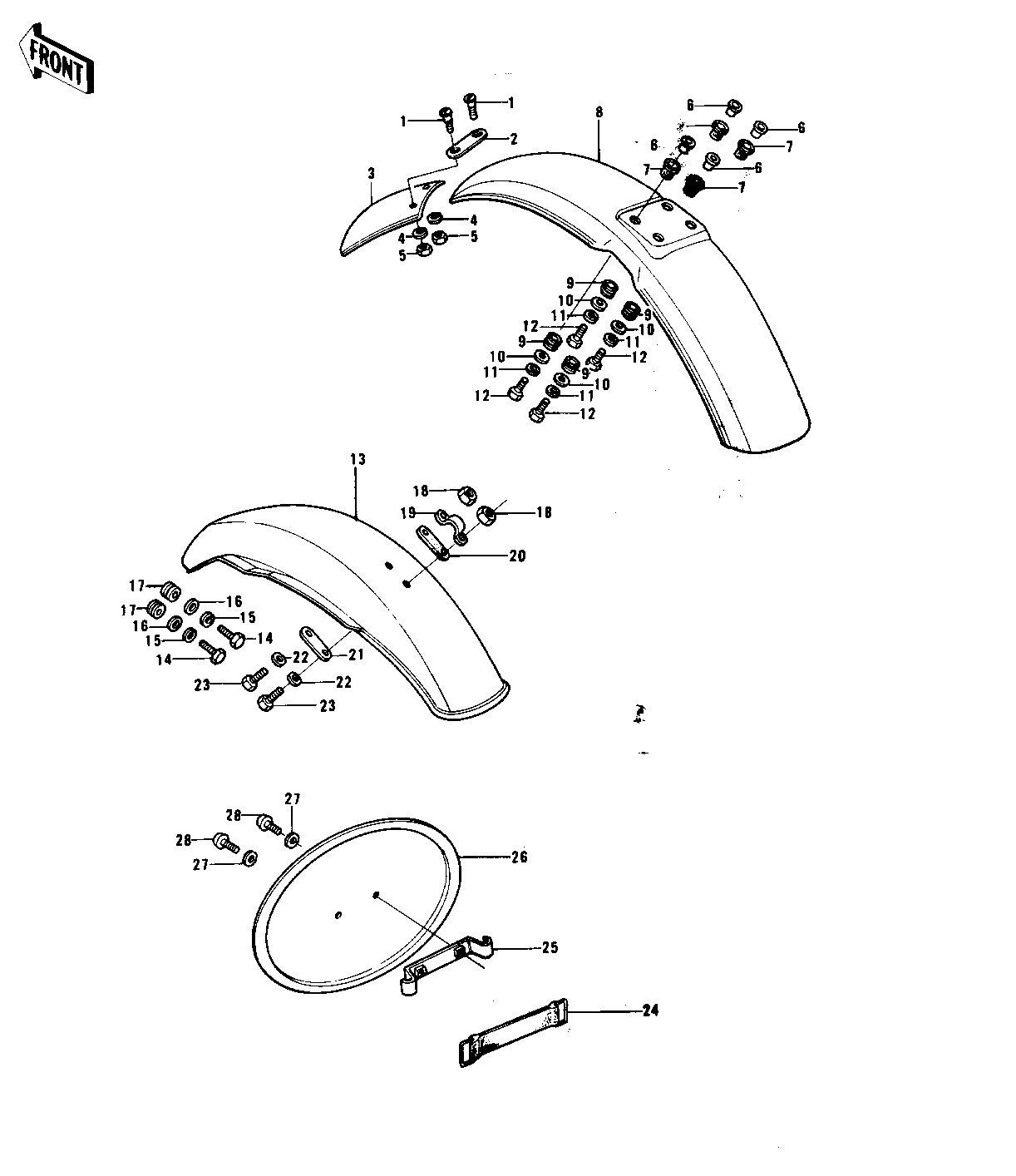

1975 KX125-A - NUMBER PLATE/FENDERS ('74-'76 KX125/A/A3

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,5X12 1 92001-134
PLATE,FENDER FLAP 2 35020-012
FLAP,FRONT FENDER 3 35019-005
WASHER SPRING 5MM 4 461F0500
NUT,5MM 5 311B0500
COLLAR 6 92027-194
DAMPER RUBBER 7 92075-103
FENDER-FR 8 35004-093
FENDER-FR,BLACK 8 35004-093-10 BLACK
DAMPER RUBBER,RR FEND 9 92075-121
WASHER 6.5X20X1.6T 10 92022-125
WASHER,PLAIN,7MM 10 92022-228
WASHER SPRING 6MM 11 461F0600
BOLT-UPSET 12 112G0625
FENDER-RR,BLACK 13 35022-147-10
FENDER-RR,BLACK 13 35022-147-10 BLACK
BOLT-UPSET 6X14 14 112B0614
WASHER SPRING 6MM 15 461F0600
COLLAR 16 92027-122
DAMPER RUBBER 17 92075-118
NUT,6MM 18 92019-019
BRACKET,REAR FENDER 19 35025-027
DAMPER RUBBER,FENDER 20 92075-245
PLATE,REAR FENDER 21 35041-002
WASHER PLAIN 6MM 22 411B0600
BOLT 6X22 23 112B0622
BAND BATTERY 24 92072-006
BRACKET,NUMBER PLATE 25 58030-008
PLATE,FRONT NUMBER 26 58029-026
WASHER 6.5X20X1.6T 27 92022-125
SCREW,6X10 28 92009-1286
